Sw-motech Gpt.06.851.60000/b Urban Abs Topcase System Instruction Manual

SW-MOTECH GPT.06.851.60000/B URBAN ABS To paces System

Product Information

Product Name: ANBAUANLEITUNG

Model Numbers: GPT.06.851.60000/B, GPT.06.851.16000/B,
BC.HTA.00.677.20000/B

Product Usage Instructions

1.  Ensure that you have all the necessary tools and equipment before starting the installation process.
2.  Identify the appropriate model number for your specific application.
3. Carefully read and understand the installation instructions provided in this manual.
4. Prepare the installation area by clearing any debris or obstructions.
5.  Position the product in the desired location and ensure it is level and secure.
6. Follow the step-by-step installation procedure outlined in the manual, including any specific guidelines or warnings.
7. Use the provided hardware and fittings to securely attach the product to the intended surface.
8. Double-check all connections and fastenings to ensure proper installation.
9. Test the product functionality according to the user manual and verify that it is working correctly.
10. If any issues or concerns arise during installation or operation, refer to the troubleshooting section of the manual or contact our customer support for assistance.

For detailed installation instructions and safety precautions,
please refer to the complete user manual provided with your
product.

 MOUNTING INSTRUCTIONS

Revision: 00 – Datum / Date: 06 – 2021

STREET-RACK

Thank you for choosing this premium product from SW-MOTECH. Please visit our web shop for additional information, such as application charts and PDF mounting instructions. Any other documents that may be required (e.g. ABE certifications), are also available for download at our web shop.
Installation and/or maintenance of this product require good technical understanding! For your own safety SW-MOTECH recommends having installation and/or servicing carried out by a specialist workshop! SW-MOTECH assumes no liability for damage caused by improper installation and/or maintenance work!
Carefully follow all the directions given in the mounting instructions and pay attention to all relevant information in the vehicle manual during assembly. Nonconformance can lead to vehicle damage or even endanger the driver! These mounting instructions are written based on our current state of knowledge. Legal requirements for accuracy do not exist.
This product was developed for vehicles in their factory setting. Compatibility with original accessory parts or other manufacturers’ accessory parts is not guaranteed. Furthermore, BEFORE installing this product, make sure that all moving parts (e.g. the chain) are in the original state of maintenance. Installed accessories can change the driving behavior and/or stability of your vehicle.

GENERAL INFORMATION
Observe the country-specific regulations concerning vehicle registration/ operation as well as TUV regulations if applicable. If required, register installed parts in the vehicle documents through an appropriate inspection authority.

• PREPARATION: Read the mounting instructions carefully and make sure that all items of the parts list are included. Make sure that your vehicle is parked safely and cannot fall over. Turn off the engine and remove the ignition key. Let the motor/exhaust cool off if necessary. Disconnect the vehicle battery when working on the electrical system. Use appropriate tools. Have another person to help you.
• MOUNTING: All parts and connections removed from the vehicle must be reinstalled in accordance with the vehicle manufacturers· specifications or replaced by parts delivered by SW-MOTECH. Secure all threads, unless otherwise specified, with medium-strength liquid thread locker.
  Torque specifications undefined by SW-MOTE CH must be obtained from the vehicle manufacturer or by a specialist workshop!
• FUNCTION CHECK: After installation make sure that all parts and connections previously removed are properly replaced. Also make sure that no moving parts are obstructed and no function of the vehicle is hindered in any way. Cables and hoses must not rub and/or be pinched. Before starting to ride, perform a comprehensive check of all functions. After the first 50 km and then at regular intervals, check the tightening torque of all screw connections and the proper fit of the product.

PRODUCT SPECIFIC INFORMATION

ATTENTION: The indicated maximum load is inclusive the weight of case/luggage and adapter plate! The maximum vehicle load specified by the manufacturer must not be exceeded!

,t sw-mDTECH

SW-MOTECH GmbH & Co. KG
Ernteweg 7-10
35282 Rauschenberg Germany

Tel./ phone+ 49 (0)6425 / 8168 – 050 Fax / fax+ 49 (0)6425 / 8168 – 10

info@sw-motech.com www.sw-motech.com

PARTS LIST

step   SR.NO    ITEM.NO                                             Part                                                   QUANTIY

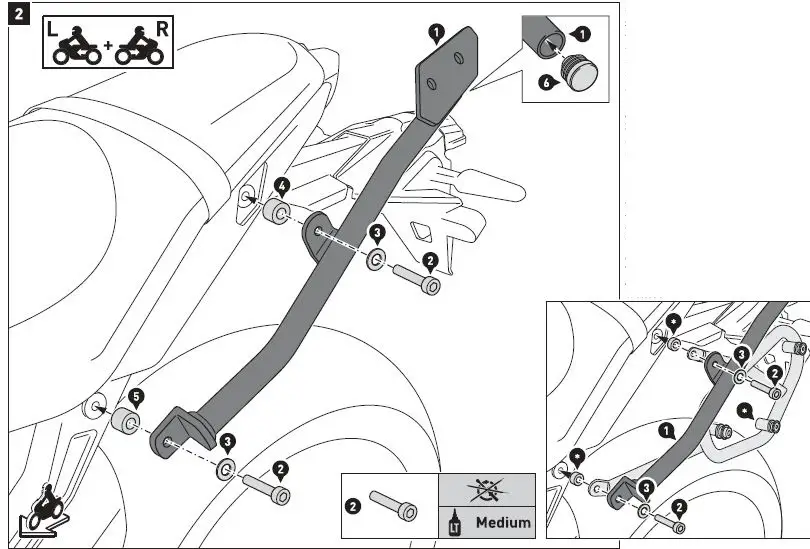

2           1            GPT.06.851.901.01 /902.01           left/ rechts                                                2/2

2          M8 x 40;DIN6912                            short head; black                                       4/4

3          Ill 8,4; DIN 125                                Washer; black                                             4/4

4        0 20 / Ill 8,4 / h 13                          Spacer; height 13 mm                                 2/2

5        0 20 / Ill 8,4 / h 14                          Spacer; height 14 mm                                  2/2

6        KES.RD.210.0300.02.GL              Plastic Plug                                                    2/2

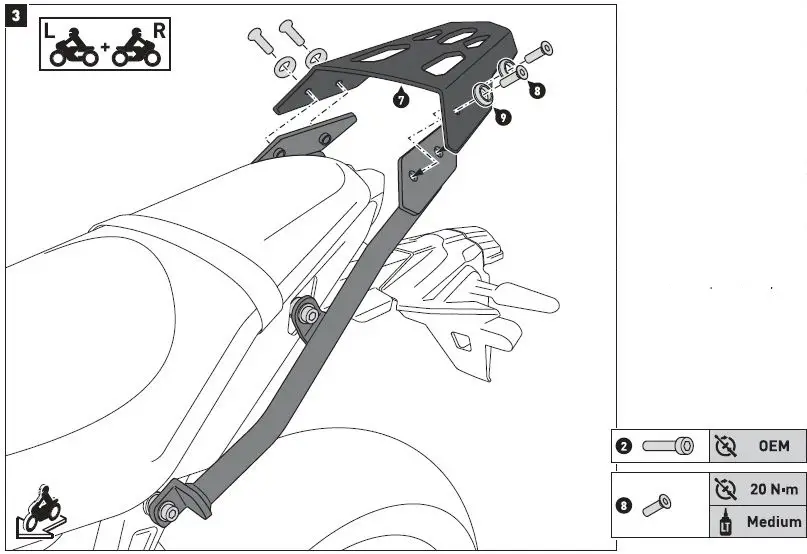

3             7      GPT.00.649.050                                Luggage Rack 1 /1                                        1/1

8      MS x 25; DIN 7991                          Countersunk Screw; black 4 /4 20            4/4

9      !ll 8,4                                                  Countersunk Washer; black                       4/4

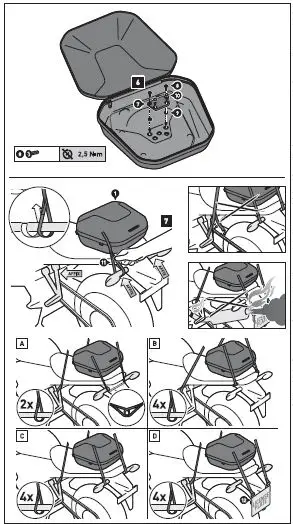

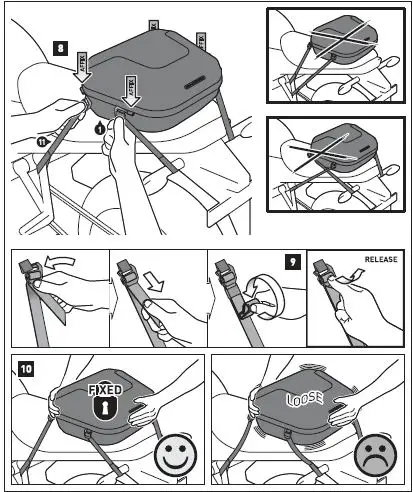

MOUNTING

MOUNTING

Revision: 00 · Datum/ Date: 12 – 2018

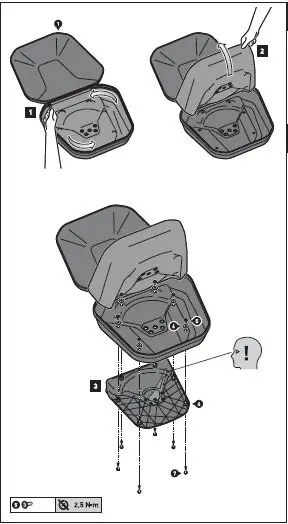

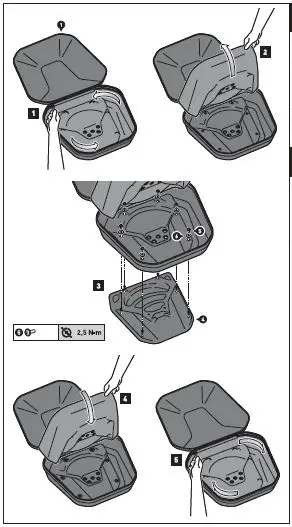

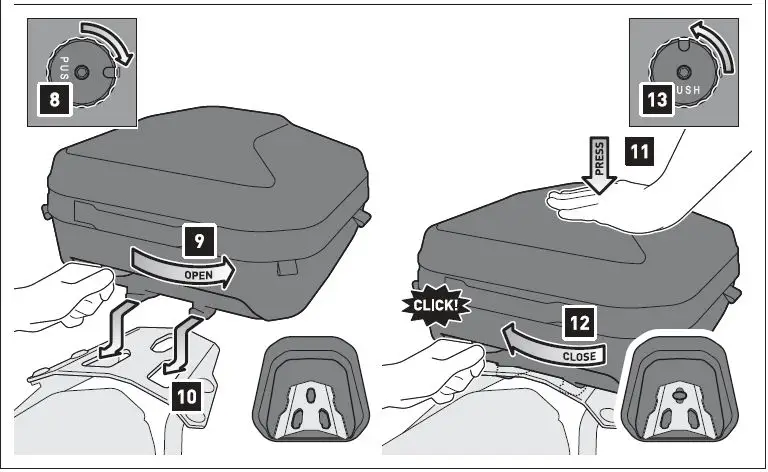

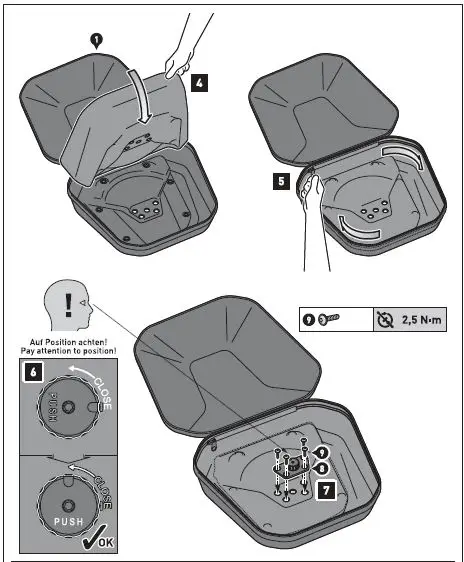

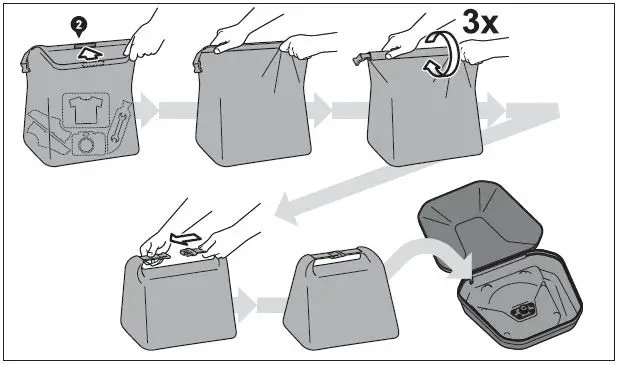

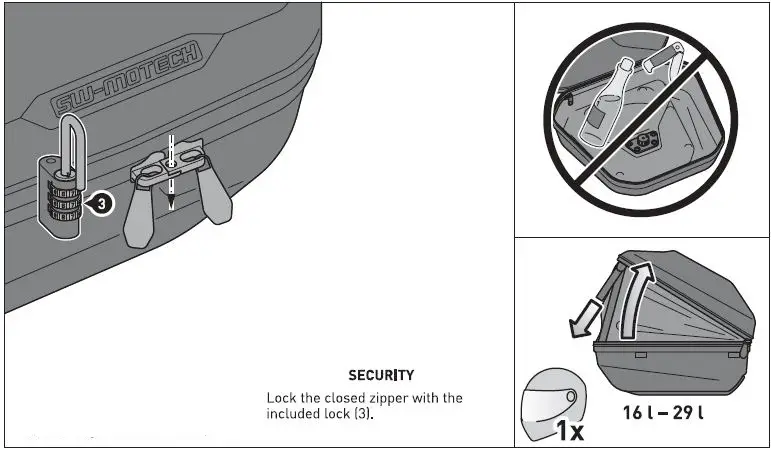

URBAN ABS top case

Thank you for choosing this premium product from SW-MOTECH. Please visit our web shop for additional information, such as application charts and PDF mounting instructions. Any other documents that may be required (e.g. ABE certifications), are also available for download at our web shop.
Installation and/or maintenance of this product require good technical understanding! For your own safety SW-MOTECH recommends having installation and/or servicing carried out by a specialist workshop! SW-MOTECH assumes no liability for damage caused by improper installation and/or maintenance work!
Carefully follow all the directions given in the mounting instructions and pay attention to all relevant information in the vehicle manual during assembly. Nonconformance can lead to vehicle damage or even endanger the driver! These mounting instructions are written based on our current state of knowledge. Legal requirements for accuracy do not exist.
This product was developed for vehicles in their factory setting. Compatibility with original accessory parts or other manufacturers” accessory parts is not guaranteed. Furthermore, BEFORE installing this product, make sure that all moving parts (e.g. the chain) are in the original state of maintenance. Installed accessories can change the driving behavior and/or stability of your vehicle.

GENERAL INFORMATION
Observe the country-specific regulations concerning vehicle registration / operation as well as TUY regulations if applicable. If required, register installed parts in the vehicle documents through an appropriate inspection authority.

• PREPARATION: Read the mounting instructions carefully and make sure that all items of the parts list are included. Make sure that your vehicle is parked safely and cannot fall over. Turn off the engine and remove the ignition key. Let the motor / exhaust cool off if necessary. Disconnect the vehicle battery when working on the electrical system. Use appropriate tools. Have another person to help you.
• FUNCTION CHECK: This is a universal product. For this reason make sure BEFORE the first use, that the product can be fixed properly and used without problems with your vehicle type. After fixation also make sure that no moving parts are obstructed and the function of the vehicle is not hindered in any way. Lamps as taillight and turn signals must not be limited in their function. Cables and hoses must not rub and/or be pinched. Before starting to ride, perform a comprehensive check of all functions.
  PRODUCT SPECIFIC INFORMATION
• ATTENTION: Riding with this product may affect the motorcycles driving and braking performance!
• ATTENTION: Before riding and at each stop (every 200 km) check proper fixation of the product!

ATTENTION: The maximum load of the used SW-MOTECH STREET-RACK / ADVENTURE-RACK must not be exceeded (refer mounting instructions of the rack)! The maximum vehicle load specified by the manufacturer must not be exceeded!

,t sw-mDTECH

SW-MOTECH GmbH & Co. KG
Ernteweg 8/10
35282 Rauschenberg Germany

Tel. I phone+ 49 (0)6425 / 8168 – 050 Fax/ fax+ 49 (0)6425 / 8168 – 10

[email protected] www.sw-motech.com
