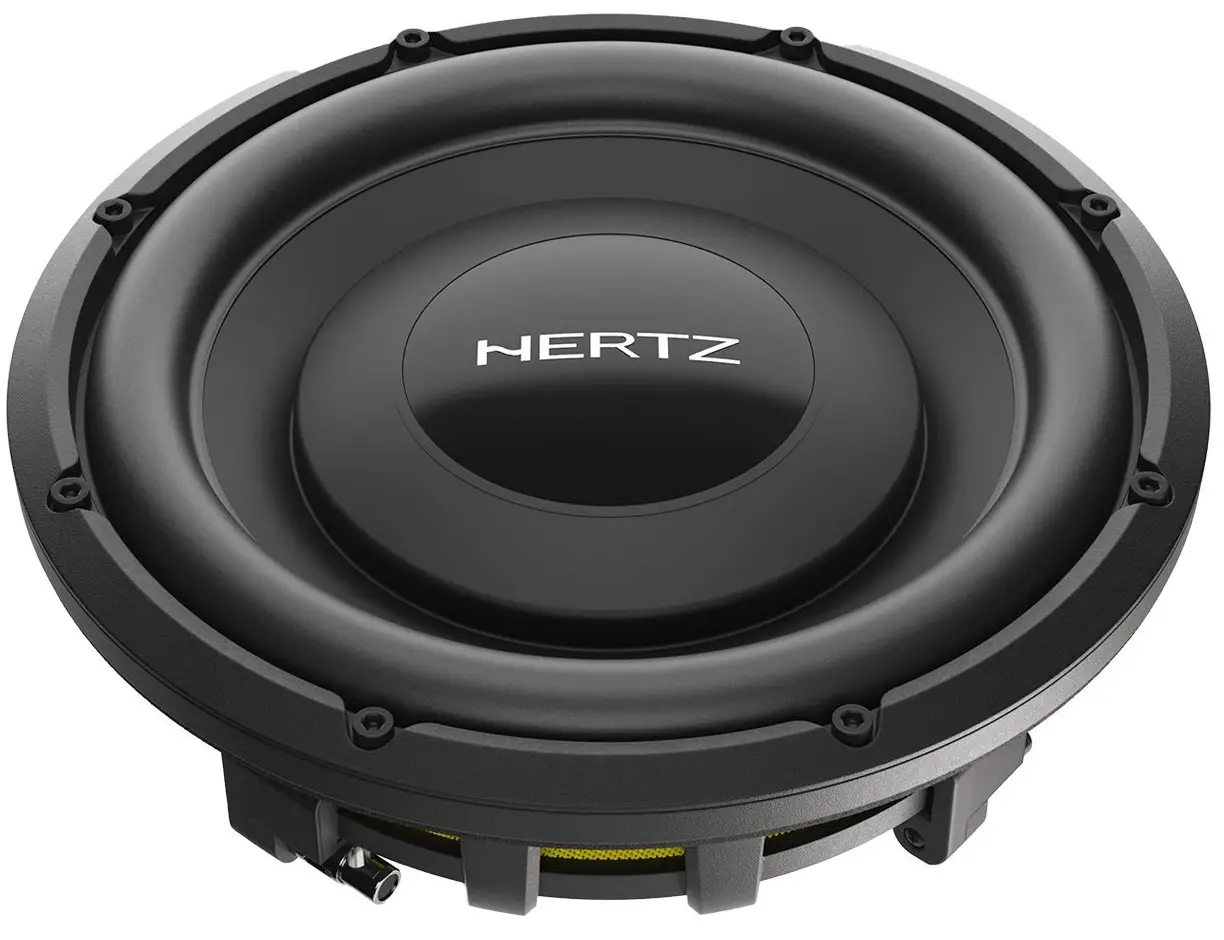

HERTZ MPS 250 S4 Car Audio Systems Owner’s Manual

Hertz Warranty

The Hertz products are warranted, under normal functioning conditions, for the period of time as set by the laws in force, against defects concerning materials or their manufacturing. The warranty is valid from the date of purchase, certified by receipt. The warranty is not valid if:

• the product is damaged by incidents, installations and/or improper use, or by any other causes not depending on materials or manufacturing defects;
•  the product is modified or tampered with by unauthorised people;
• its serial number has been altered or cancelled.

While the product is under warranty, defective parts will be repaired or replaced at the manufacturer’s discretion. The defective product, along with notification about it, must be returned to the dealer from which it was purchased together with the warranty certificate duly filled in. If the product is no longer under warranty, it will be repaired at the current costs. Elettromedia s.r.l. does not undertake any liability for damages due to transportation. Elettromedia s.r.l. does not take any responsibility for: costs or loss of profit due to the impossibility to use the product, other accidentalor consequential costs, expenses or damages suffered by the customer. Warranty according to laws in force.For more information visit the Hertz website.

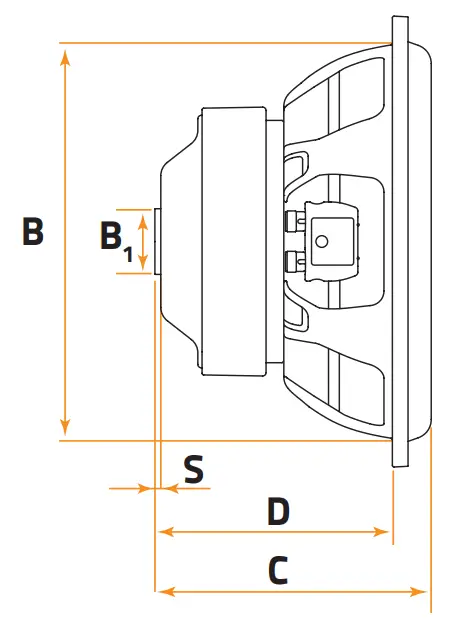

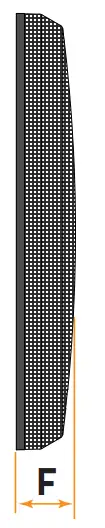

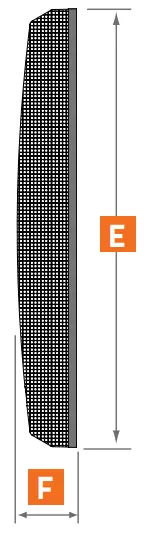

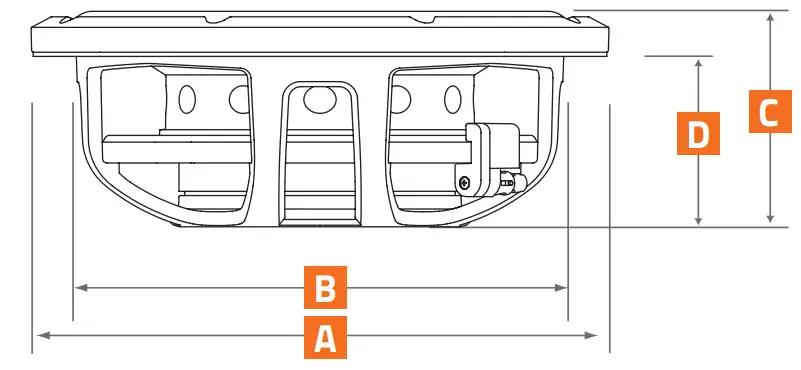

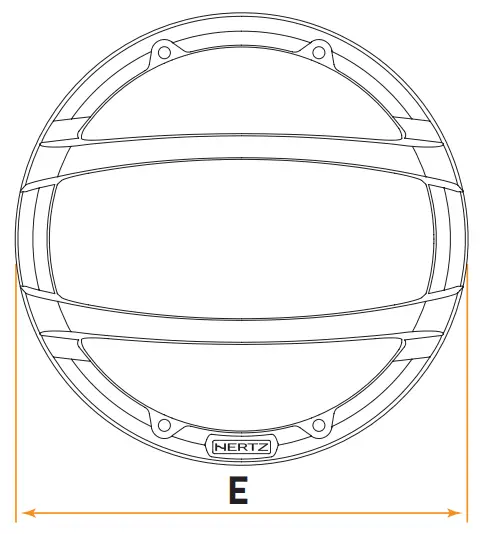

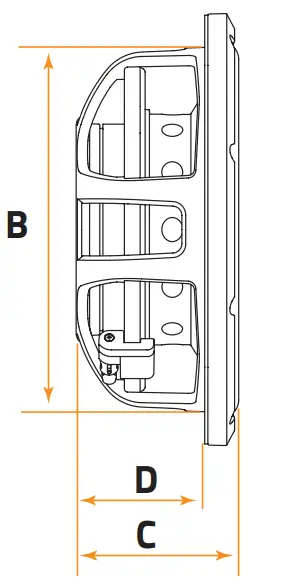

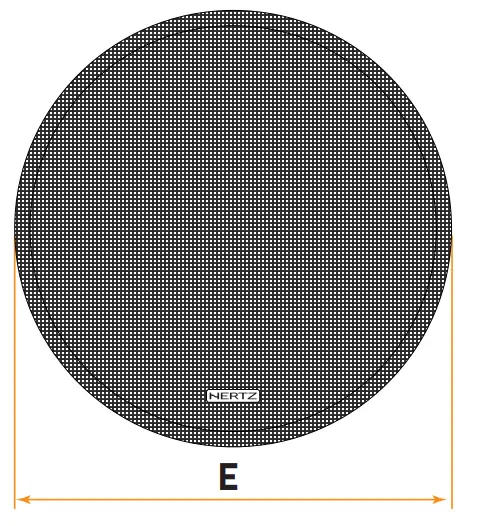

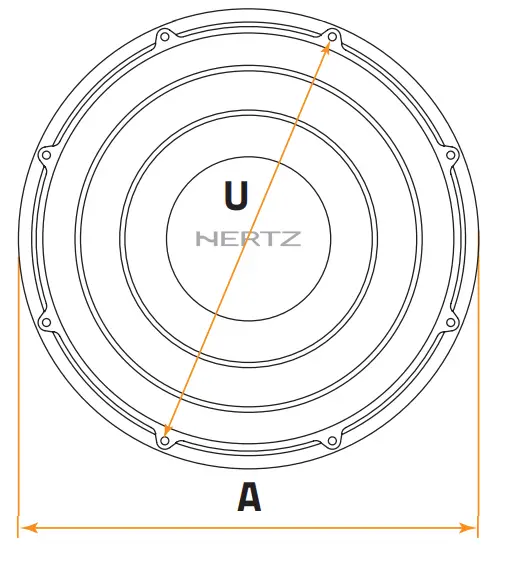

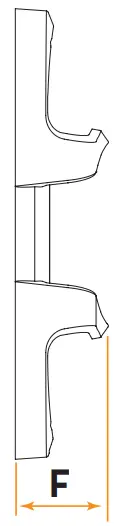

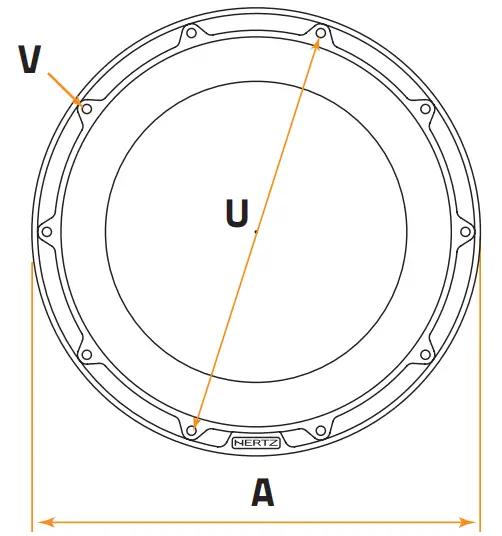

Dimensions

MP 250 D2.3 / MP 250 D4.3 – MP 300 D2.3 / MP 300 D4.3

MPS 250 S2 / MPS 250 S4 – MPS 300 S2 / MPS 300 S4

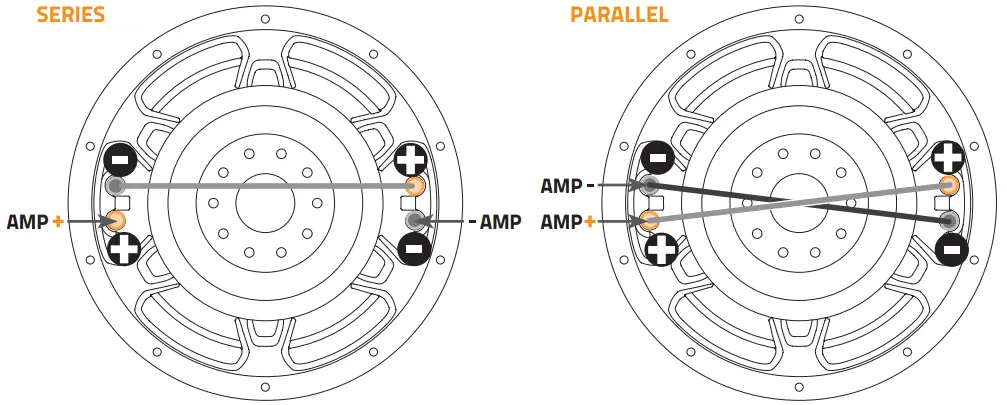

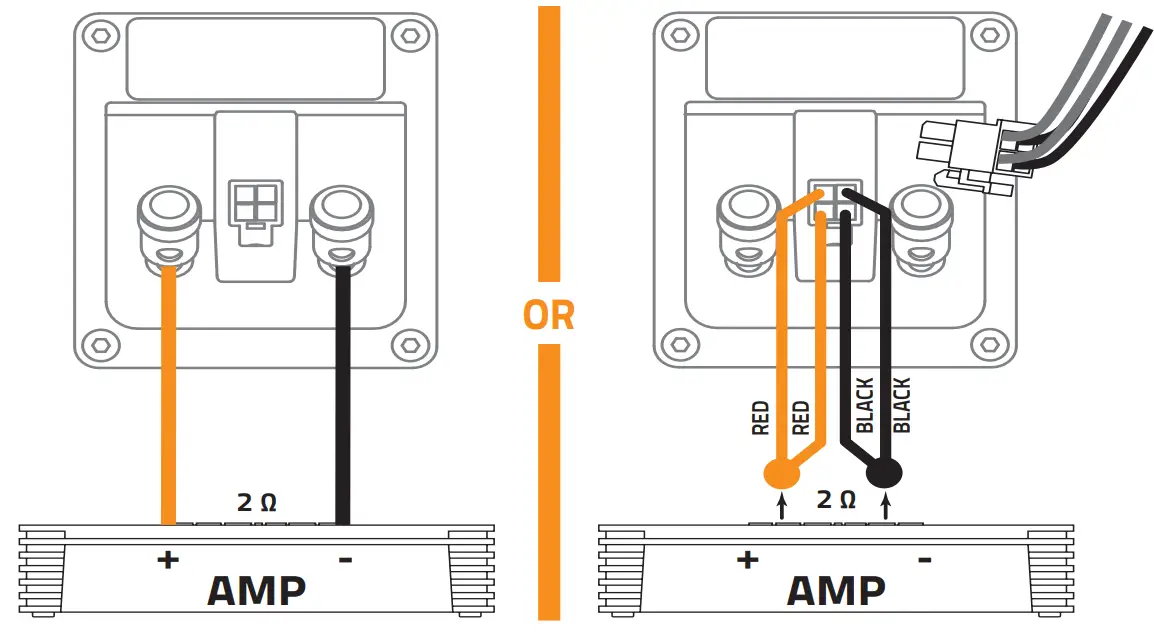

Connections

MPBX 250 S2 / MPBX 300 S2

MPBX 250 S2 / MPBX 300 S2

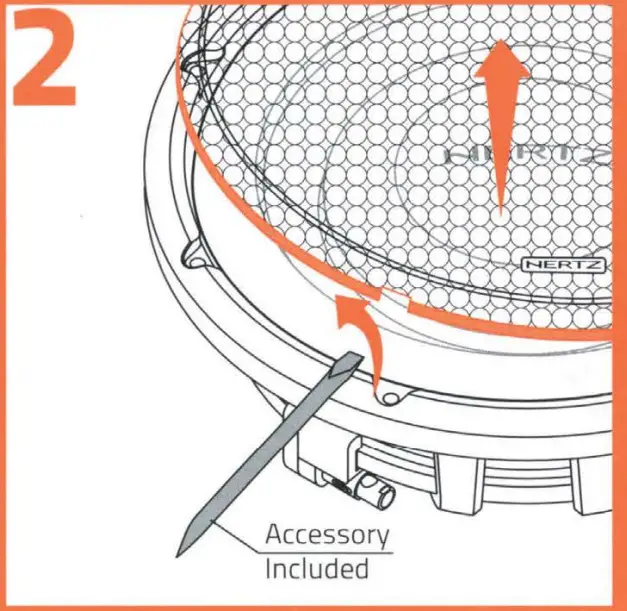

HOW TO REMOVE

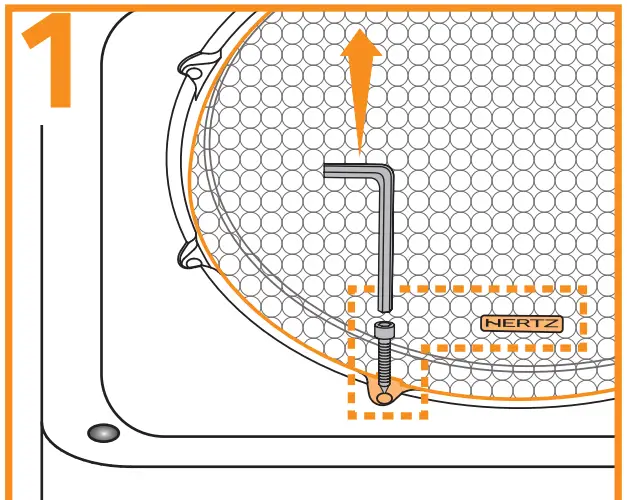

• REMOVE THIS SCREW

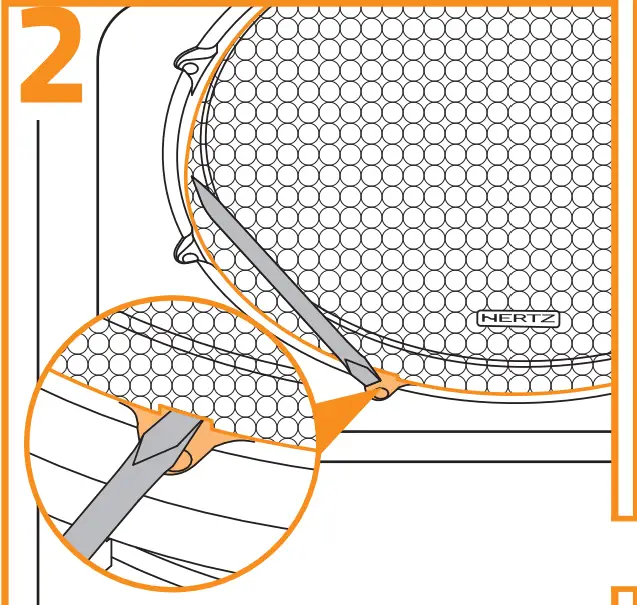

• REMOVE THE MESH

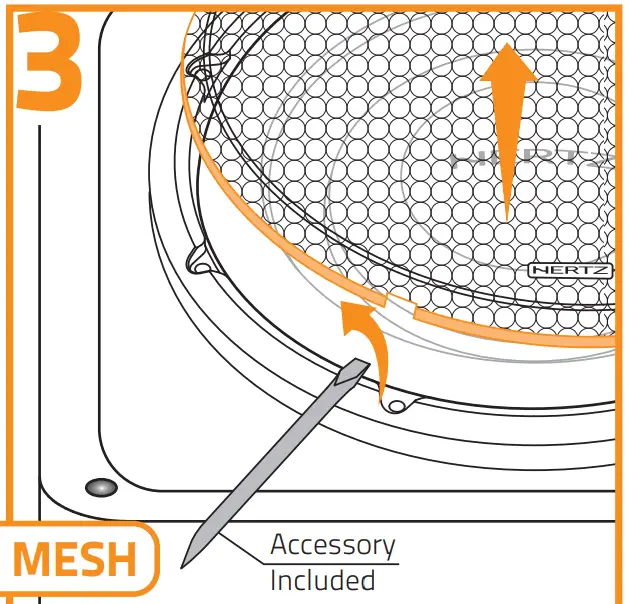

• Accessory Included

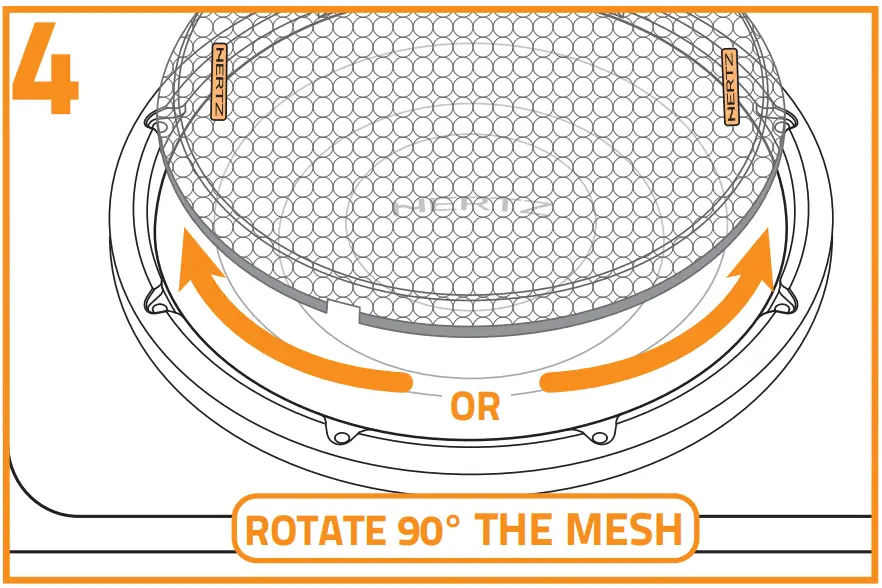

• ROTATE 90° THE MESH

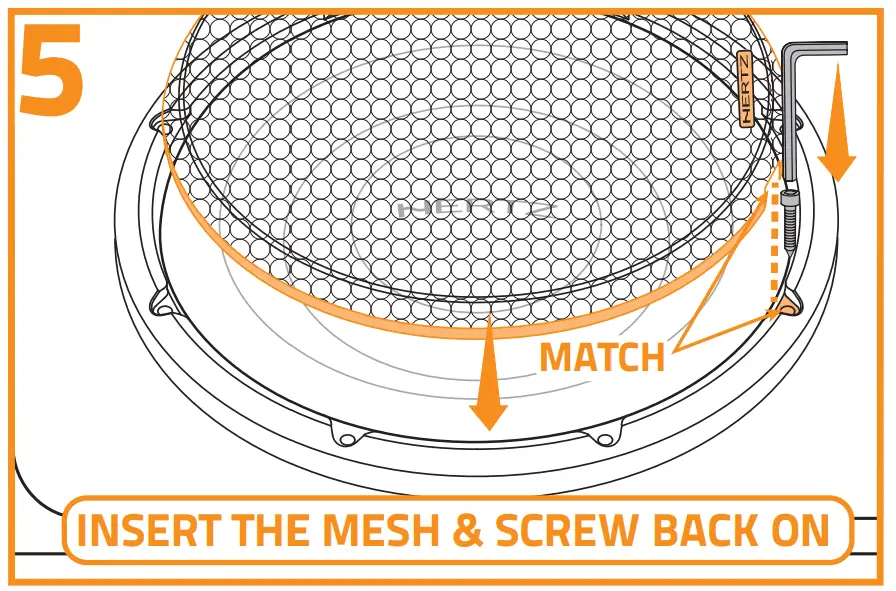

• INSERT THE MESH & SCREW BACK ON

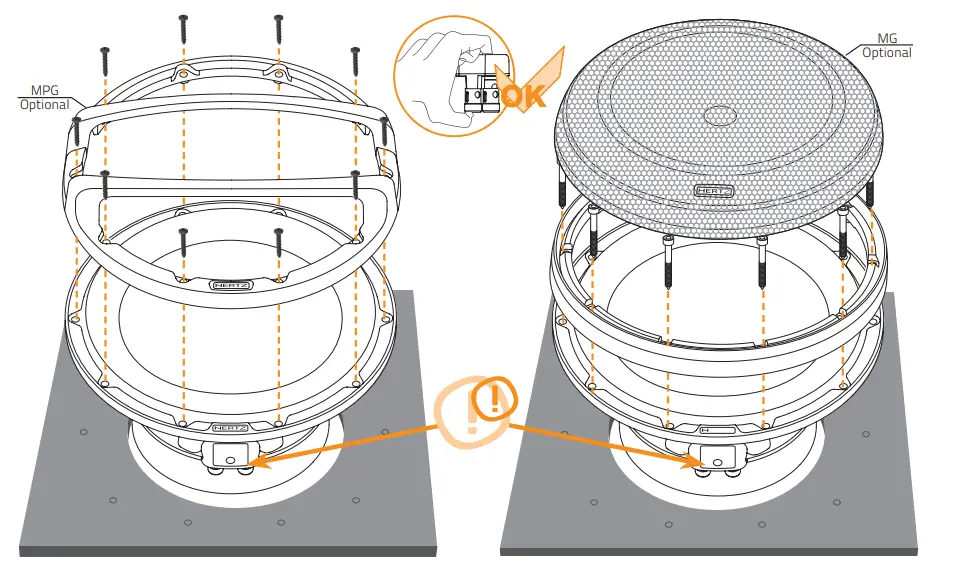

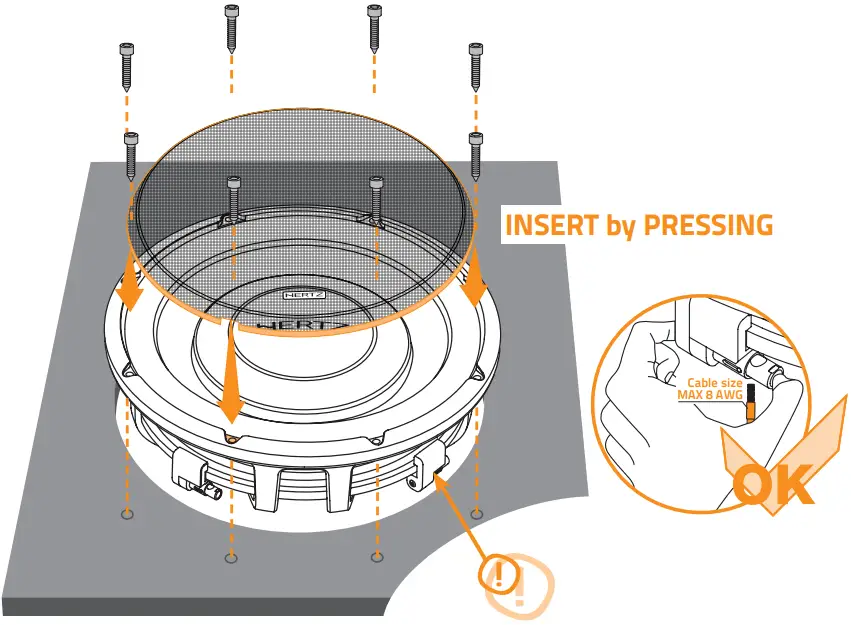

Mounting

Connections

MP 250 D2.3 / MP 250 D4.3 – MP 300 D2.3 / MP 300 D4.3

Mounting

MPS 250 S2 / MPS 250 S4 – MPS 300 S2 / MPS 300 S4

HOW TO REMOVE

WARNING:

Pay attention not to damage the surround.

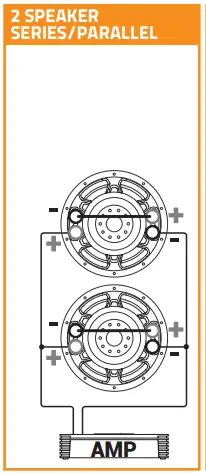

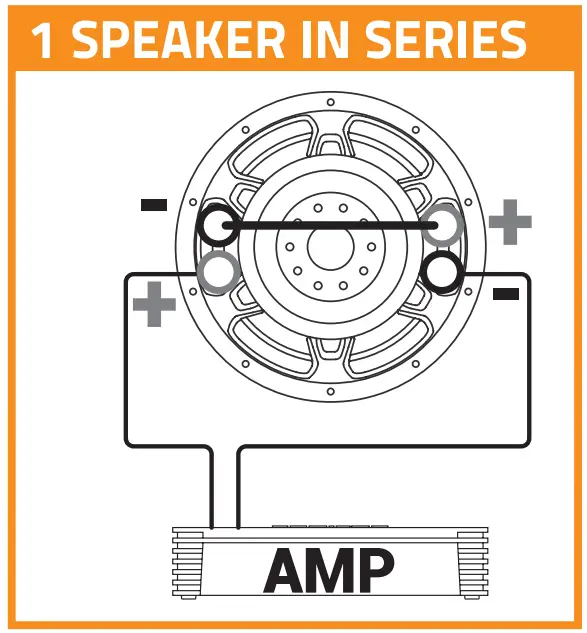

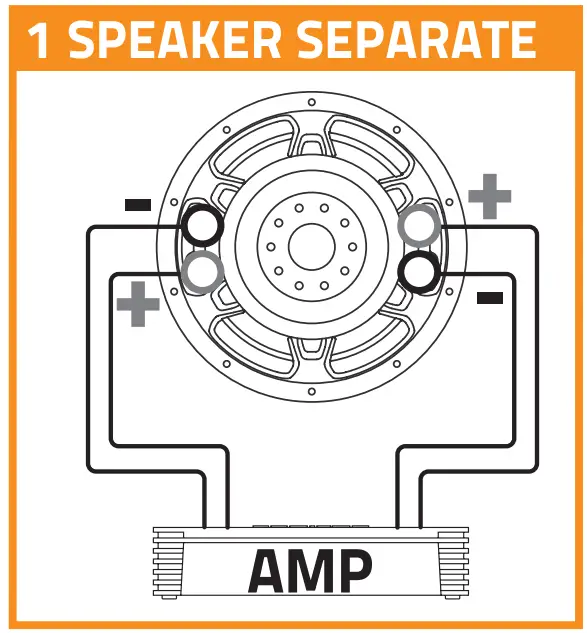

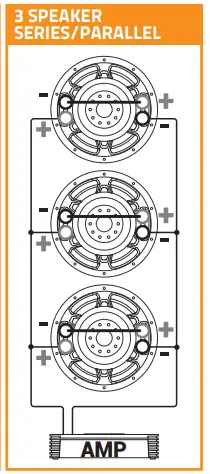

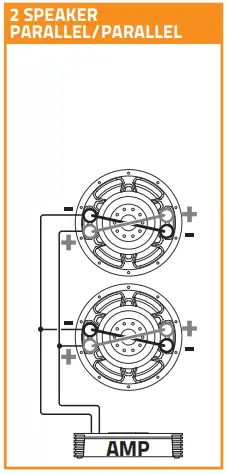

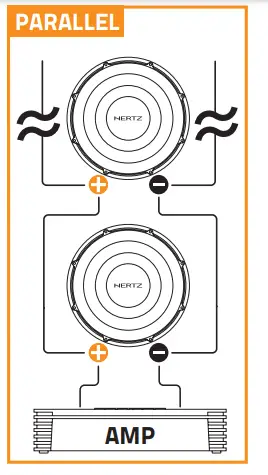

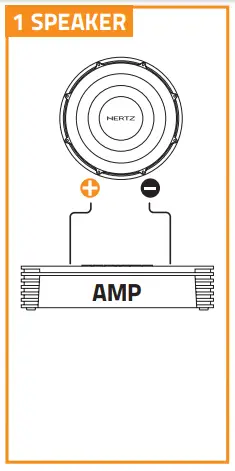

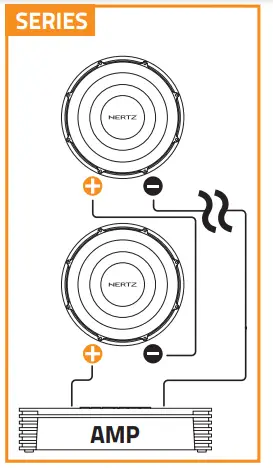

Connections

Technical specifications

ENCLOSURE DESIGN MP

In the following pages the Hertz Tech Team developed Sealed and Reflex designs for MP and MPS subwoofers. They are ready-to-build solutions, including the panel cut list, considering wood thickness 19mm (0.75in.) for MP and 16mm (0.63in.) for MPS series.

The Vb data is the net volume for the enclosure, i.e. it excludes the speaker volume, ports, any internal bracing and any other internal component.

The declared Fb is the actual tuning frequency of the box realized according to the ready-to-build solution. This geometry can not be accurately modeled using lumped parameter based design software, hence those software may produce different results.

• REGULAR

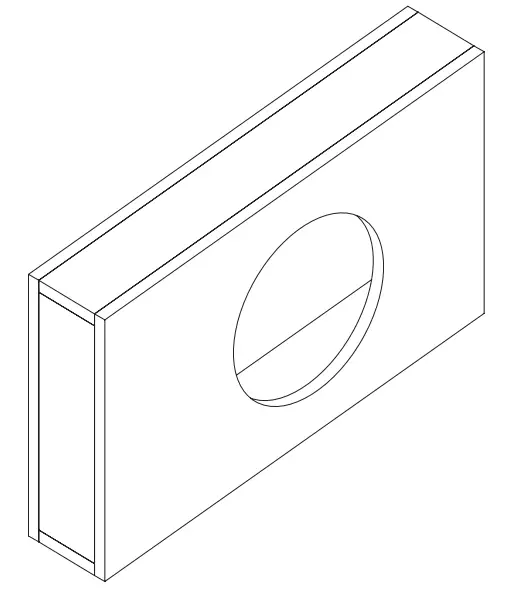

• SHALLOW

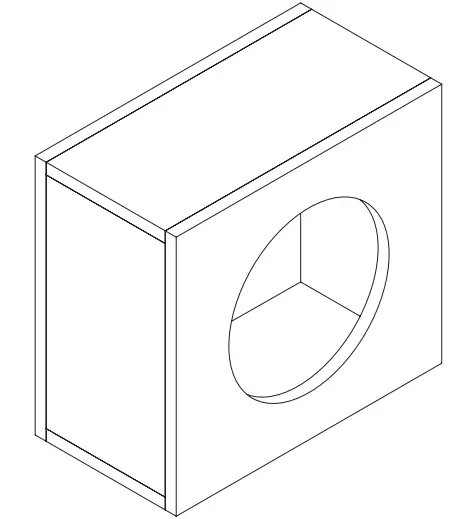

Regular and Shallow variants for MPS series provide the same performance in just a different shape. Regular has the widest application while Shallow is the “solution” where low-depth is a matter.

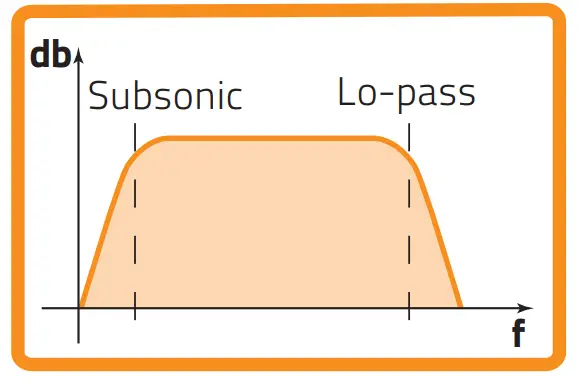

Sealed enclosure designs provide optimally damped response for tight and accurate bass reproduction offering high energy in the range 20Hz-40Hz.

Where a high SPL bass is desired, and space is not a problem, the Reflex designs are the best choice concentrating most of energy in the 40Hz-80Hz range.

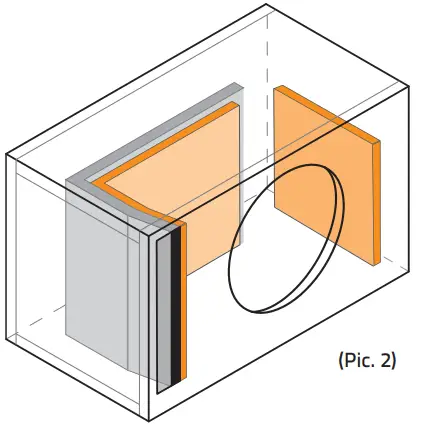

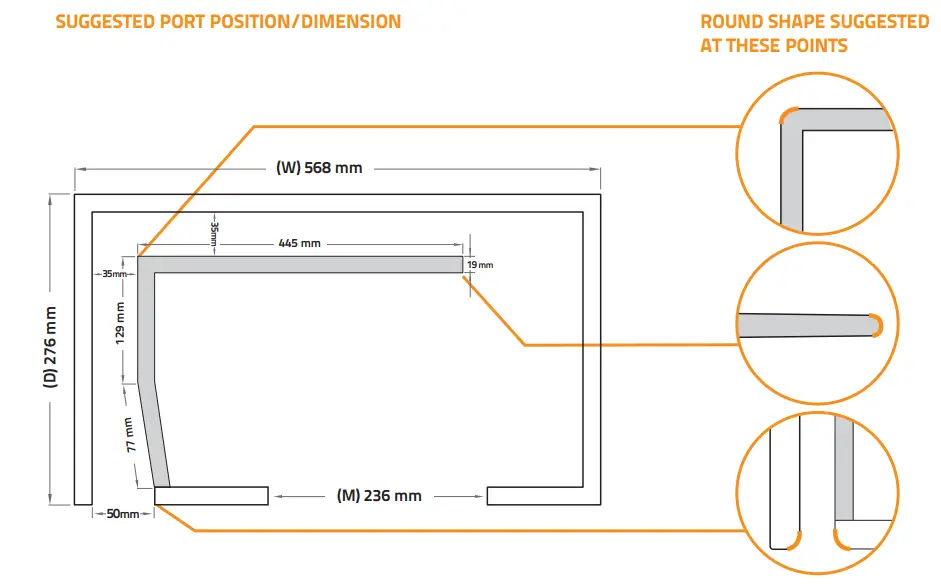

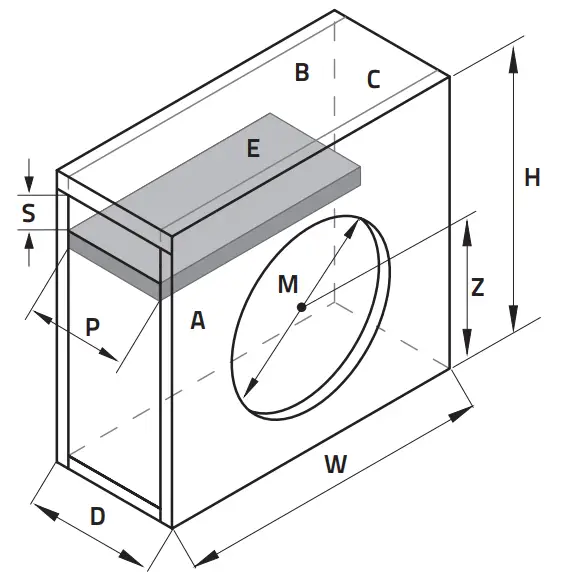

Assembly Instruction

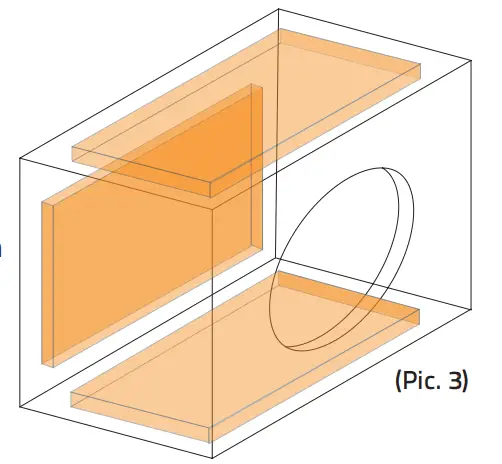

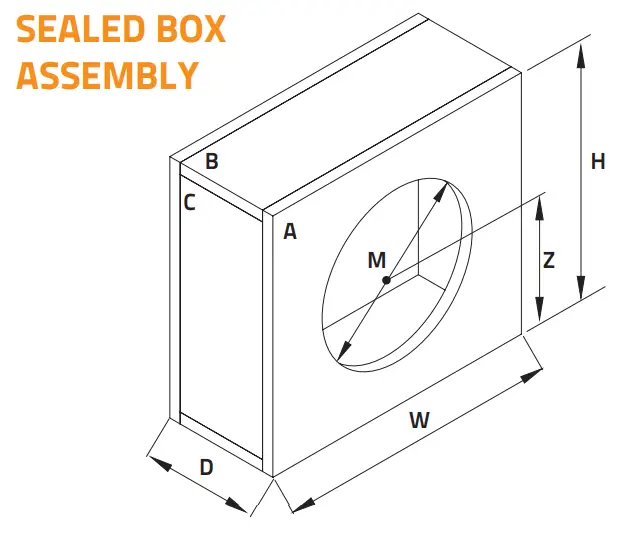

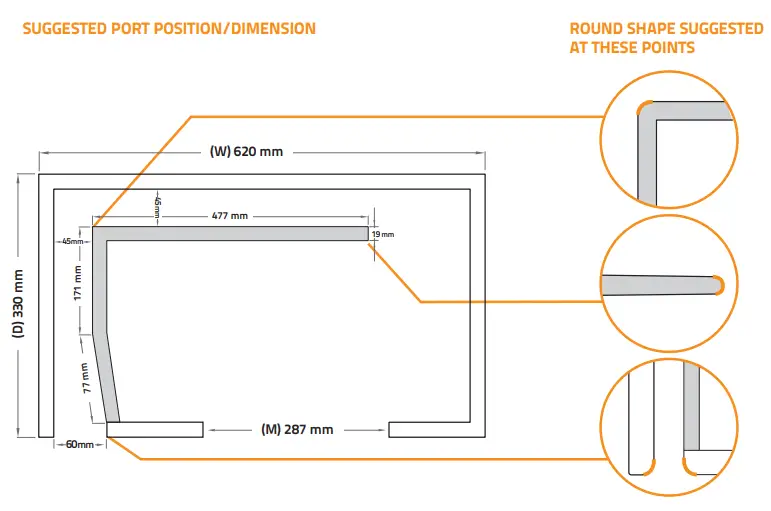

ENCLOSURE DESIGN MP 250 D2

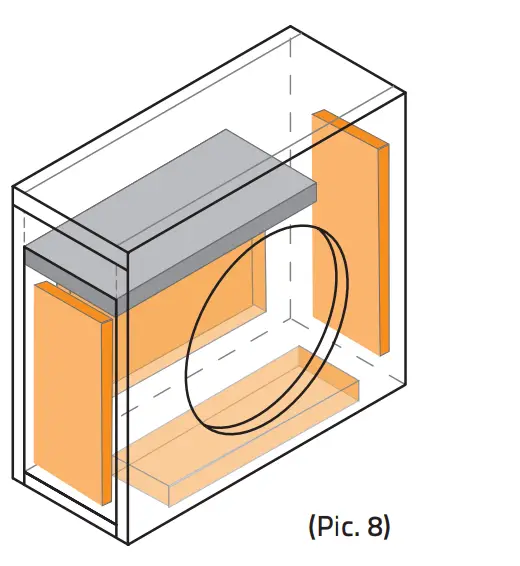

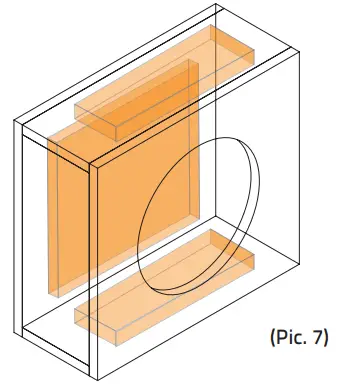

DAMPING MATERIAL BOX ASSEMBLY AND SHAPE
This manual features the box assemblies and shapes which are easiest to create. However, the bass frequency performance can  be noticeably  improved with different box shapes, assembly methods and construction  materials.

DAMPING MATERIAL BOX ASSEMBLY AND SHAPE

This manual features the box assemblies and shapes which are easiest to create. However, the bass frequency performance can be noticeably improved with different box shapes, assembly methods and construction materials.

ENCLOSURE DESIGN MP 300 D2

DAMPING MATERIAL BOX ASSEMBLY AND SHAPE

This manual features the box assemblies and shapes which are easiest to create. However, the bass frequency performance can be noticeably  improved with different box shapes, assembly methods and construction materials.

ENCLOSURE DESIGN MPS 250 S2

DAMPING MATERIAL BOX ASSEMBLY AND SHAPE

This manual features the box assemblies and shapes which are easiest to create. However, the bass frequency performance can be noticeably improved with different box shapes, assembly methods and construction materials.

DAMPING MATERIAL BOX ASSEMBLY AND SHAPE

This manual features the box assemblies and shapes which are easiest to create. However, the bass frequency performance can be  noticeably improved with different box shapes, assembly methods and construction materials.

ENCLOSURE DESIGN MPS 300 S2

DAMPING MATERIAL BOX ASSEMBLY AND SHAPE

This manual features the box assemblies and shapes which are easiest to create. However, the bass frequency performance can be noticeably improved with different box shapes, assembly methods and construction materials.

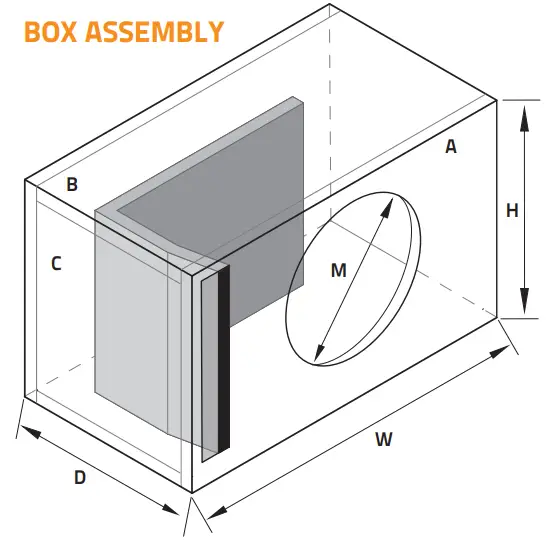

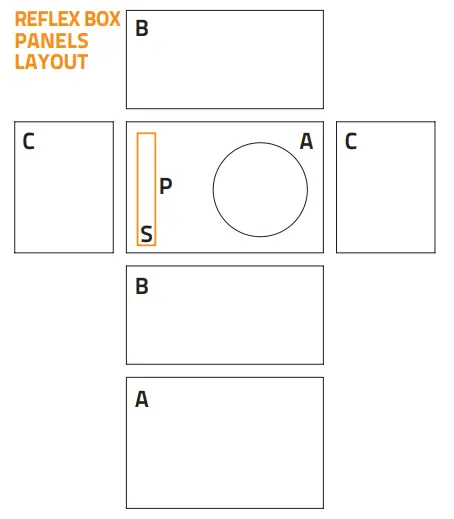

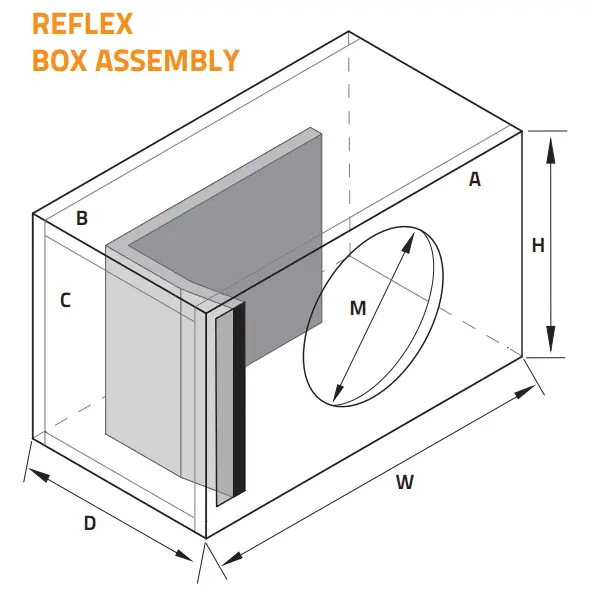

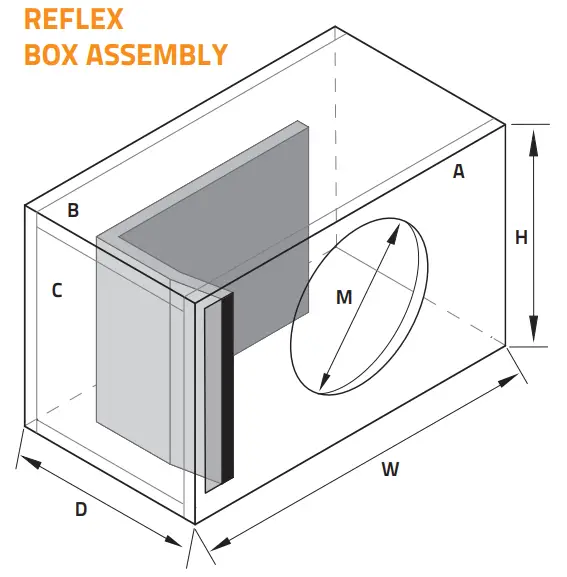

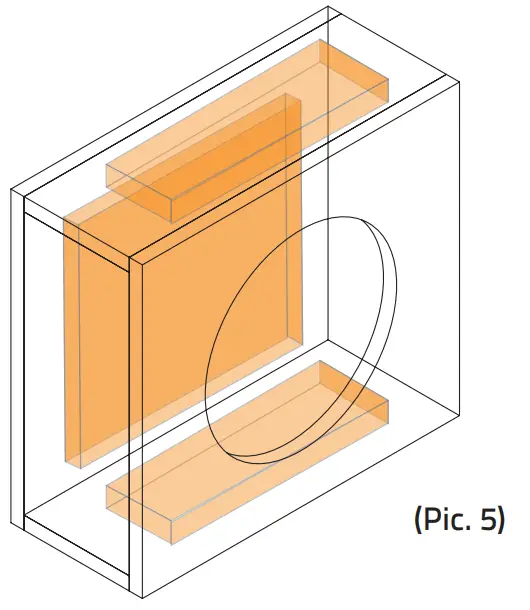

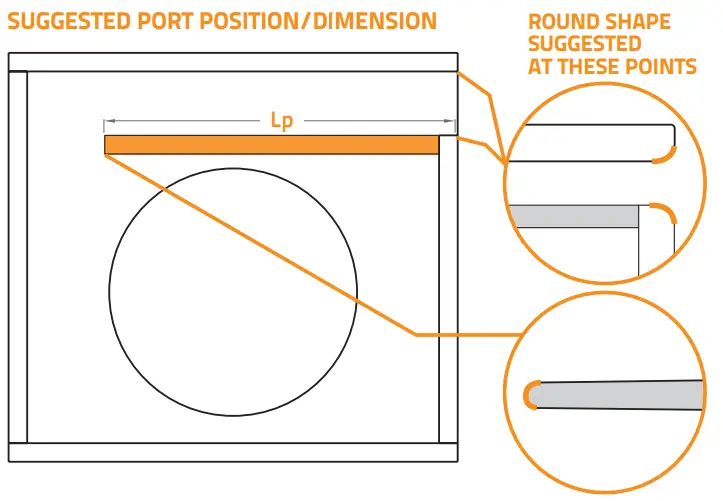

REFLEX BOX ASSEMBLY

DAMPING MATERIAL BOX ASSEMBLY AND SHAPE

This manual features the box assemblies and shapes which are easiest to create. However, the bass frequency performance can be noticeably improved with different box shapes, assembly methods and construction materials.

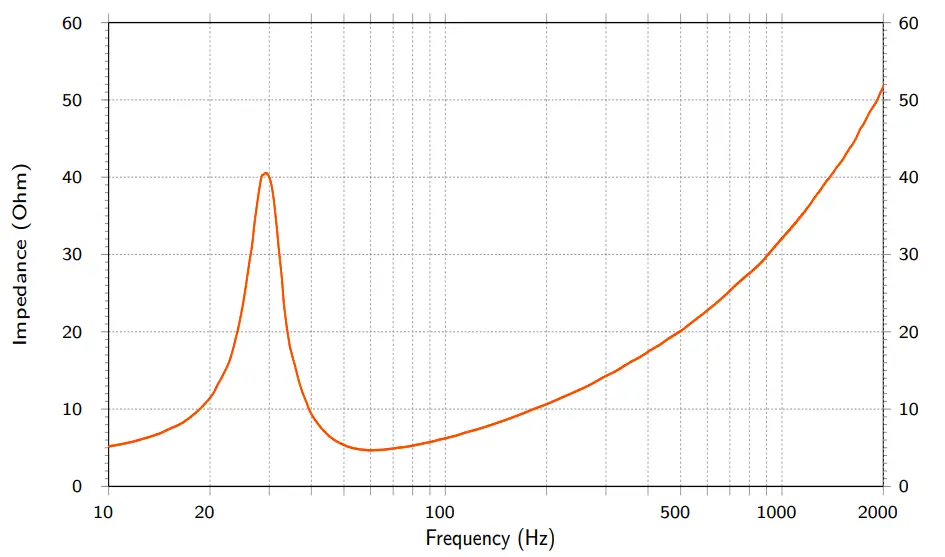

Electro-Acoustic parametres

• The Thiele and Small parameters are measured with coils in parallel. For series coils specification multiply Re and Le by 4 and BL by 2, all other specifications remain the same.
• The Thiele and Small parameters are measured after the speaker has been conditioned by a specific signal and represent the expected long term parameters after a short period of use.

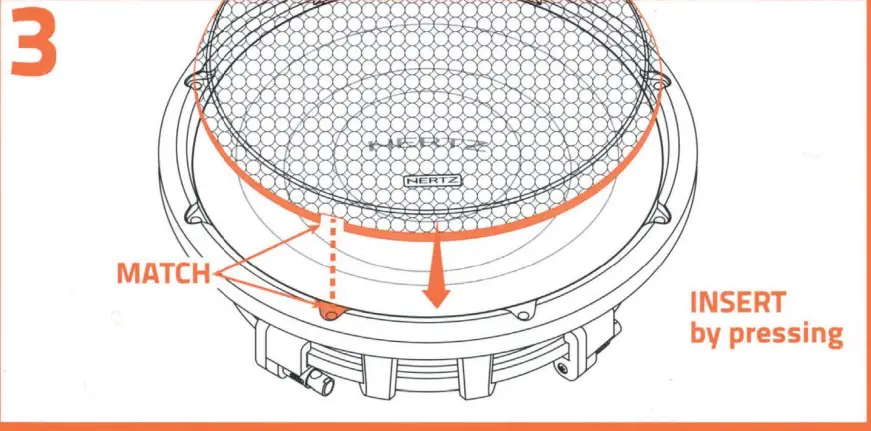

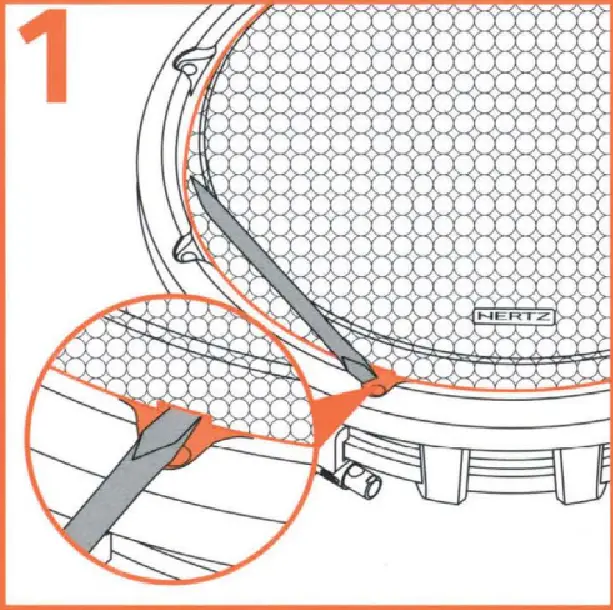

How To remove / Insert Mesh Grill

Warning:

Pay attention not to damage the surround.

TECHNICAL SPECIFICATIONS

ELECTRO-ACOUSTIC PARAMETERS

1. Ultra-shallow overall depth
2. 500W continuous power handling
3. Optimized for extremely-compact sealed enclosure 12-14L (0.4-0.5CF)
4. Air Intercooling Revolution (A.I.R.) prevents air-compression-related limitations
5. Unrivalled mechanical excursion, +20% over traditional designs
6. Six-layer copper voice coil (38mm/1.5 in.) ensures high thermal capacity
7. Non-vented rear design allows reduced enclosure depth
8. Robust screw-less mesh grille included with black screws provided
9. Die-cast aluminum frame
10. Solid horizontal 8AWG spring-loaded terminals
11. EID: Scan, Discover, Identify.




Costumers Support

Elettromedia: 62018 Potenza Picena (MC)
Italy:  T +39 0733 870 870
F:  +39 0733 870 880
www.elettromedia.it
