QUICK REFERENCE GUIDE > HI90BLX1
Wall Rangehood, 90cm, Island
Stainless Steel

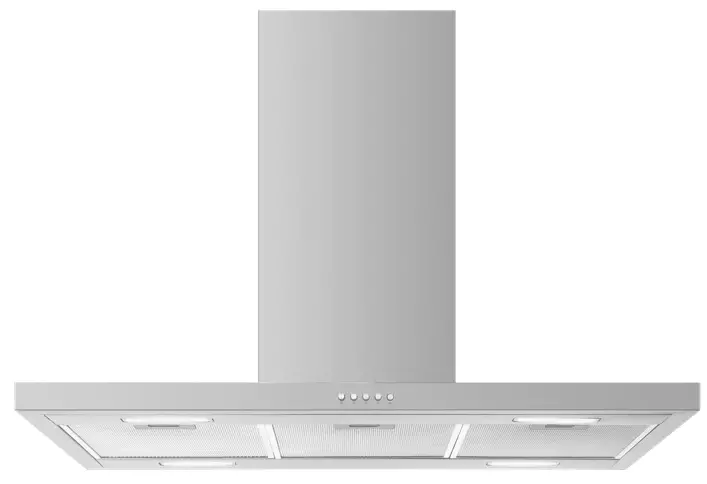

HI90BLX1 90cm Island Wall Rangehood
Perfect for kitchens with a cooktop built into a central island – this efficient rangehood looks stylish from all angles.
- Efficient 700m3/hr air flow
- Easy to clean, with dishwasher-safe filters
- Four energy-efficient LED lights illuminate your cooktop perfectly
- Ducted or recirculation options for more flexibility when installing
DIMENSIONS
| Height | 950 – 1100 mm |
| Width | 898 mm |
| Depth | 600 mm |
FEATURES & BENEFITS
Effective, efficient extraction
Select between three fan speeds to ensure steam, odours and grease are extracted from your kitchen at the rate you need for your cooking.
Clean and pristine
Built from beautiful stainless steel, this rangehood is easy to keep clean. Put the aluminium filters into your dishwasher regularly for a quick, simple clean.
A joy to use
Creating culinary delights is a pleasure thanks to design features such as simple push-button controls that turn on extraction immediately, and lowenergy LED lighting to perfectly illuminate your cooktop.
Installed to suit
This rangehood offers ducted or recirculated extraction, so you can choose the solution that best suits your kitchen.
SPECIFICATIONS
Accessories
| Aluminium filter | H0530061772 |
| Chimney extension | H0530062213 |
| Light bulb | H0530061789 |
| Recirculation carbon filter | H0530061771 (sold separately) |
| Recirculation kit | H0530062211 (sold separately) |
Fan ratings
| Maximum air movement | 700m³/hr |
Installation and cleaning
| Air outlet size | 150mm |
| Dishwasher safe filters | • |
| Ducted | Top extraction |
| Recirculation | Optional – top extraction |
| Two piece height adjustable flue | • |
Performance
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 3 |
Power requirements
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
Product dimensions
| Depth | 600 mm |
| Height | 950 – 1100 mm |
| Width | 898 mm |
Product information
| Control type | Push button |
Ventilation features
| Light type | LED 4 x 2W |
Warranty
| Parts and labour | 2 years |
| SKU | 50187 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
