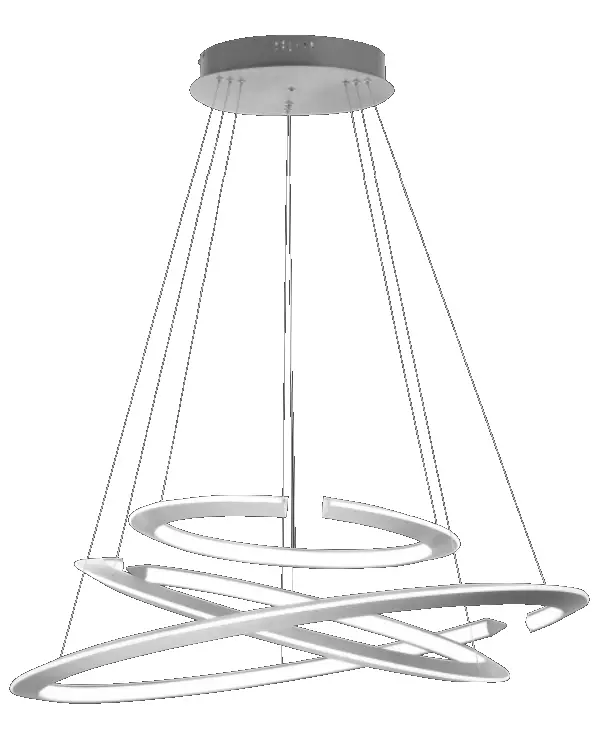

Paul Neuhaus 835157 Alessa Pendant Light
INTRODUCTIONS
This product contains light sources of energy efficiency class
LED INDECATORS
| 55 W / 35 W / 25 W 6.600 lm / 4.200 lm / 3.000 lm |
 | 120 W 4.500 lm |
| 20.000 h |
| 2.700 -5.000 K |
  | 15.000 x 15.000 x |
 |  |
| 835157 | |
| 230V / 50Hz~ | |
| LED | 1x LED-Board 24V DC / 55W |
| LED | 1x LED-Board 24V DC / 35W |
| LED | 1x LED-Board 24V DC / 25W |

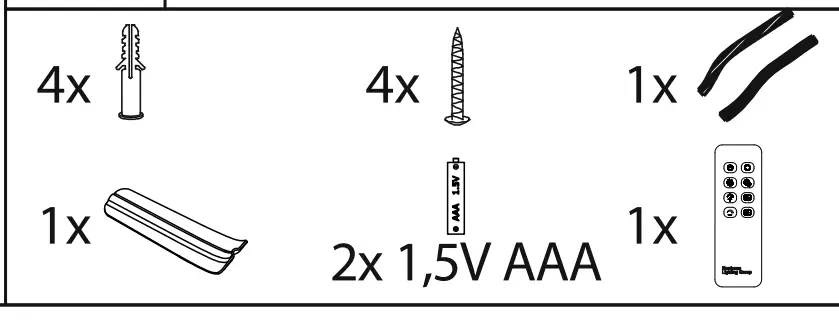

PARTS

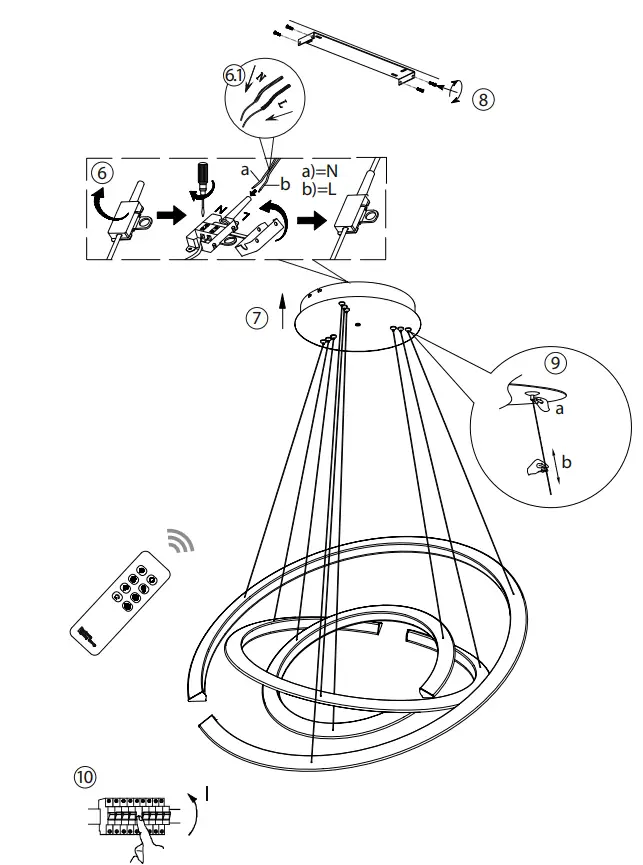

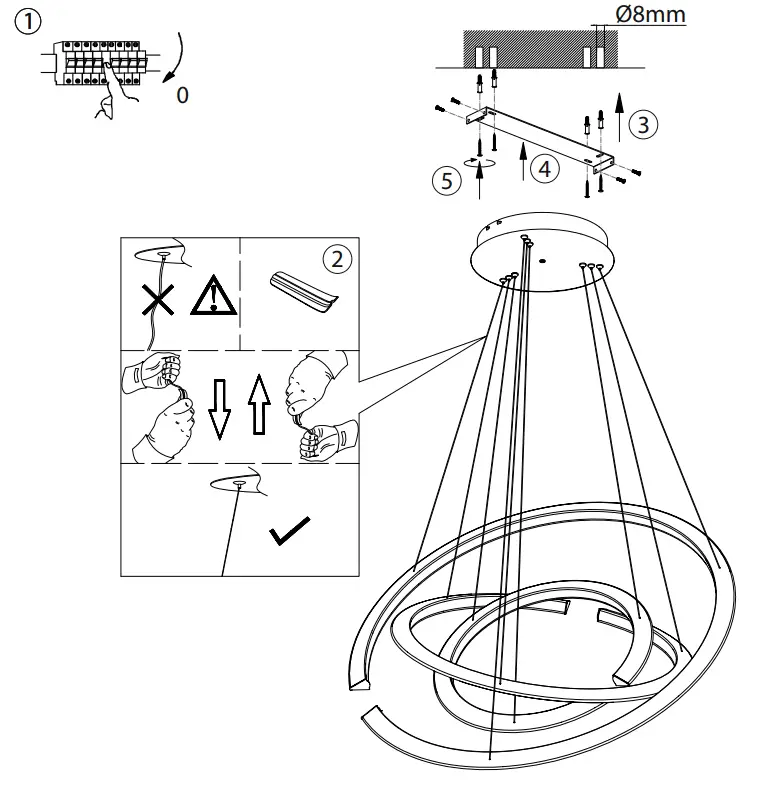

INSTALLATION INSTRUCTIONS

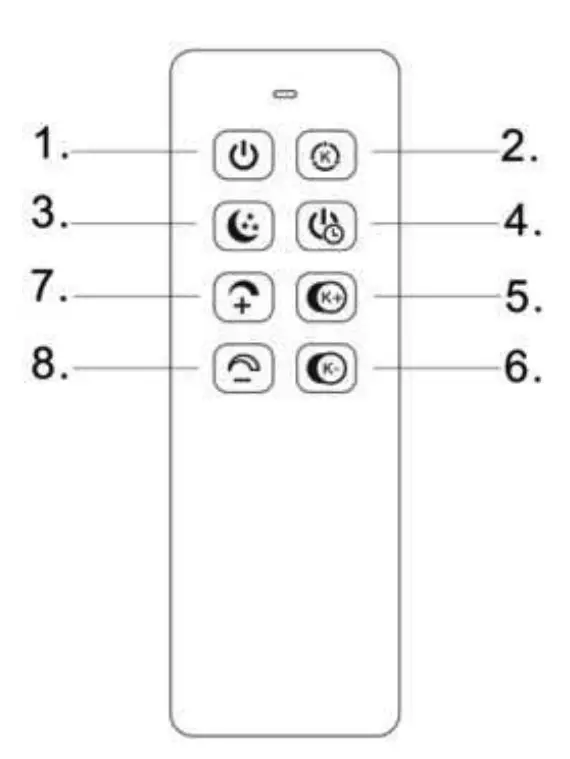

Remote Control Instructions
- On /Off
- Change color temperature
- Night light (yellow 5%)
- Turn off the light after 1 minute
- Increase color temperature
- Reduce color temperature
- Dim up the brightness (max. 100%) Short press: max. brightness
- Dim down the brightness (min. 5%) Short press: min. brightness
Specifications
Operation voltage: 3V DC
Operation current: <15mA
Remote distance: >6m
Remote Control: Infrared

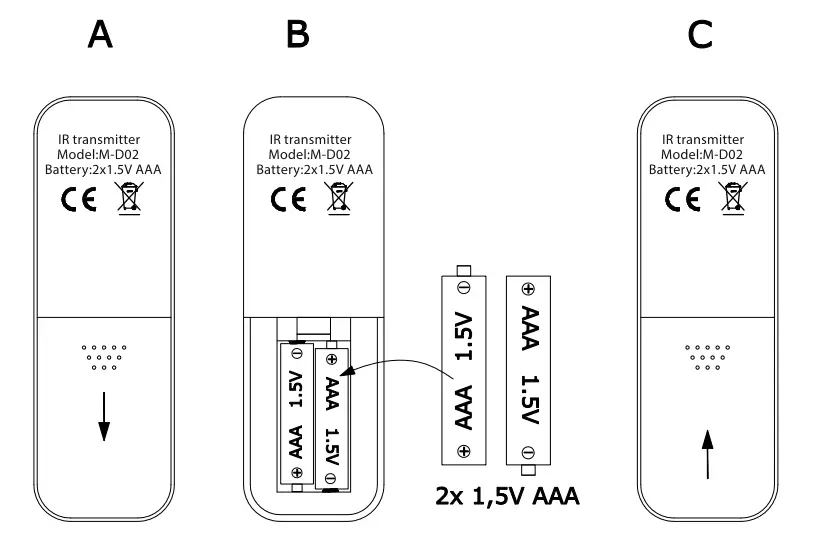

Battery: 2x 1,5VAAA
