Living Co 9333527443946 Valencia Cube Storage Drawer Insert Instruction Manual

VALENCIA CUBE
DRAWER INSERT

INSTRUCTION MANUAL
The Maximum Weight per shelf can hold up to : 5 kgs

Tips Before you Start

1. Please check that all parts are present before you start the assembly of your furniture.
2. For ease and speed of assembly, we recommend that before you commence each step of the assembly, that you identify all the parts required for that step.
3. For larger items, please ensure that you have sufficient space and people (as indicated on page 1) to assemble your product safely.
4. We recommend that, where possible, all items are assembled near to the area in which.They will be placed in use, to avoid moving the product unnecessarily once assembled.
5. For the protection of your furniture, we recommend that the product is placed on a protected surface during assembly to prevent any damage.
6. During assembly please take care not to over-tighten anythings, as this may damage the product. Do not use power tools.
7. Always place the product on a steady and stable surface.
8. Do not stand on the product. Do not use the product as a stepladder.
9. This product is intended for indoor, household use only as it is a non-industrial product.
10. Please use caution and care when lifting the product to avoid personal injury and/or product damage.

Care and Maintenance

• Please periodically check all things and re-tighten as necessary.
• To clean your item, please use a damp cloth and wipe clean.
• Never allow any kind of liquid to remain on your furniture. Absorption can cause wood to warp or finishes to de-laminate.
• Please do not place hot items (eg. hot drinks) directly on to the surface.
• Please do not drag and pull your furniture.

QUICKFIT

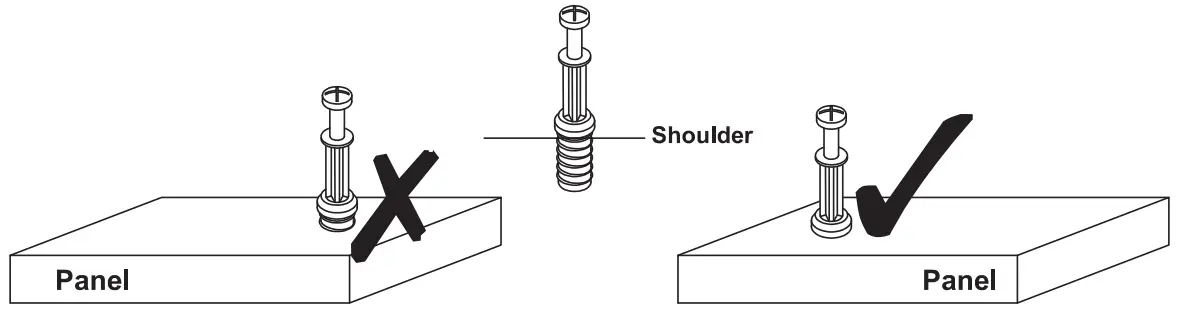

Tighten quickfit until shoulder is flush with panel. Do not overtighten or undertighten.

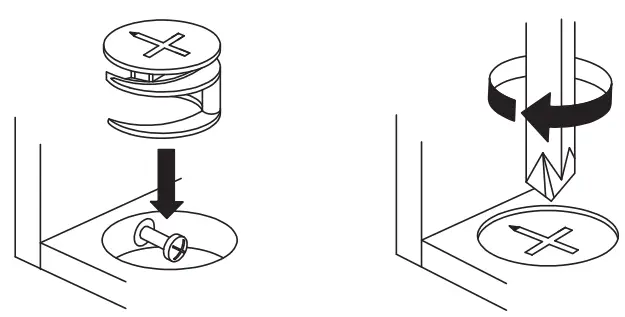

CAM LOCK

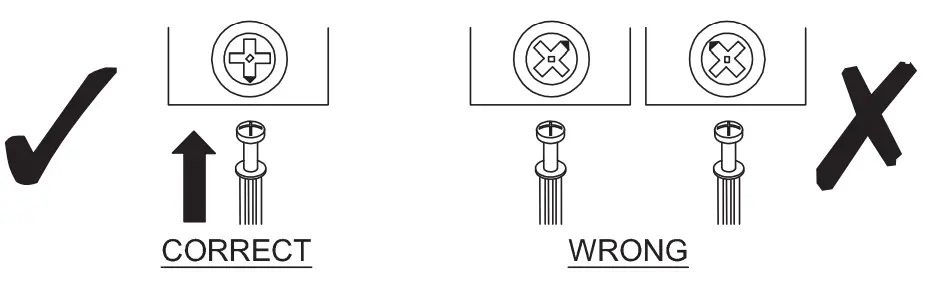

When fitting cam lock, ensure starting position is correct before you insert connecting quickfit.
Quickfit head should be in the centre of the cam lock when the two panels are joined.
Cam lock should be inserted before quickfit.

Turn cam lock clockwise to tighten.

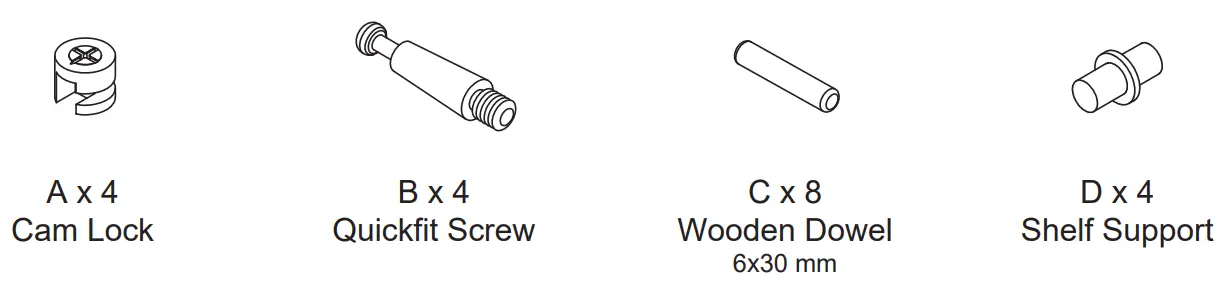

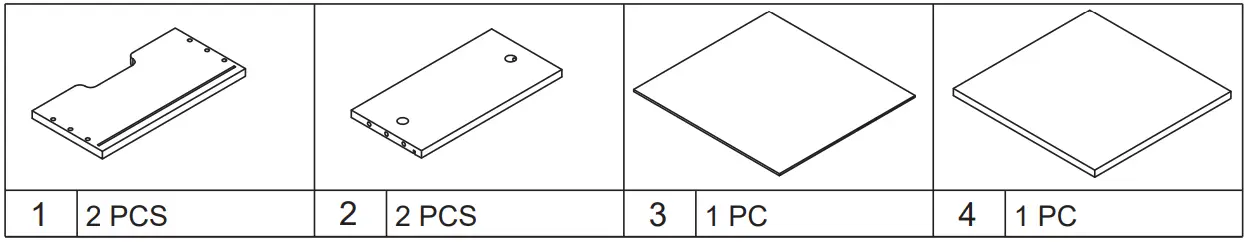

Hardware List

Part Name

Assembly

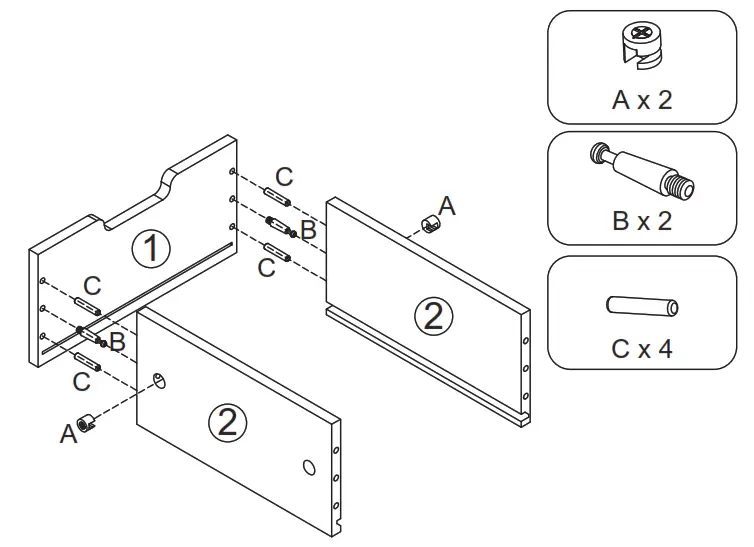

STEP 1

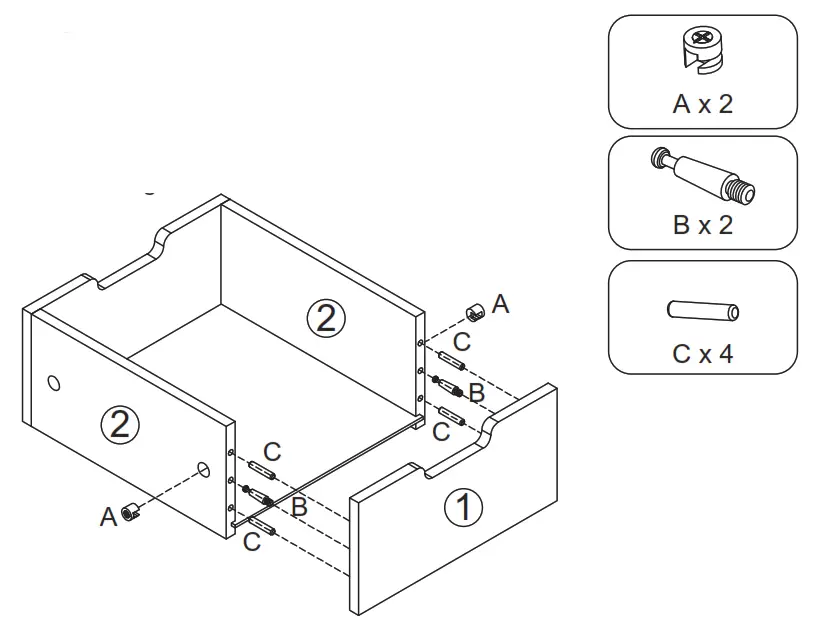

Insert quickfit screws (B) and wooden dowels (C) into part 1, as shown.
Insert cam locks (A) into parts 2, as shown.
Fit parts 2 to part 1.
Turn cam locks clockwise to tighten.

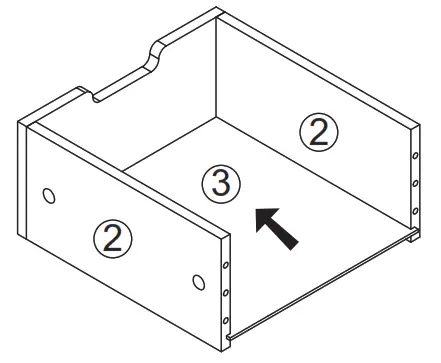

STEP 2
Slide drawer base 3 into place in grooves between parts 2.

STEP 3
Insert quickfit screws (B) and wooden dowels (C) into part 1, as shown.
Insert cam locks (A) into parts 2, as shown.
Fit parts 2 to part 1.
Turn cam locks clockwise to tighten.

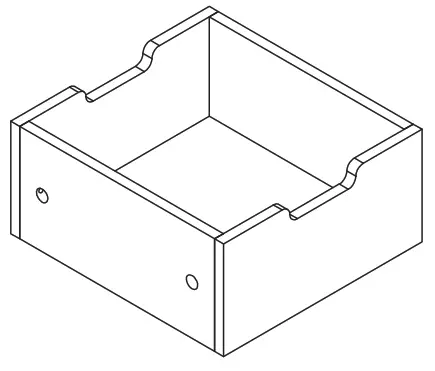

STEP 4
Your drawer is assembled

STEP 5
Shelf and drawer can be used in any of the Valencia cube units.

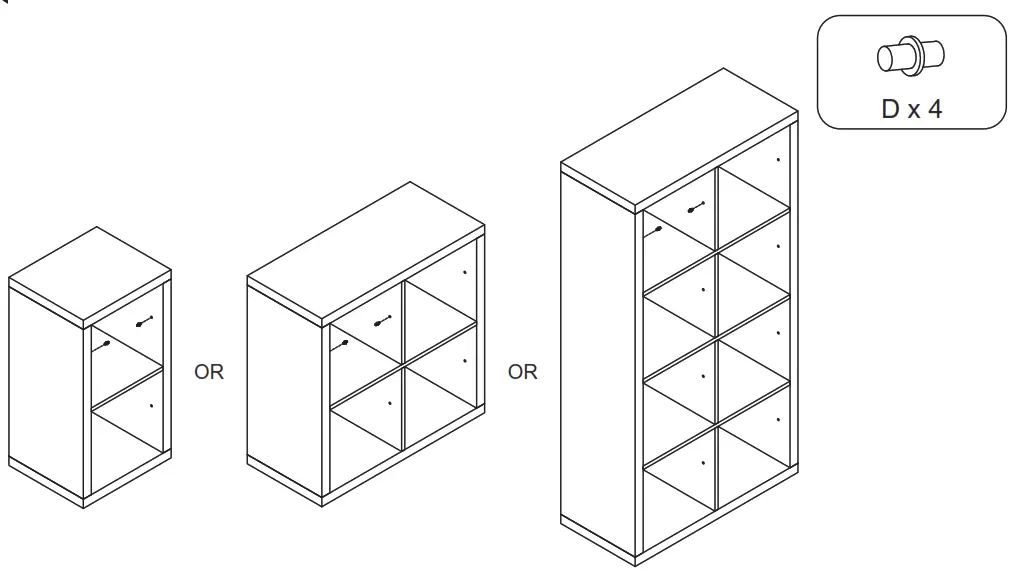

Place shelf supports (D) in desired location on unit.
There are 4 supports for each shelf.

STEP 6

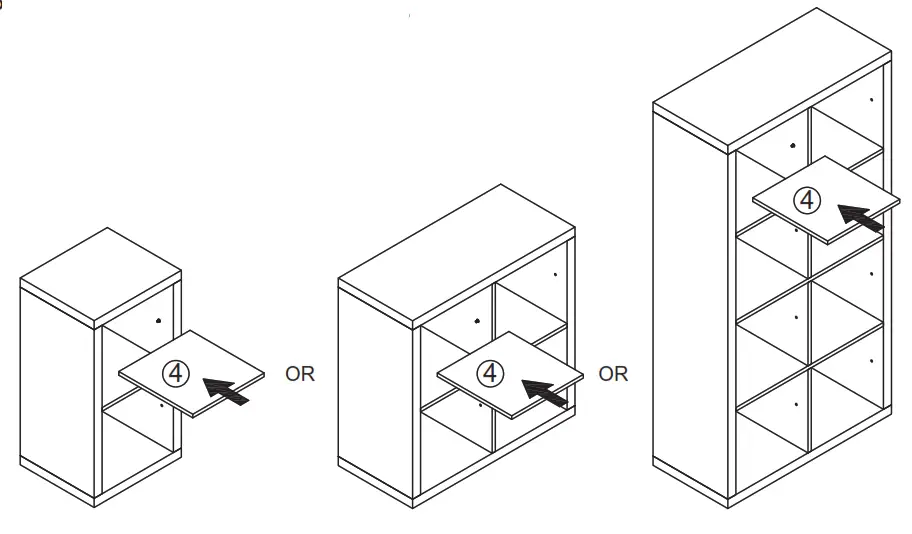

Place shelf panel 4 onto shelf supports.

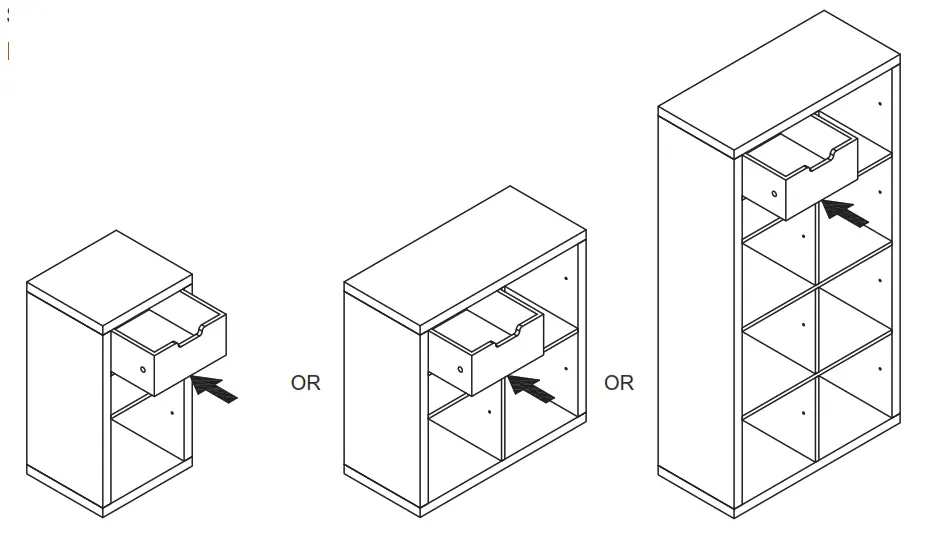

STEP 7
Slide assembled drawer (step 1) into desired location on shelf.
Drawer can sit either above or below shelf panel.

STEP 8
Your drawer insert is now complete.

1. Please check that all parts are present before you start the assembly of your furniture.
2. For ease and speed of assembly, we recommend that before you commence each step of the assembly, that you identify all the parts required for that step.
3. For larger items, please ensure that you have sufficient space and people (as indicated on page 1) to asse mble your product safely.
4. We recommend that, where possible, all items are assembled near to the area in which, They will be placed in use, to avoid moving the product unnecessarily once assembled.
5. For the protection of your furniture, we recommend that the product is placed on a protected surface during assembly to prevent any damage.
6. During assembly please take caren ot to over-tighten anythings, as this may damage the product. Do not use power tools.
7. Always place the product on a steady and stable surface.
8. Do not stand on the product. Do not use the product as a stepladder.
9. This product is intended for indoor,household use only as it is a non-industrial product.
10. Please use caution and care when lifting the product to avoid personal injury and/or product damage.

• Please periodically check all things and re-tighten as necessary.
• To clean your item, please use a damp cloth and wipe clean.
• Never allow any kind of liquid to rema inon your furniture. Absorption can cause wood to warp or finishes to de-laminate.
• Please do not place hot items (eg.hot drinks) directly on to the surface
• Please do not drag and pull your furniture.

STOP
BEFORE RETURNING TO STORE
Read the manual.
It will help you get the best out of your product.
Still have questions?
Call After Sales Support 0800 422 274

Warranty
We pride ourselves on producing a range of quality products that are both packed with features and completely reliable.
We are so confident in our products, we back them up with a one-year warranty.
Now you too can relax knowing that you are covered.
Custmer Helpline NZ: 0800 422 274
This product is covered by 1 year warranty when accompanied by proof of purchase.
AFTER SALES SUPPORT
NZ 0800 422 274
