Browin 802002 Cherry Stoner Pitter User Manual

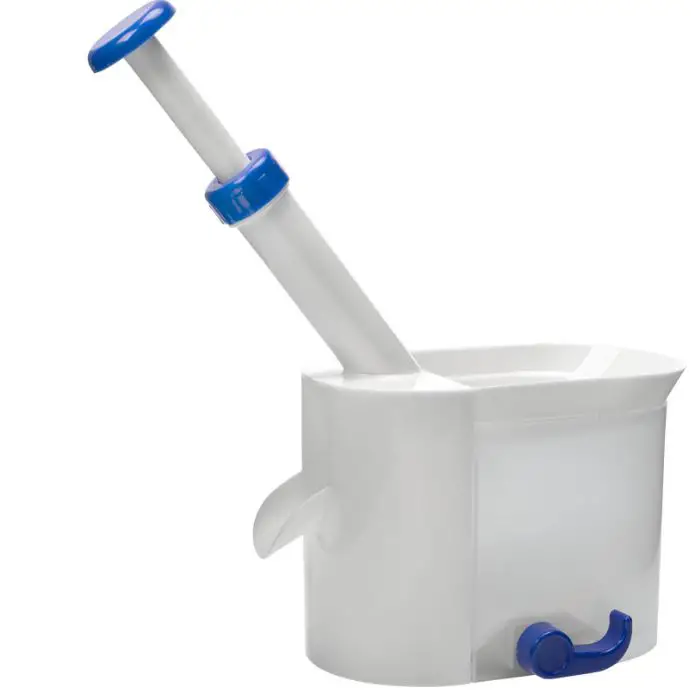

BROWIN 802002 Cherry Stoner Pitter

Assembly

• unscrew a cap (2) that fastens the piston (1)
• place a spring on the piston bottom part (8)
• insert the assembly into a guide sleeve (3) trying to guide the blade (6) onto the cross-section of the device and fully tighten the cap
• insert a rubber partition (10) onto the base (9), to fit the cross cut on the blade axis, install a stone container (7)
• using a suction cup with a clamp (5) mount the device to a moistened tabletop
• under a stout (11) place a vessel for stoned fruit

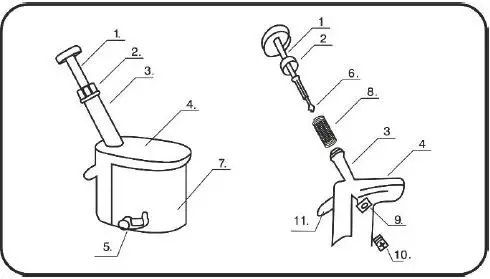

1. piston;
2. cap;
3. guide sleeve;
4. fruit tray;
5. table suction cup with a clamp;
6. blade;
7. stone container;
8. spring;
9. rubber partition base;
10. rubber partition;
11. stout
