QUICK REFERENCE GUIDE > OB60SD11PX1
Oven, 60cm, 11 Function, Selfcleaning
Series 9 | Contemporary Stainless Steel

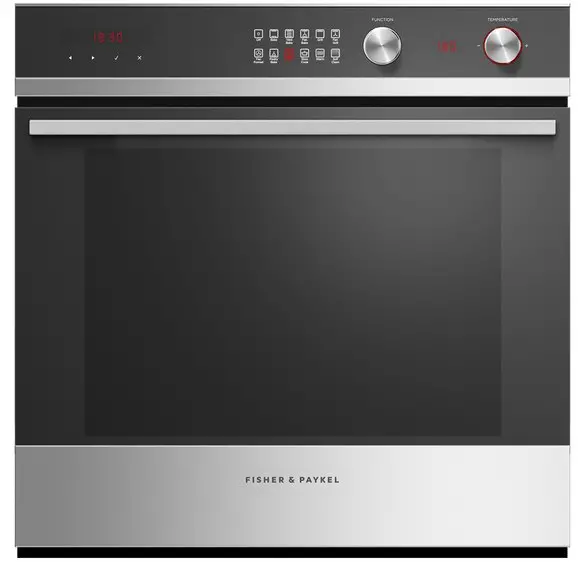

OB60SD11PX1 Self Cleaning 11 Function 60cm Oven
A highlight of the Fisher & Paykel collection, this Series 9 oven ensures that every dish you create is cooked to perfection.
- 85L total capacity with 11 oven functions including Roast and Pastry Bake
- Moisture level control with ActiveVent™ technology
- Pyrolytic self-cleaning function breaks down food residue for an easy clean
- Non-tip, full-extension shelves for safe removal of hot dishes

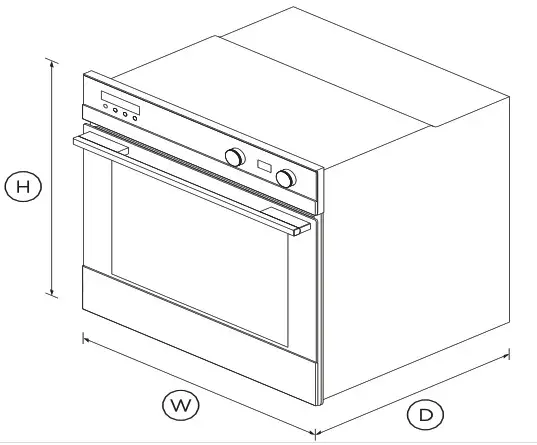

DIMENSIONS
| Height | 598mm |
| Width | 596mm |
| Depth | 565mm |
FEATURES & BENEFITS
MULTI-FUNCTION FLEXIBILITY
11 functions including Roast, Pastry Bake and Fan Grill mean no matter what you’re cooking, you’ve got the right heat to match.
GENEROUS CAPACITY
With a generous sized internal cavity, you can create several dishes at once using multiple shelves.
ACTIVEVENT™ TECHNOLOGY
With Active Vent technology for optimised moisture levels and AeroTech™ for even heat distribution, you’ll get perfect results even when using multiple shelves.
CLEANING IS SIMPLE
Pyrolytic self-clean breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth.
SEAMLESS FIT
Designed to fit seamlessly in your kitchen, this built-in oven fits flush with cabinetry to minimise gaps and add to a cohesive aesthetic.
SAFE AND SOUND
The Cool Touch door features triple glazing and a cooling system that ensures it’s safe to touch from the outside protecting both your hands and the surrounding cabinetry.
SPECIFICATIONS
| Accessories | |
| Contemporary round handle | Part 81645 |
| Food probe | 1 |
| Full extension sliding shelves | 2 sets |
| Full extension telescopic | • |
| Grill rack | 1 set |
| Optional round handle | Part 81645 |
| Roasting dish | 1 |
| Smokeless grill tray | 1 |
| Step down wire shelf | 1 |
| Capacity | |
| Shelf positions | 6 |
| Total gross | 85L |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Consumption | |
| Energy rating | A+ |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| Electronic oven control | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Soft open and close door | • |
| Turned stainless capacitive | • |
| Turned stainless dials with | • |
| Functions | |
| Bake | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 11 |
| Pastry Bake | • |
| Pyrolytic self-clean | • |
| Roast | • |
| Slow cook | • |
| Vent bake | • |
| Warm | • |
| Performance | |
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Grill power | 3000W |
| Whisper quiet cooking | • |
| Power requirements | |
| Amperage | 12.8 – 13.8A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 565mm |
| Height | 598mm |
| Width | 596mm |
| Safety | |
| Advanced cooling system | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Full extension sliding shelves | • |
| Non-tip shelves | • |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 82268 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
