QUICK REFERENCE GUIDE > RF522BRXFDU5
Freestanding Refrigerator Freezer, 79cm, 494L, Ice & Water
Series 5 | Contemporary Stainless Steel | Right Hinge

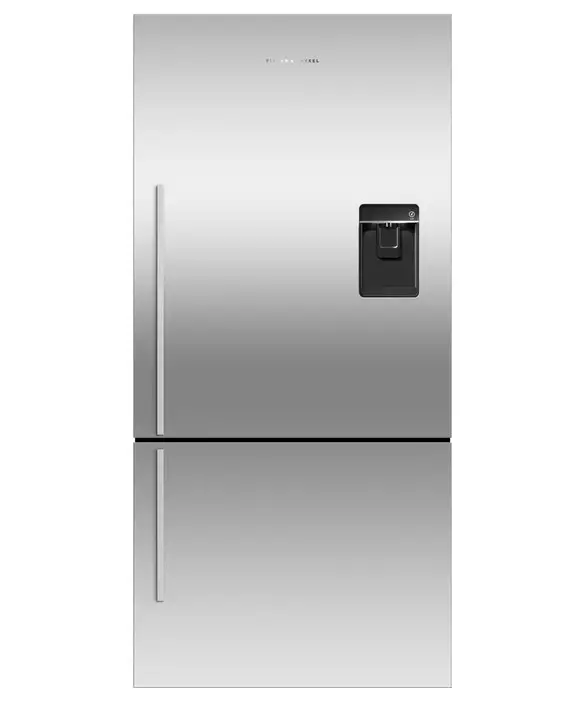

RF522BRXFDU5 494L 79cm Freestanding Refrigerator Freezer
Large capacity in stylish stainless steel, you’ll have plenty of room for your chilled and frozen food.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Door water dispenser and internal ice maker
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods.
- Choose which side you’d like your door hinge on to suit your kitchen layout

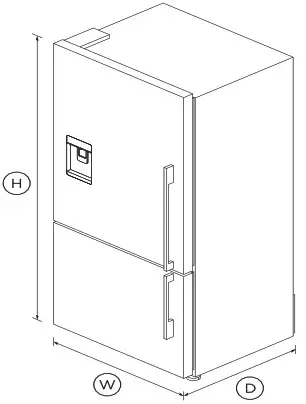

DIMENSIONS
| Height | 1715mm |
| Width | 790mm |
| Depth | 695mm |
FEATURES & BENEFITS
ACTIVESMART™ FOODCARE
Every time you open your refrigerator, the temperature around your food changes. ActiveSmart™ foodcare adjusts airflow to create a stable temperature, helping your food stay fresher for longer.
WATER ON TAP
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your fridge.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
DESIGN QUALITY
Our fridges are designed and built using quality materials. We use real stainless steel on our fridges and solid glass for shelving as well as in our wine cabinet doors.
EASY CLEANING
No more permanent dirty marks with our EZKleen feature for stainless steel fridges. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
SIMPLE STORAGE
This fridge is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our flexible shelving also gives you more storage options.
CLEVER ENERGY
Your fridge adapts to daily use by cooling and defrosting only when needed. This means your fridge uses the energy it needs without compromising on food care.
SPECIFICATIONS
| Accessories | |
| Joiner kit | 819264 |
| Matching Replacement Water | Models 24xxx = part no. |
| Surround Kit (Joined left/right | Part number 23988 |
| Surround Kit (Left Hand) | 23986 |
| Surround Kit (Right Hand) | 23987 |
| Capacity | |
| Total net volume | 494L |
| Volume freezer | 146L |
| Volume refrigerator | 348L |
| Consumption | |
| Energy consumption | 369kWh/year |
| Energy rating | F |
| Features | |
| Adjustable door shelves | 4 |
| Adjustable glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| Full width door shelves | 2 |
| LED lighting | • |
| Rear rollers | • |
| Single bottle holders | 4 |
| SmartTouch control panel | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| Ice bin and scoop | • |
| Large plastic bins | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free | • |
| Frost free freezer | • |
| Humidity control system | • |
| Noise emissions | 42dBA |
| Noise emissions class | D |
| Sabbath mode | • |
| Product dimensions | |
| Depth | 695mm |
| Height | 1715mm |
| Width | 790mm |
| Warranty | |
| Parts and labour | 5 years |
| Sealed system parts only | 5 years |
| SKU | 26461 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
