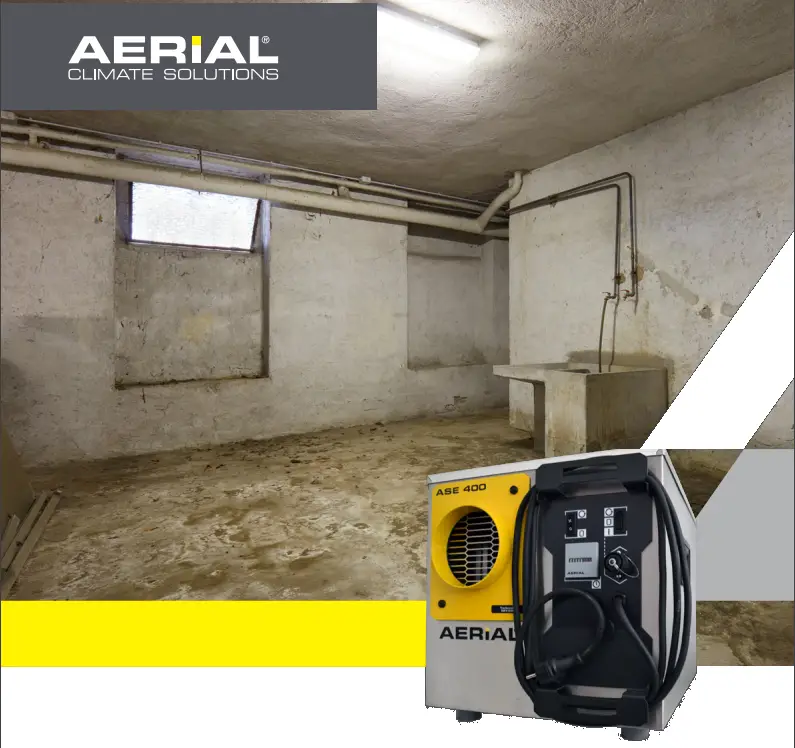

Aerial Ase 200-300-400 Portable Adsorption Dehumidification Instruction Manual

ASE 200-300-400 Portable Adsorption Dehumidification
Instruction Manual

ASE 200-300-400 Portable Adsorption Dehumidification

PORTABLE ADSORPTION DEHUMIDIFICATION
ASE 200-300-400
IDEAL FOR DRYING AT LOW TEMPERATURES IN CONSTRUCTION, WATER DAMAGE AND WATERWORKS INDUSTRIES PORTABLE ADSORPTION DEHUMIDIFIERS – INTRODUCTION
ENSURING DRY CONDITIONS AT LOW TEMPERATURES

Adsorption dehumidification ensures dry conditions at low temperatures. This makes the ASE portable range the obvious choice for drying out new buildings or water damage during the winter season and for maintaining low levels of relative humidity at facilities with a low ambient temperature.
Humidity problems are most often associated with hot and damp environments, and usually a condense drying dehumidifier is applied. However, at ambient temperatures below 10°C condensation is not very easily achieved, whereas humid air and moisture from materials, open water surfaces, and production processes can cause serious damage at even very low temperatures.
The ASE portable range offers reliable control of the relative humidity of the air, and drying out water damage or newly constructed buildings even at winter temperatures. After all, accidents happen regardless of the seasons, and construction work goes on all the year round.

Sturdy and compact design

The portable units have been designed for easy handling and transportation. The sturdy stainless steel cabinets are surprisingly compact and low weight compared to capacity. The countersunk control panel is well protected and folding handles for carrying make the units easy to stack during transportation and storage.

Key features

• Ensures dry conditions at low temperatures
• Reliable control of the relative humidity of the air
• Sturdy and compact design
• Cabinet in stainless steel/hot galvanized powder coated steel
• Designed for easy handling and transportation
• Low weight
• Easy to stack during transportation and storage
• MID approved energy counter (optional with ASE 400)
• Hour counter
• Internal hygrostat (ASE 400: connection for external hygrostat)

Easy installation and service
The portable units are fast and easy to install. Just connect one or two hoses to the dry air and one hose to the regeneration air outlet and lead it to the outside. The cabinet provides easy access for internal cleaning and service, and the air filter can be changed without opening the cabinet.
High-performance operations
The built-in hour and energy counter shows the accumulated hour and energy consumption. The energy counter of the ASE 200/ASE 300 is very precise and has the MID approval which is highest marked standard. The portable range offers reliable high-performance operations at low temperatures and easy installation ensure fast results in drying out constructions and emergency situations minimizing the long-term damage caused by flooding. The portable units can run continuously, or they can be controlled by internal hygrostat with the ASE 200/ASE 300 or external hygrostat with the ASE 400.
How the dehumidifier works
An adsorption dehumidifier is divided into two zones. In the drying zone humid air from the air inlet passes through a silica gel rotor that adsorbs the moisture and the dry air is returned to the room. In the regeneration zone hot air is blown through the rotor drying out the silica gel and carrying the moisture through the connected hose to the outside.
How an adsorption dehumidifier works

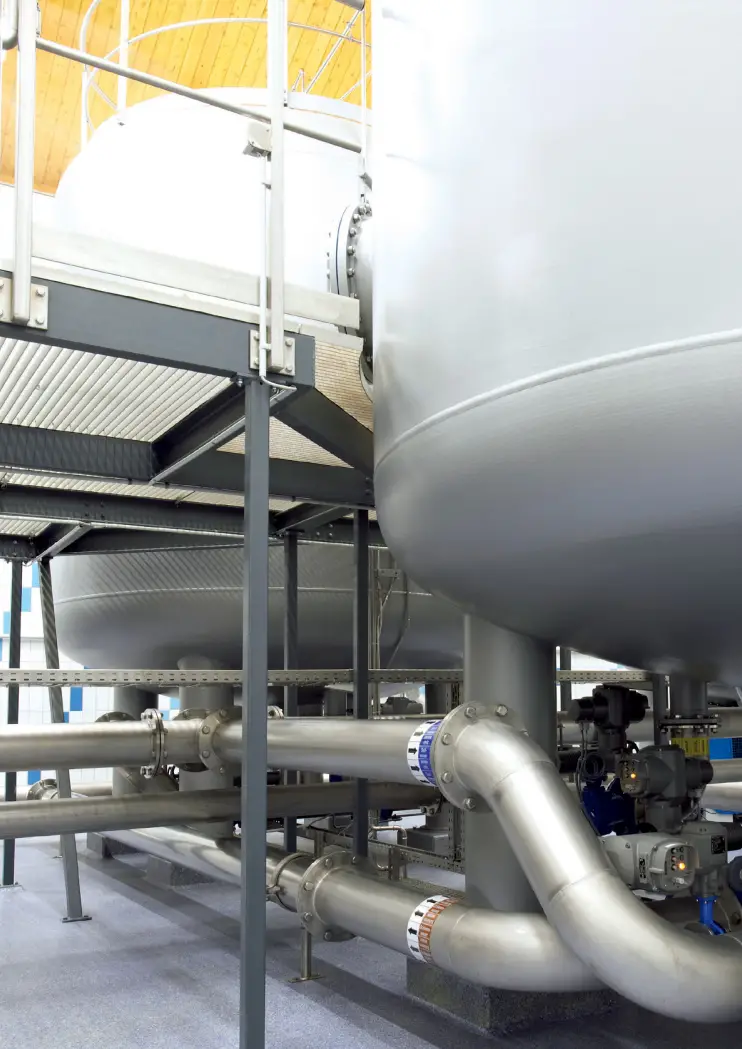

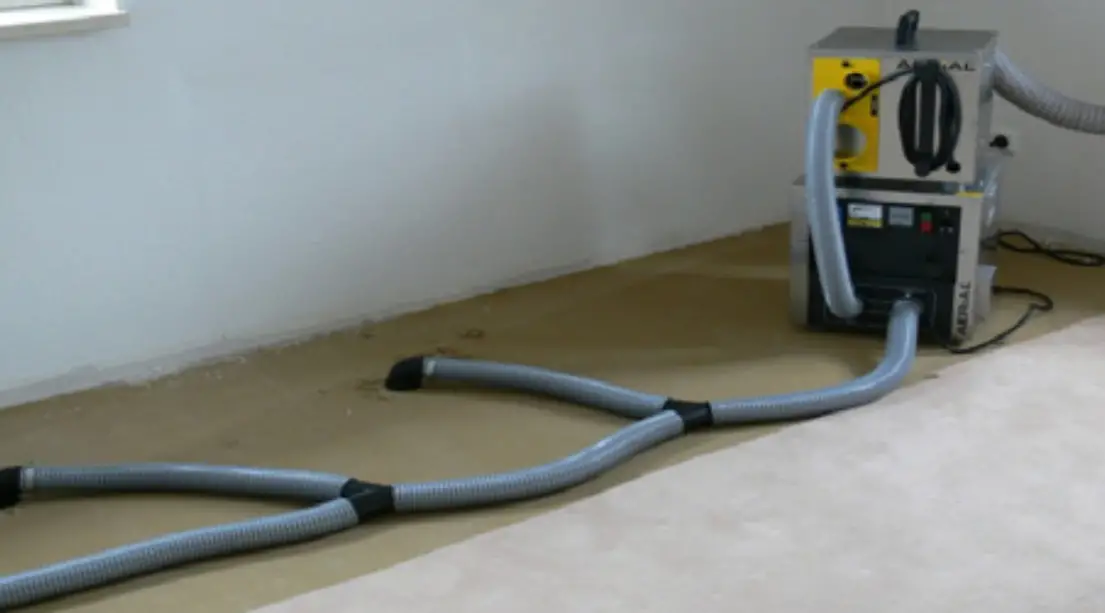

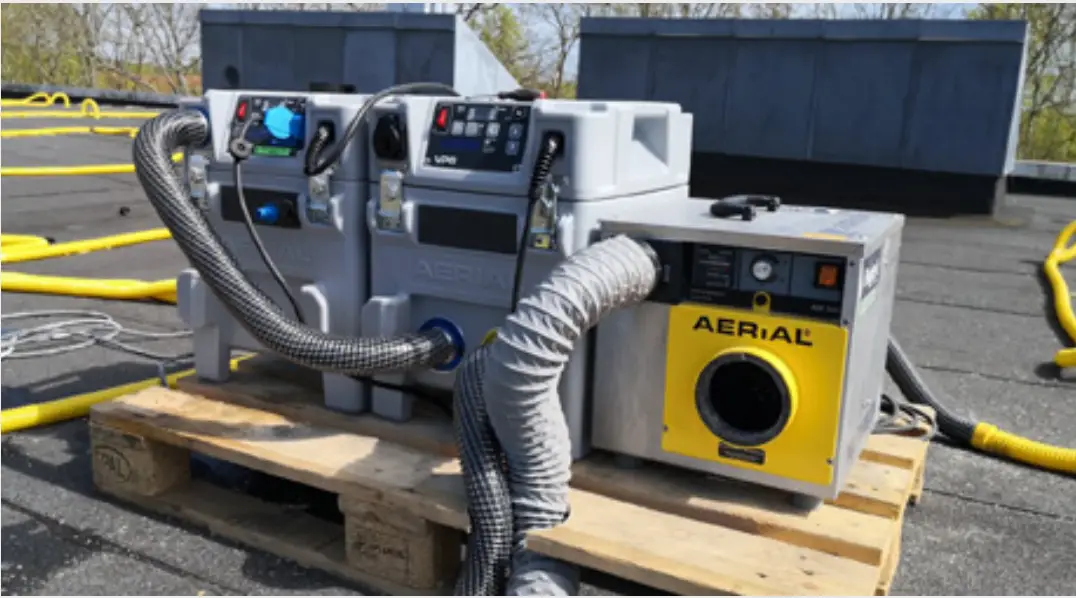

Applications

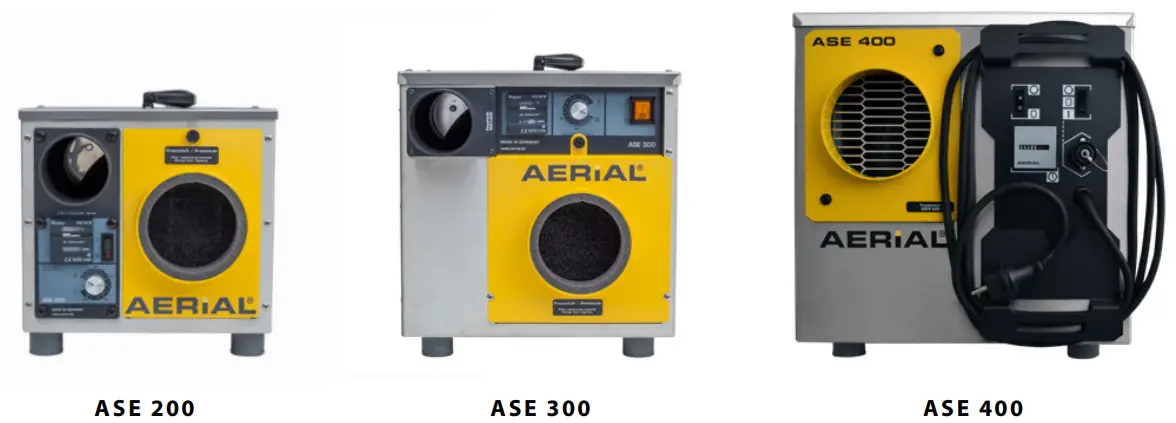

PORTABLE ADSORPTION DEHUMIDIFIERS

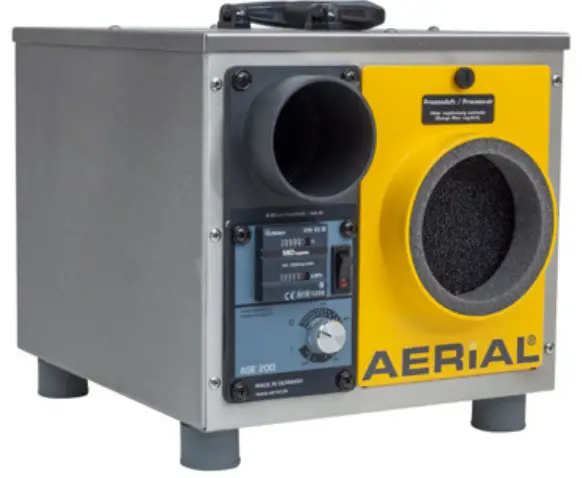

ASE 200

The ASE 200 is a robust compact adsorption dehumidifier with a silica gel rotor as standard. Process air is drawn into the dehumidifier and through the rotor, which slowly turns between two sections in the dehumidifier. The silica gel rotor adsorbs the moisture from the air in the drying section. This moisture is removed again by blowing hot air through the rotor in the regeneration section. The process air leaves the dehumidifier as dry air, and the moisture is led out of the room through the regenerated air outlet.

• MID approved energy counter
• Hour counter
• Internal humidistat
• One common fan for process air and regeneration air
• Cabinet in stainless steel / hot galvanized powder coated  steel
• Low weight
• PTC regeneration heater
• Robust and compact metal construction
• Carrying handle
• Easy internal access for service and maintenance
• Four rubber bumpers to fix the unit in place
• Flexible dry air outlet

Optional accessories

	Regeneration air outlet Thermaflex hose 80mm 6000-0004
	Dry air outlet Superflextract hose 50mm 6000-0003

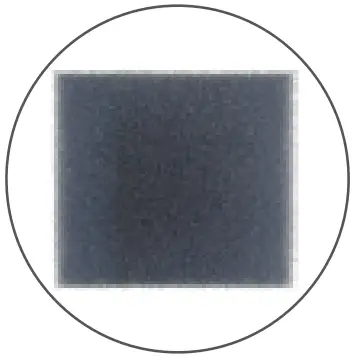

	Spare filter 5107-0005

PORTABLE ADSORPTION DEHUMIDIFIERS
ASE 200

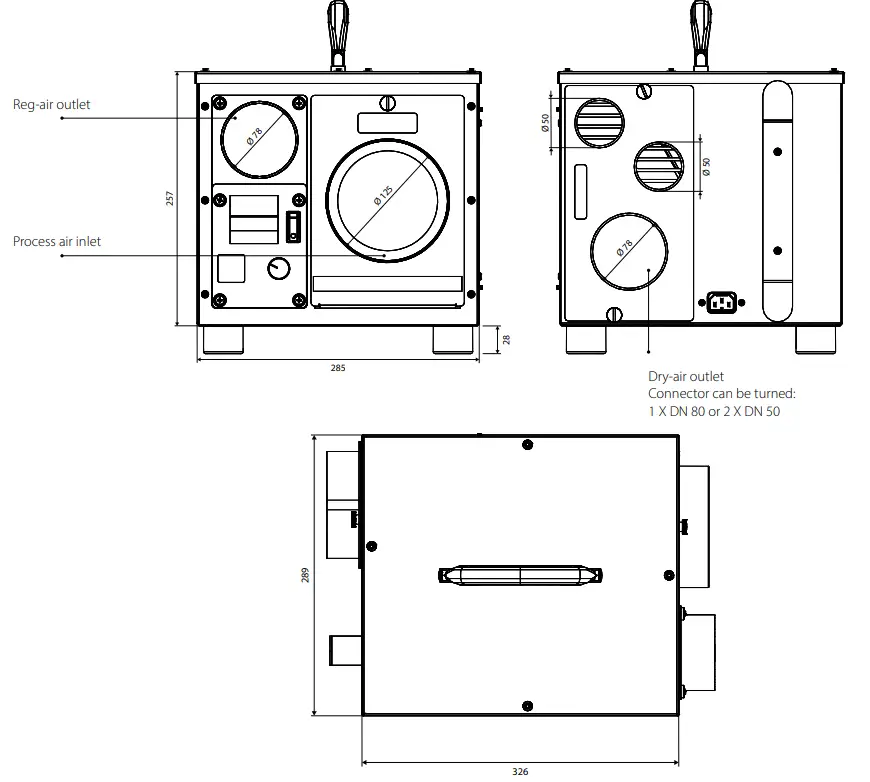

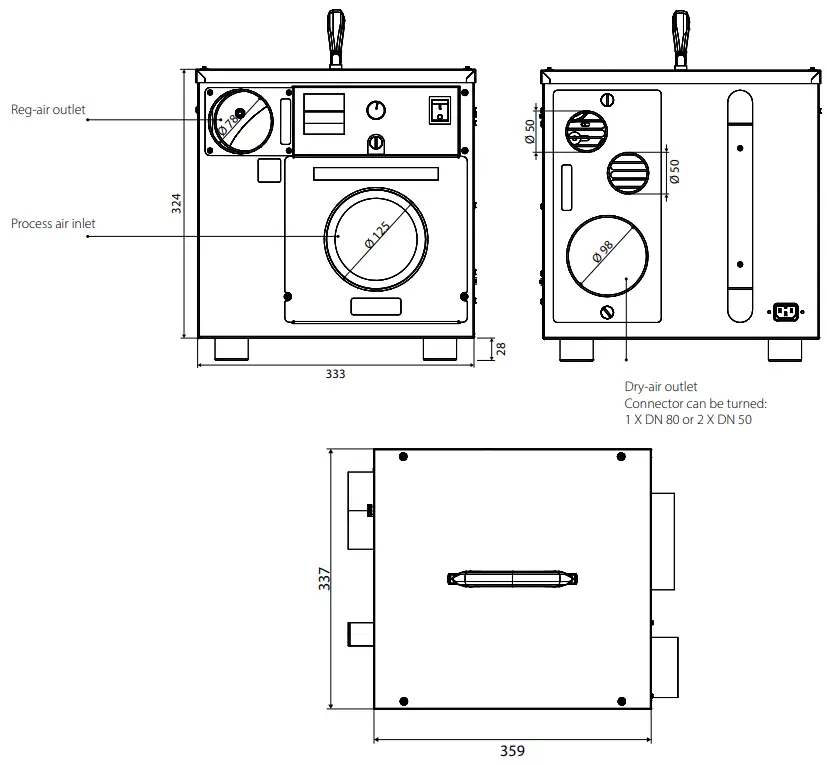

Dimensions

PORTABLE ADSORPTION DEHUMIDIFIERS

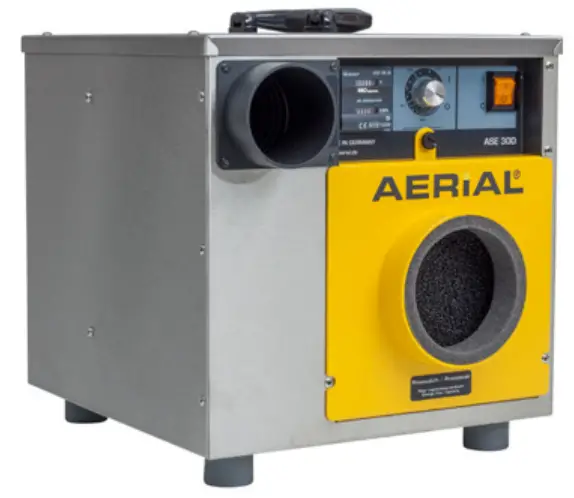

ASE 300The ASE 300 is a robust compact adsorption dehumidifier with a silica gel rotor as standard. Process air is drawn into the dehumidifier and through the rotor, which slowly turns between two sections in the dehumidifier. The silica gel rotor adsorbs the moisture from the air in the drying section. This moisture is removed again by blowing hot air through the rotor in the regeneration section. The process air leaves the dehumidifier as dry air, and the moisture is led out of the room through the regenerated air outlet.

• MID approved energy counter
• Hour counter
• Internal humidistat
• One common fan for process air and regeneration air
• Cabinet in stainless steel / hot galvanized powder coated steel
• Low weight
• PTC regeneration heater
• Robust and compact metal construction
• Carrying handle
• Easy internal access for service and maintenance
• Four rubber bumpers to fix the unit in place
• Flexible dry air outlet

Optional accessories

	Regeneration air outlet Thermaflex hose 80mm 6000-0004 Dry air outlet Thermaflex hose 100mm 6000-0000
	Dry air outlet Superflextract hose 50mm 6000-0003
	Spare filter 5107-0005

PORTABLE ADSORPTION DEHUMIDIFIERS
ASE 300
Dimensions

PORTABLE ADSORPTION DEHUMIDIFIERS

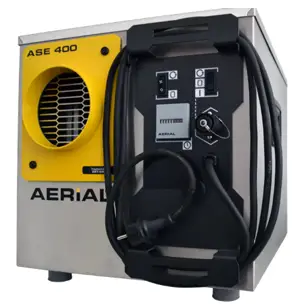

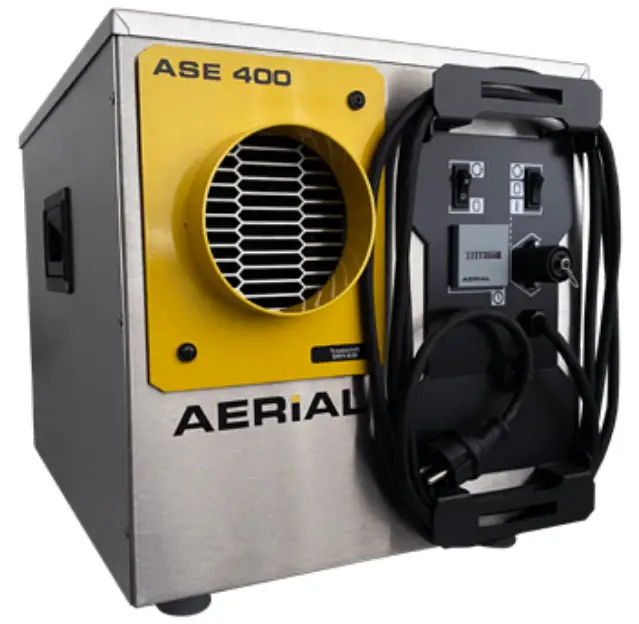

ASE 400

Despite weighing out at just 25 kilos, the ASE 400 is the right choice for applications that require an air change of up to 480m³/h (environments of up to 450m³). That’s 20% more than other units of comparable size that are currently on the market. With its integrated lifting handle and stackable design, the unit has been designed for easy handling and transportation. It comes with a built-in hour counter with an optional MID-approved energy counter. The portable adsorption dehumidifiers can run continuously, or they can be controlled by an external hygrostat.

• Ventilation only mode available – if pre-set humidity level is exceeded, normal dehumidification mode starts (only with optional external hygrostat)
• Sturdy unit made of stainless steel and powder coated sheet steel, supported by four rubber non-marking feet
• Integrated lifting handle and stackable design for easy use
• The rotor unit is easy to remove for cleaning purpose
• Dynamic, safe and self-regulating PTC heating element
• Energy-efficient radial fan
• High-performance ECODRY G3-MH rotor for maximum water absorption
• Air filter on the process air inlet
• Noise reduced via integrated silencer: 60 dB
• Connection for external hygrostat
• Non-resettable hour counter

Optional accessories

	Regeneration air outlet Thermaflex hose 80 mm 6000-0004
	Dry air outlet Superflextract hose 125 6000-0012
	Spare filter 5107-0073
	External hygrostat 6109-0040

PORTABLE ADSORPTION DEHUMIDIFIERS
ASE 400
Dimensions
