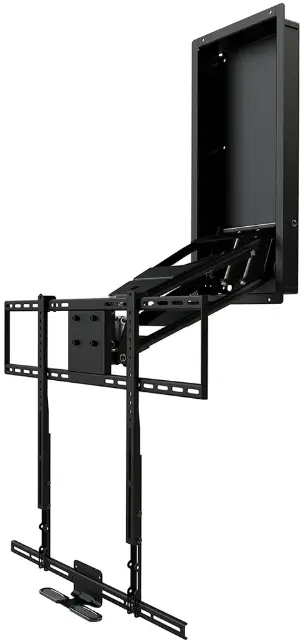

Mantelmount Mm750 Pro Pull Down Tv Mount Installation Guide

MantelMount MM750 Pro Pull Down TV Mount Installation Guide

MM340 SPECS

• Max. lowering distance can vary depending on installation configuration
• Non-Recessed / Recessed
• The total weight of the TV plus any sound bar added cannot exceed the top of range limit

BEFORE INSTALLATION

Verify TV and mount space meet these criteria:

SCREEN SIZE
44″ to 80″
(Diagonally)

WEIGHT CAPACITY 20 to 90 LBS.
(Including Sound Bar)*
“MM340 requires accessory for sound bar, visit mantelmount.com.

VESA COMPLIANT
Width: 200-600mm Height: 200-600mm

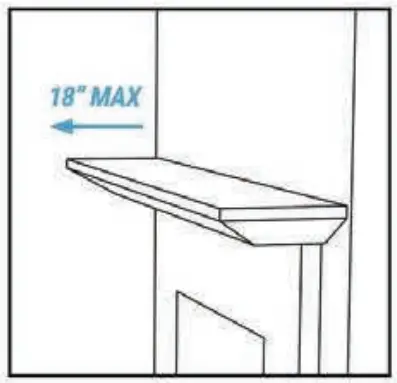

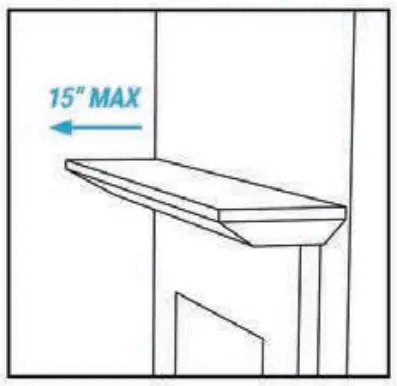

MANTEL DEPTH 18″ MAXIMUM

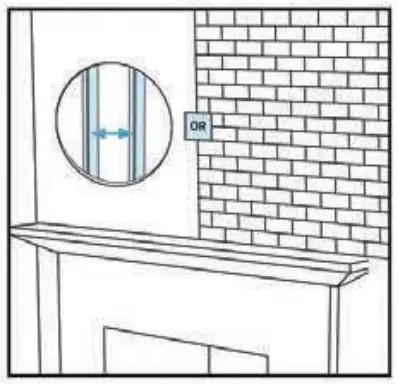

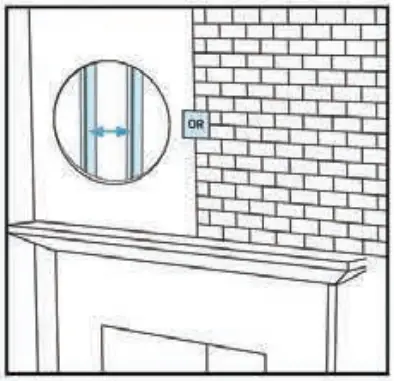

MantelMount can be installed in standard drywall using studs or to brick/stone using concrete anchors.

Verify MantelMount will fit the wall space.

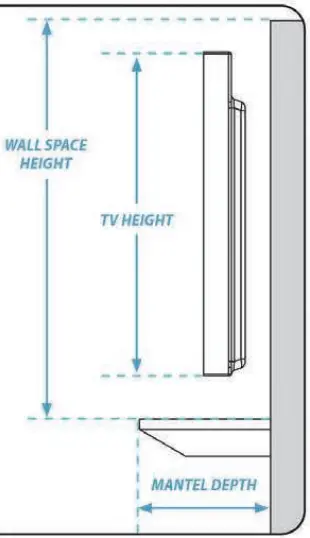

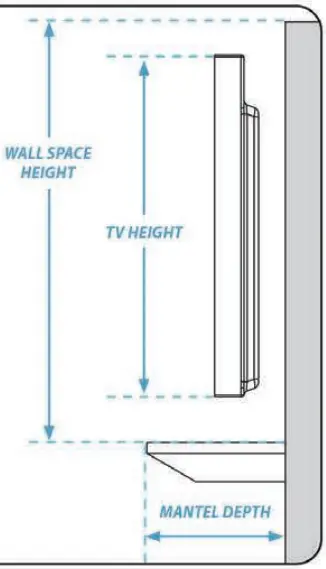

A. Use the reference diagram (right) and chart (below) to write down the following measurements (in inches):

Wall Space Height: ________________ (Distance from mantel to ceiling/crown molding.)
TV Height: ________________ (include sound bar height if placing below TV.)
Mantel Depth: ________________ (Distance mantel extends away from the wall.)
Required Vertical Space: ________________ (Calculation from chart below.)

B. If the Required Vertical Space is less than or equal to the Wall Space Height, then MantelMount will fit the wall space.

MM540 SPECS

• Max. lowering distance can vary depending on installation configuration
• Non-Recessed / Recessed
• The total weight of the TV plus any sound bar added cannot exceed the top of range limit

BEFORE INSTALLATION

Verify TV and mount space meet these criteria:

SCREEN SIZE 44″ to 80″
(Diagonally)

WEIGHT CAPACITY 20 to 90 LBS.
(Including Sound Bar)

VESA COMPLIANT
Width: 200-600mm
Height: 200-600mm

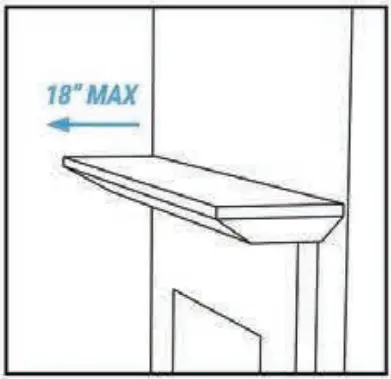

MANTEL DEPTH 18″ MAXIMUM

MantelMount can be installed in standard drywall using studs or to brick/stone using concrete anchors.

Verify MantelMount will fit the wall space.

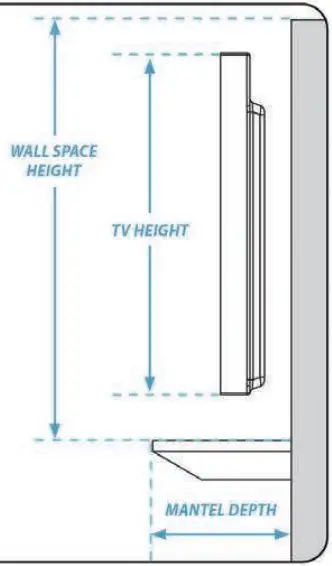

A. Use the reference diagram (right) and chart (below) to write down the following measurements (in inches):

Wall Space Height: ________________ (Distance from mantel to ceiling/crown molding.)
TV Height: ________________ (include sound bar height if placing below TV)
Mantel Depth: ________________ (Distance mantel extends away from the wall.)
Required Vertical Space: ________________ (Calculation from chart below.)

B. If the Required Vertical Space is less than or equal to the Wall Space Height, then MantelMount will fit the wall space.

MM700 SPECS

• Max. lowering distance can vary depending on installation configuration
• Non-Recessed / Recessed
• The total weight of the TV plus any sound bar added cannot exceed the top of range limit

BEFORE INSTALLATION

Verify TV and mount space meet these criteria:

SCREEN SIZE 45″ to 90″
(Diagonally)

WEIGHT CAPACITY 30 to 115LBS
(Including Sound BOO

VESA COMPLIANT
Up to 600 X 600

MANTEL DEPTH 1S” MAXIMUM

MantelMount can be installed in standard drywall using studs or to brick/stone using concrete anchors.

Verify MantelMount will fit the wall space.

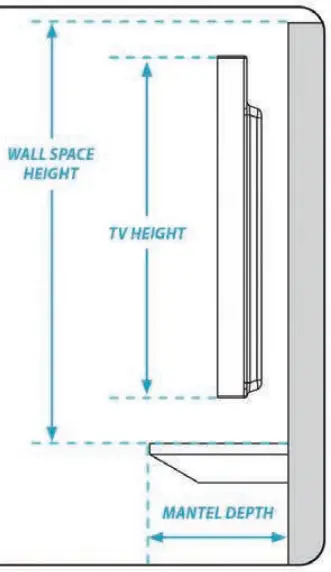

A. Use the reference diagram (right) and chart (below) to write down the following measurements (in inches):

Wall Space Height: ________________ (Distance from mantel to ceiling/crown molding.)
TV Height: ________________ (Include sound bar height if placing below TV.)
Mantel Depth: ________________ (Distance mantel extends away from the wolf)
Required Vertical Space: ________________ (Calculation from chart below.)

B. if the Required Vertical Space is less than or equal to the Wall Space Height, then MantelMount will fit the wall space.

MM750 SPECS

• Max. lowering distance can vary depending on installation configuration
• Non-Recessed / Recessed
• The total weight of the TV plus any sound bar added cannot exceed the top of range limit

BEFORE INSTALLATION

Verify TV and mount space meet these criteria:

SCREEN SIZE 55″ to 100″
(Diagonally)

WEIGHT CAPACITY 30 to 125 LBS.
(Including Sound Bar)

VESA COMPLIANT
Width: 200-600mm
Height: 200-600mm

MANTEL DEPTH 19″ MAXIMUM

MantelMount can be installed in standard drywall using studs or to brick/stone using concrete anchors.

Verify MantelMount will fit the wall space.

A. Use the reference diagram (right) and chart (below) to write down the following measurements (in inches):

Wall Space Height: ________________ (Distance from mantel to ceiling/crown molding.)
TV Height: ________________ (Include sound bar height if placing below TV)
Mantel Depth: ________________ (Distance mantel extends away from the wall.)
Required Vertical Space: ________________ (Calculation from chart below.)

B. If the Required Vertical Space is less than or equal to the Wall Space Height, then MantelMount will fit the wall space.
