ASUS PRIME B650-PLUS Motherboard

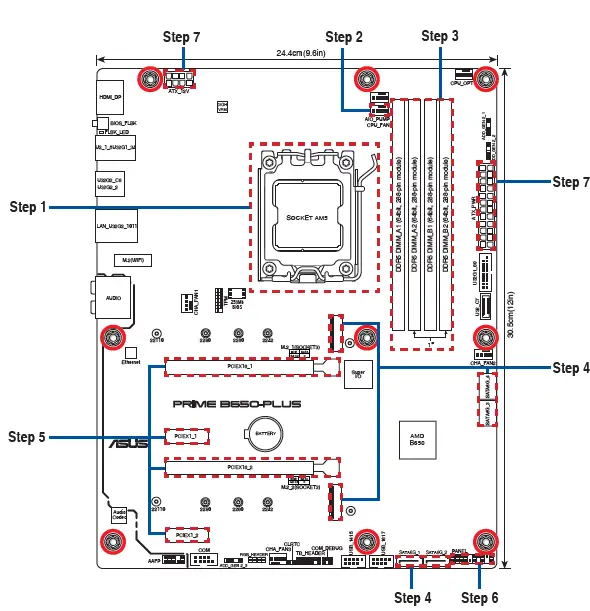

Motherboard Layout
Step 1

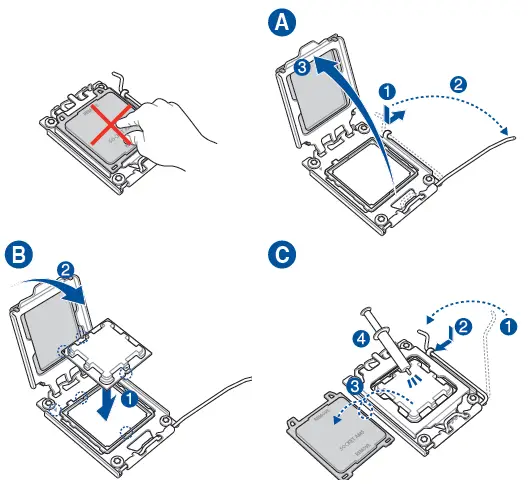

Install the CPU
Step 2

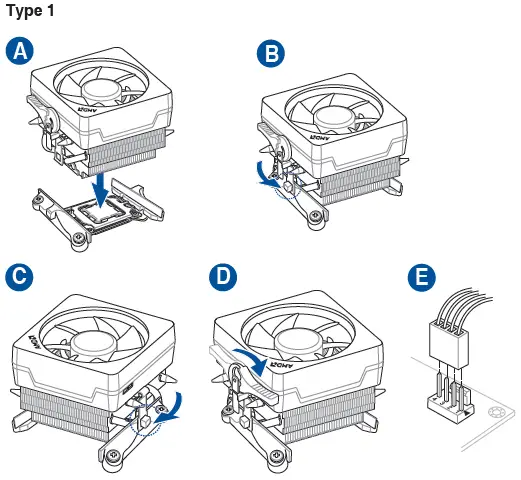

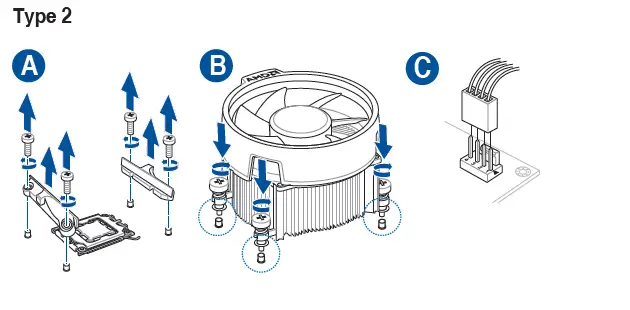

Install the CPU fan
Step 3

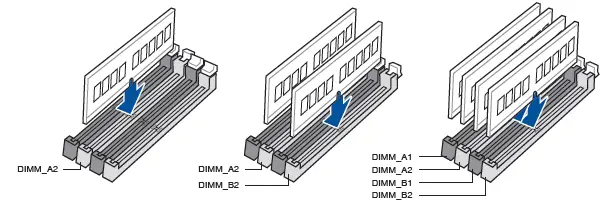

Install memory modules
Step 4
Install storage devices. To install M.2, refer to user guide.
Step 5

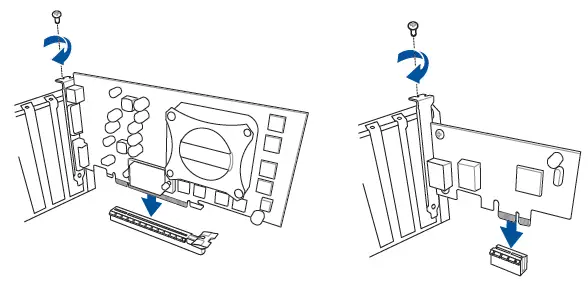

Install expansion card(s)
Step 6

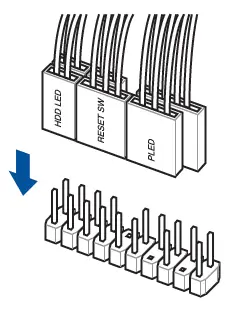

Install the system panel connector
Step 7

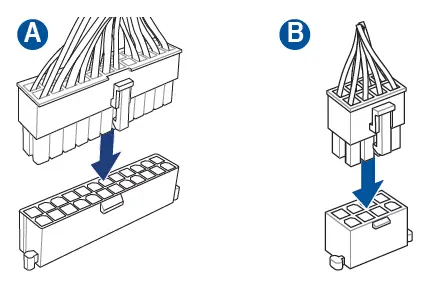

Install ATX power connectors
Step 8

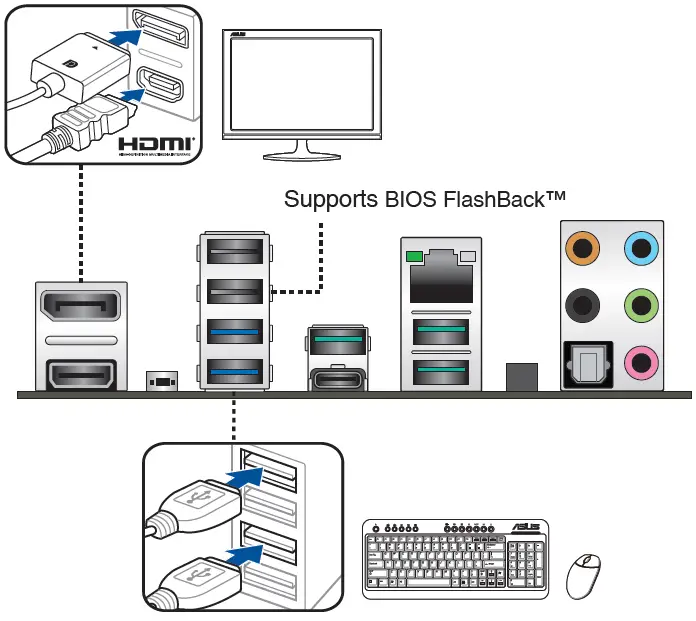

Connect input/output devices
Step 9
Power on the system and install operating system and drivers
