DVDO-Fiber-1 18Gbps HDMI Over Optical Fiber Extender with Audio Extraction
Product Information
Thank you for purchasing this product. This product is HDMI 2.0b, HDCP 2.2, and DVI 1.0 compliant and supports 18Gbps video bandwidth. It can display video resolutions up to 4k2k@50/60Hz 4:4:4 and supports HDMI audio formats such as LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True. This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Therefore, using a
surge protection device is highly recommended to protect and extend the product’s lifespan.
Table of Contents
- 5.1 Transmitter Panel – Page 3
- 5.2 Receiver Panel – Page 5
- 5.3 IR Pin Definition – Page 6
- 6. Application Example – Page 7
Product Usage Instructions
- Before connecting, operating or adjusting this product, please read the instructions carefully for optimum performance and safety.
- Use a surge protection system to protect the product from electrical spikes, surges, electric shock, lighting strikes, etc.
- The Transmitter Panel is located on page 3 of the user manual and the Receiver Panel is located on page 5 of the user manual.
- Refer to page 6 for the IR Pin Definition of the IR Receiver and Blaster pins.
- Refer to page 7 for an Application Example of the product.
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical sp kes, surges, electric shock, lighting str kes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
Introduction
This HDMI Extender can extend HDMI signal up to 33000 feet/10 km (over single-mode fiber cable). It supports video resolutions up to 4K2K@60Hz 4:4:4. Transmitter supports loop output, audio embedding and EDID management function. Receiver supports audio extracting function. In addition, the extender supports bidirectional IR control and RS-232 signal pass-through. It can allow you to easily control the display device on the signal source side or control the signal source device on the display side when using this extender.
Features
- HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- Video resolution up to 4k2k@50/60Hz 4:4:4
- HDMI audio formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Support 3D and HDR format video, does not support CEC control
- Transmission distance up to 33000 feet/10 km (over single-mode fiber cable)
- Support bidirectional IR control, RS-232 pass-through and EDID management for simple and convenient control
- Transmitter supports loop output (sharing local HD video and audio) and audio embedding function
- Receiver supports audio extracting output function
- Compact design for easy and flexible installation
Package Contents
- 1 x 18Gbps HDMI over Optical Fiber Extender (Transmitter)
- 1 x 18Gbps HDMI over Optical Fiber Extender (Receiver)
- 1 x IR Blaster cable (1.5 meters)
- 1 x IR Receiver cable ( 1.5 meters)
- 2x 5V/1A Power adapter
- 2x 3-pin 3.81mm Phoenix connector
- 1 x User Manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidlth | 18Gb ps |
| Video Resolution | 480i ~1080p50/60Hz,4Kx2K@24/30Hz, 4k2k@60Hz |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDMI Audio Formats | LPCM2/5.1f7.1CH, Dolby DigitaVPlus/EX, Do lby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res. DTS-HD Master Au<lio, DSD |
| Transmission Distance | Up to 33000 feeU1o km over single-mode fiber cable |
| IR Frequency | 20KHz-60KHz |
| RS-232 Bandwidth | 4800-115200bps |
| ESD Protection | Human body model – ±8kV (Air-9ap <discharge) & ±4kV (Contact <discharge) |
| Connection | |
| Transmitter | Input:
Output: 1 x HDMI OUT [Type A 19-pin female)
|
| Receiver | Input: 1 x Optical Fiber In [LC female)
Output: 1 x HDMI OUT [Type A 19-pin female)
|
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver. 134mm [W] x 68mm [DJ x 18mm [HJ |
| Weight | Transmitter. 280g, Receiver. 278g |
| Power Supply | Input: AC 100 – 240V 50/GOHz Output: DC 5V/1A(US/EU standards, CE/FCC/U L cert ifi eel) |
| Power Consumption | Transmitter. 3.85 w (Max). Receiver. 2.7 w (Max) |
| Operating Temperature | 32 – 104°F, o – 4o•c |
| storage Temperature | -4 – 140°F, -20 – so·c |
| Relative Humility | 20 – 9 0 % RH (no conlensation} |
Operation Controls and Functions

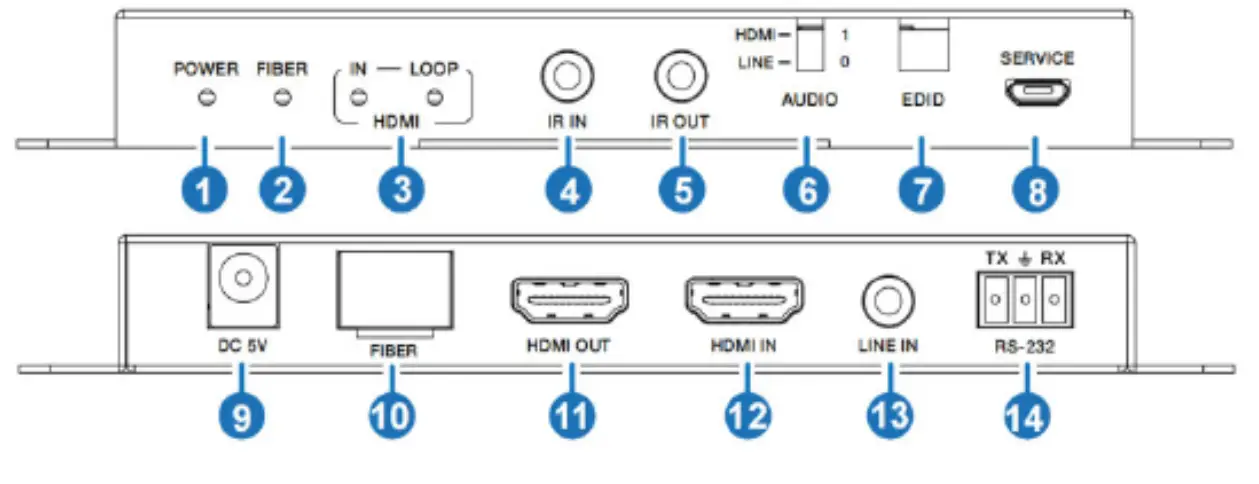

Transmitter Panel
| No. | Name | Function Description |
| 1 | Power LED | The power indicators always on when the Transmitter is powered on. |
| 2 | FIBER LED | The optical fiber connection indicator is always on When the Transmitter and Receiver establish a normal optical fiber signal connection. |
| 3 | HDMI LED | IN: The HDMI signal input indicator is always on when there is signal input on the HDMI IN port. |
| LOOP: The HDMI loop output indicator is always on when the HDMI OUT port of the Transmitter outputs signals to the HDMI display device. | ||
| 4 | IRIN | Connect to IR Receiver cable. The IR signal will send to the IR OUT port of the Receiver. |
| 5 | IR OUT | Connect to IR Blaster cable. The IR signals from the IR IN port of the Receiver. |
| 6 | AUDIO switch | Switch to select audio signal source (HDMI IN or LINE IN). When there is no video signals input, audio signals can be transmitted separately. |
| 7 | EDID DIP switch | Dial he switch to set EDID. 11: Copy RX HDMI OUT
|
| 8 | SERVICE port | Firmware update port. |
| 9 | DC5V | DC5V/1Apower supplyport |
| 10 | FIBER | Connect the Transmitter optica l fiber module, and transmit signals to the Receiver via an optical fiber cable |
| 11 | HDMIOUT | HDMI Video loop output port, connect to HDMI display device such as TV or Projector with an HDMI cable. |
| 12 | HDMIIN | HDMI signal input port, connect to HDMI source device such as DVD or PC with an HDMI cable. |
| 13 | LINE IN | Audio signal input port, connect to audio source device such as MP3. |
| 14 | RS-232 | RS-232 signal pass-through port for transmitting RS-232 command signals between the Transmitter and Receiver. |

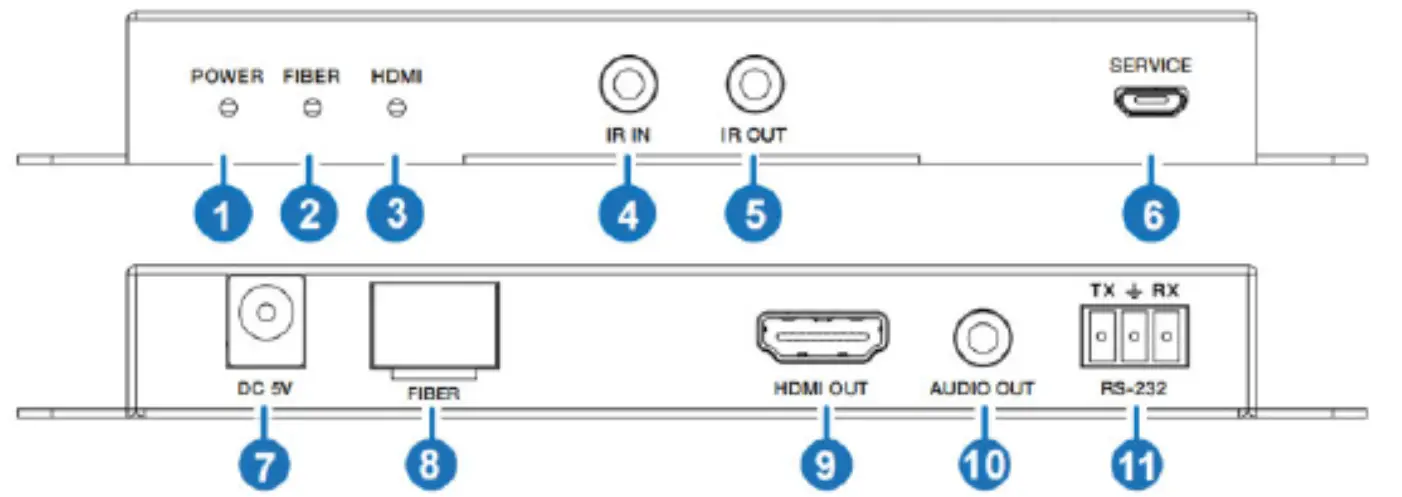

5.2 Receiver Panel
| No. | Name | FunctionDescription |
| 1 | Power LED | The power indicator is always on when the Receiver is powered on. |
| 2 | FIBER LED | The optical fiber connection indicator is always on When the Transmitter an<! Receiver estabi Sha nonnal optical fiber signal connection. |
| 3 | HDMI LED | The HDMI signal output indicator is always on when the HDMI OUT port of the Receiver outputs signals to the HDMI display CleVice. |
| 4 | IRIN | Connet to IR Receiver cable. The IR signal will send to the IR OUT port of the Transmitter . |
| 5 | !R OU T | Connect to IR Blaster cable. Toe IR signal is from the IR IN port of theTransmitter. |
| 6 | SERVICE port | Firmware upelate port. |
| 7 | DC 5V | DC 5V / 1A power supply port |
| 8 | FIBER | Connect the Receiver optical fiber module, and receive signals from the Transmitter via an optical fiber cable. |
| 9 | HDMIOUT | HDMI signal output port, connect to HDMI display device such as HDTV or Projector with an HDMI cable. |
| 10 | AUDIO OUT | Audio signal extracing output port (extract the HDMI OUT audio signal), connect to audio output device such as amplifier or speaker. |
| 11 | RS-232 | RS-232 signal pass- through port for transmitting RS-232 command signals between the Transmitter and Receiver. |
IR Pin Definition

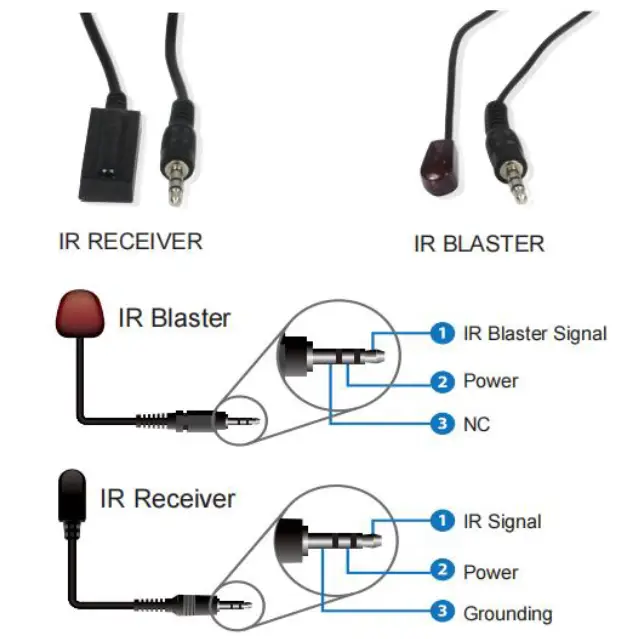

IR Receiver and Blaster pin’s definition as below:

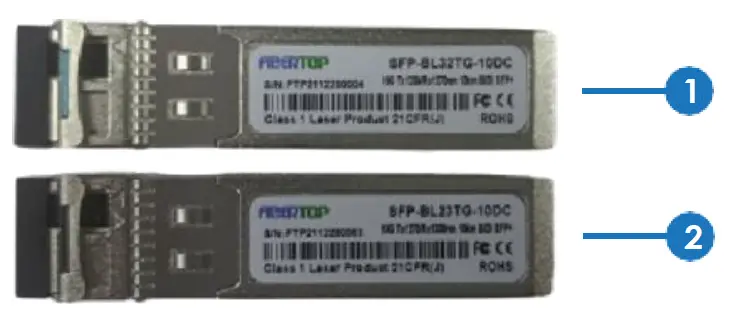

Optical Fiber Module
- SFP-BL32TG-10DC is the optical fiber module of the Transmitter.
- SFP-BL23TG-10DC is the optical fiber module of the Receiver.

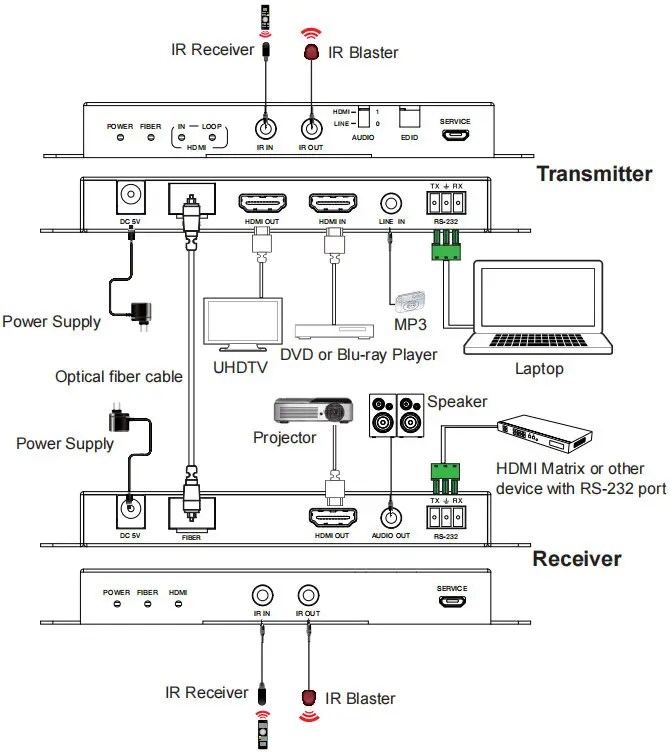

Application Example
The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
