Voltero Ps12 1000wh 1200w Portable Power Station User Manual

1200W Portable Power Station
Ideal portable emergency power for outdoor camping and home use

100~120V/220~240V
User Manual

Disclaimer

1. The Company is not responsible for any damage caused by force majeure (e.g. fire, tyohoon, flood, earthquake or customer’s negligence, abuse or use in other unusual circumstances).
2. The Company is not responsible for the loss caused by the use of non-standard connectors.
3. The Company is not responsible for any damage caused by the wrong operation which didn’t follow the instructions of user manual.

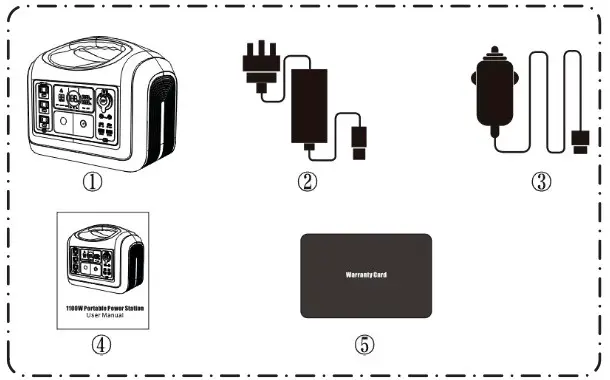

Product List

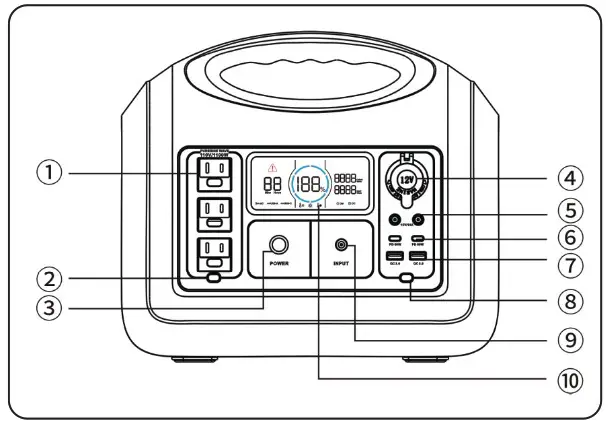

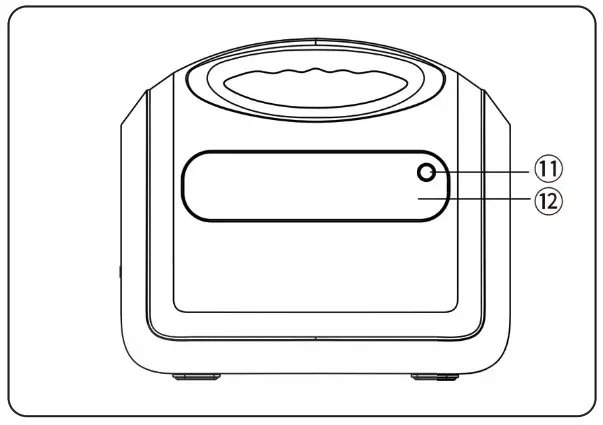

Function Instructions

Function Description

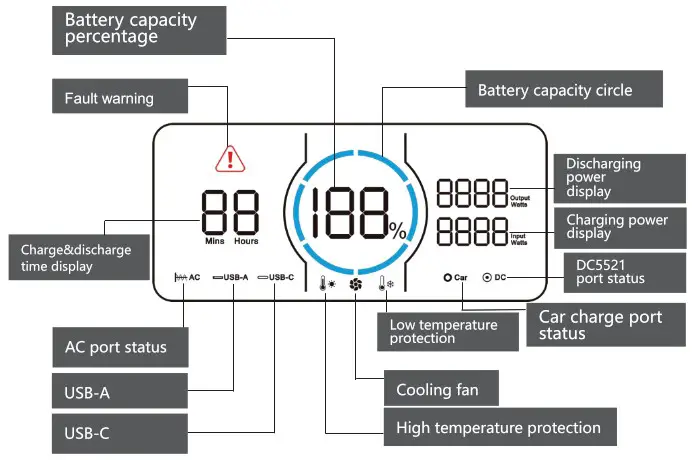

LCD Screen Description

Direction of Use

The LCD Battery Capacity Ring indicates the left capacity. The ring has been divided into 6 equal segments, accounting for about 17%~35%~51%~68%~85%~100%. When discharging, the blue segments of the ring will disappear according to the real-time left capacity. When recharging, the blue ring will be flashed clockwise along the trajectory, and the digital number will show you the real-time input charging power. After full charge, the whole blue ring will light up and remain stable. After charging, please unplug the adapter.

CAUTION

• There will be efficiency loss of the input power which displays 3 on the LCD screen.
• Please charge the Product at the ambient temperature of 0-40°C.
• Must make sure that the connection is in good contact , and adapter work normally, otherwise, it may cause potential safety hazards.
• In order to reduce the power consumption and prolong the battery lifetime of the Product, please turn off all the switches when it Is not in use.

3 Different Recharging Ways

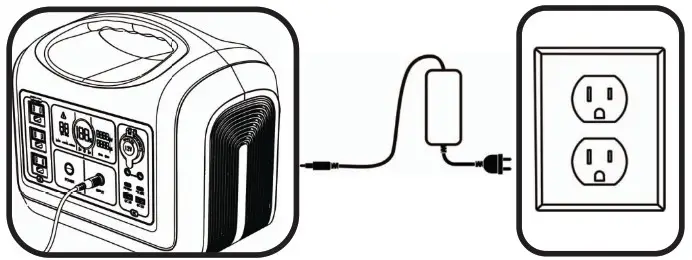

Standard AC Adapter
Please connect the 7909 input charge port of the Product and wall outlet with our standard 200W AC Adapter , it will take about 6.5 house to full charge.

CAUTION
Please use our standard solar panels and adapters to charge the device, otherwise the device may not charge normally. In severe cases, the lifespan will be reduced, and the device may be damaged due to a short circuit.

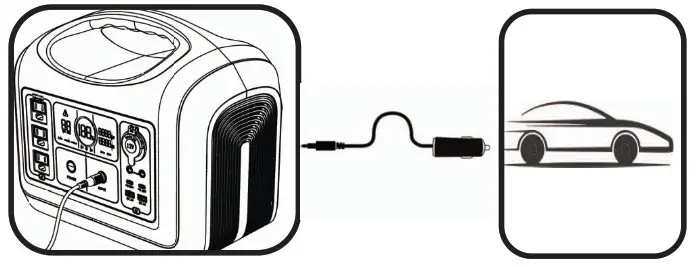

Car Charger
Please connect the input 7909 charging port and the vehicle’s 12V cigarette output port with our standard 7909 transfer cables.
It will take at least 12 hours to full charge.

Solar Panels

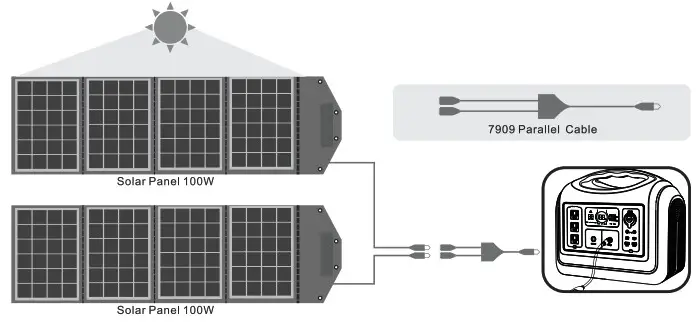

Two 100W solar panels are connected to the 7909 input port of the product by using the 7909 adapter cable of the product accessory 1-2. At this time, the blue energy bar on the screen scrolls and the input power is displayed, which indicates that the product has started charging. The solar charging power that can be input by the product is related to the intensity of illumination. The stronger the illumination, the greater the input power, which can support 240W photovoltaic input at most.

CAUTION
Please use our standard solar panels and adapters to charge the device, otherwise the device may not charge normally. In severe cases, the lifespan will be reduced, and the device may be damaged due to a short circuit.

AC Output Instructions

Main Power Switch

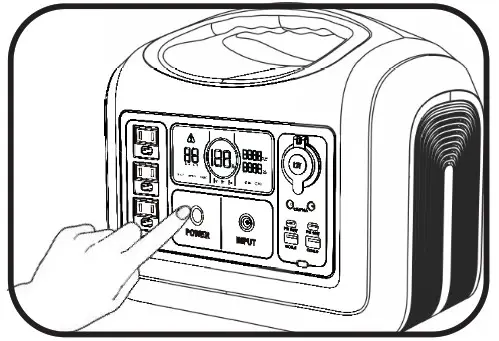

POWER ON: Long press the main power button for 3 seconds, the background light around the button will lit up , and the LCD screen will light up too, the blue battery ring and battery percentage will display.
POWER OFF: Long press the main power button for 3 seconds, the background light and LCD screen will be off at the same time.

AC Output Instructions
When the main power button is turned on, gently press the AC Output button 2 ),the icon in the LCD screen will lit up. It means the function of this area can be used normally. Press this button again, the icon will disappear, and the function of this area will stop working.

DC Output Instructions
When the main power button is on, press the power button 8 all the function in the DC output zone will be activated, and the corresponding icons and on the LCD screen will lit up, the car charge and DC ports in the area can work normally; Press the power button again, the corresponding icons and  the LCD screen will go out, and the functions in the area stop working.

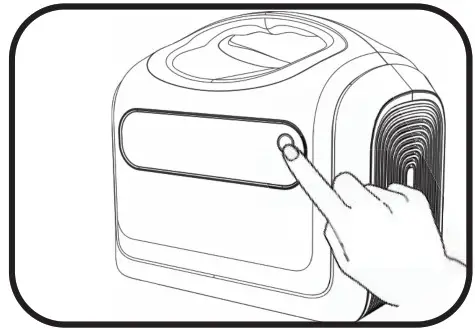

LED Light Instructions

In the main power on state. The power on/off button is on the other side. Press once, 50% brightness, press again, 100% brightness, then press again, it will change to SOS flashing mode, and press once more to power off.

Appliances Run Time Instructions

Icons	appliances	Run time
	3110mAh phone	65 times
	30Wh Tablet PC	29 times
	60Wh Laptop	15 times
	10W Light	87 hours
	16Wh Camera	99 times
	60Wh Drone	15 times
	SOW Mini Cooler	17.5 hours
	SOW Fanner	29 hours
	30Wh Electric Tool	29 times
	10W WIFI	87 hours
	110W TV	7.9 hours
	40W Ventilator	21.8 hours

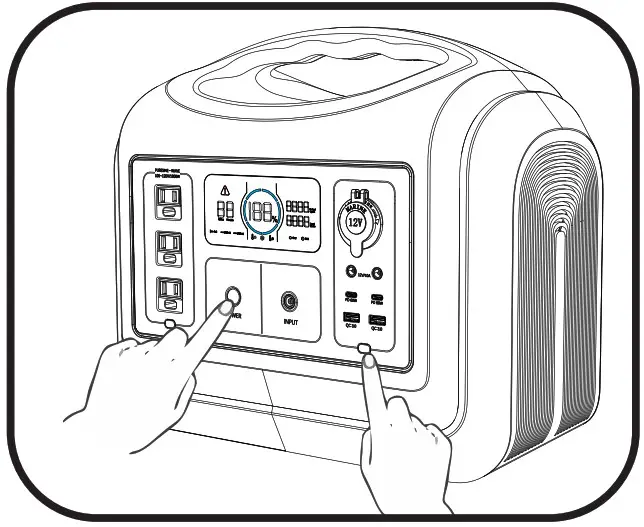

Frequency switching operation

1. In the power-on state, turn off the AC output, and press the main power button & the DC button(USB output) at the same time to enter the switching frequency menu;
2. Press the AC outuput button to switch the frequency, the setting the frequency will be flashing;
3. Long press the main power button to set the frequency, SUC will be displayed if the setting is successful, and then long press the main power button to exit the setting menu.

Storage and Maintenance

• When the device is not in use, please turn off all switches to reduce product power consumption and prolong the product battery lifetime;
• Please keep the surface of the product clean, ensure that the product does not contact gasoline, volatile oil, thinner, kerosene, etc., to avoid corrosion of the product shell;
• Please store the product in a dry, ventilated and dustless environment. Storage temperature range in 0~40°C, avoid direct sunlight;
• Please fully charged the battery before storage, and charge it at least once every 6 months, to avoid dormancy of the battery, which will affect normal use;
• If the product needs to be transported long distance, please keep the battery power between 40%~60%, otherwise there will be potential safety risks.

Main Technical Specification

Output Technical Parameters

Input

Battery

Common Information

Fault Code and Trouble Shooting

Code	Description	Performance	Trouble Shooting
E000	AC Short Circuit Protection	+ flashing, no output	Press the AC Output Power on/off button for recovery.
E001	Over Load Production	flashing, no output	Flashing icons indicates which circuit overload. Press corresponding button for recovery.
E002	Battery Low Voltage Protection	Related function icons flashing , Corresponding terminals no output	Press corresponding button for recovery.
E003	AC&DC Output run simultaneously, system overload	flashing, AC no output	AC&DC Output run at the same time, the total load power is over 1200W. Shut down the AC output, or lower down the load of AC output, priority support the DC output.
E004	Inverter fault	+ flashing, no output	Inverter output voltage too high/low; Inverter over temperature; DC main line voltage too high/low; Loaded current abnormal.
E005	BMS fault	flashing, other function icons Can’t lit up, no output	Charge over voltage protection; Discharge under voltage protection; High Temperature Protection; Low Temperature Protection; Short Circuit Protection.
