IT180-120 Long Endurance Gasoline Airborne Drone
Owner’s Manual

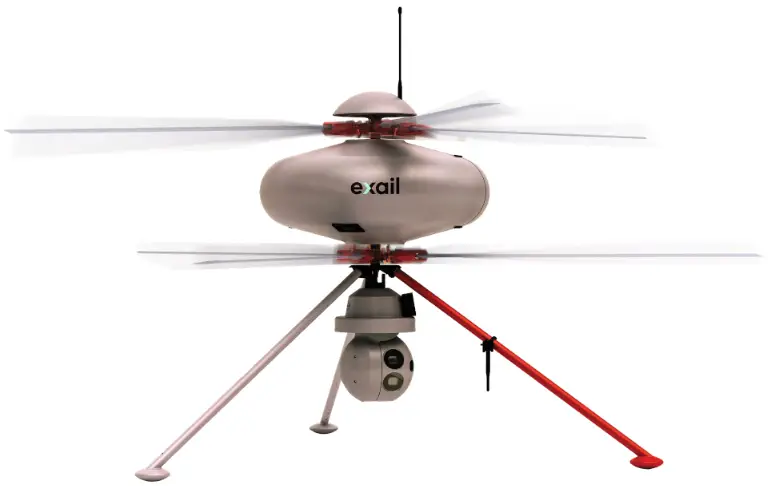

IT180-120 Long Endurance Gasoline Airborne Drone
- Field proven
- Wind resistance up to 60 km/h
- Up to 5 kg payload
- Endurance up to 2 hours
- Communication range up to 50 km
- Automatic take-off and landing
- Autonomous or manual navigation
- Day and night missions
- High stability and robustness
- Quick deployment (max 8 min) and easy of use
TECHNOLOGY
- Gazoline two strokes engine Contra-rotating rotors
- Dual payload slot (bottom & up)
CHARACTERISTICS
The UAV IT180-120 is the gasoline version of the mini VTOL UAV IT180. With an endurance of 120 minutes and up to 5 kg payload, this system is ideally suited to operations requiring robust capacities.
OPERATIONAL PERFORMANCES
The UAV IT180 was designed to be operated despite extremely harsh weather conditions: rain, snow, heat, wind, day and night. It resists to wind gust up to 60 km/h while remaining stable. Its performances allow the UAV IT180-120 to perform long operations, such as surveillance, infrastructure inspection, crop science and mapping with high precision.
| Endurance | Up to 120 min |
| Weight | 16 kg |
| Max speed | 72 km/h (20m/s) |
| Max payload | 5 kg |
| Operating temperature | -10°C to 40°C |
| Max ceiling | 3 000 m (9 000 ft) |

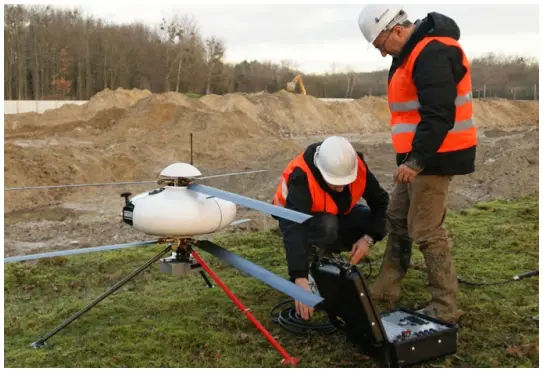

Quick Deployment and Ease of use.
The UAV IT180 can be deployed in less than 10 minutes and operated from the intuitive interface of the Ground Control Station, on which data are displayed in real time.

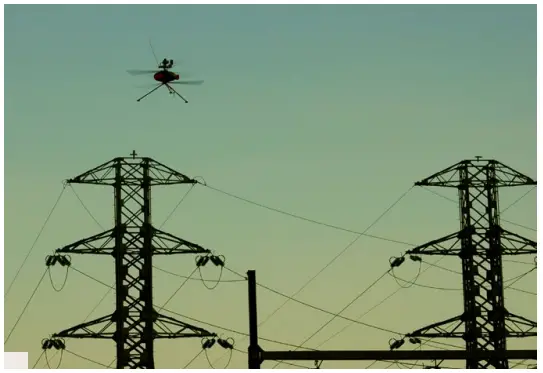

Long endurance and heavy payloads.
With an endurance of 120 minutes and the capacity to carry up to 5kg payloads, the UAV IT180-120 can perform a wide range of missions, in particular inspection.
OPTIONS
- Transmission range up to 50 km
- Gyrostabilized EO/IR video camera
- Digital still camera
- Magnetometer, LiDAR
- CBRN Sensors
- Other payloads upon request
