MTM-300 Cross Measuring Table Owner’s Manual

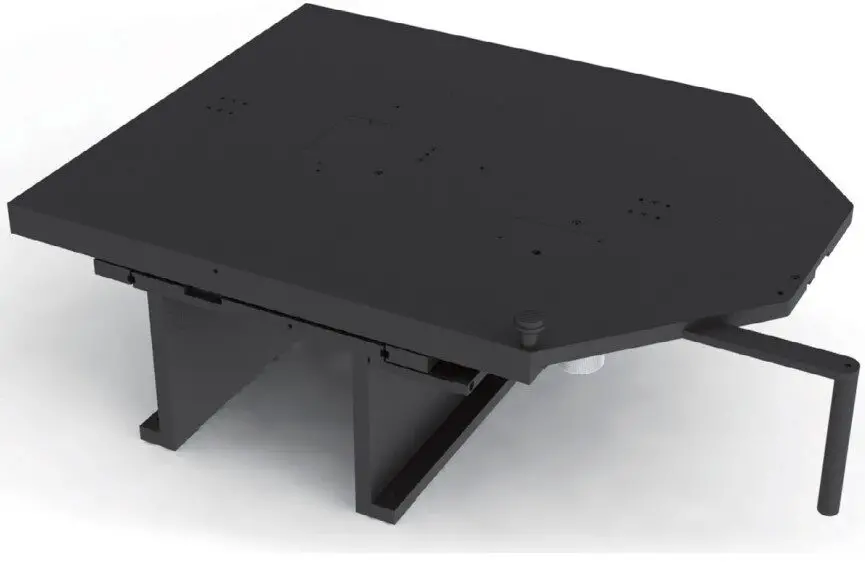

Manual Measuring Stage MTM 300 × 300 MR with Integrated Measuring System
| Specifications | |
| Measuring range | 300 × 300 mm (12“ × 12“) |
| Accuracy | ±5 µm |
| Resolution | 0.05 µm (smallest step size) |
| Drive | coaxial drive / rack – pinionwith patented coarse adjustment |
| Material | aluminium |
| Surface | anodic coating, black lacquered |
| Load capacity | 5.0 kg |
| Weight | 18.6 kg |

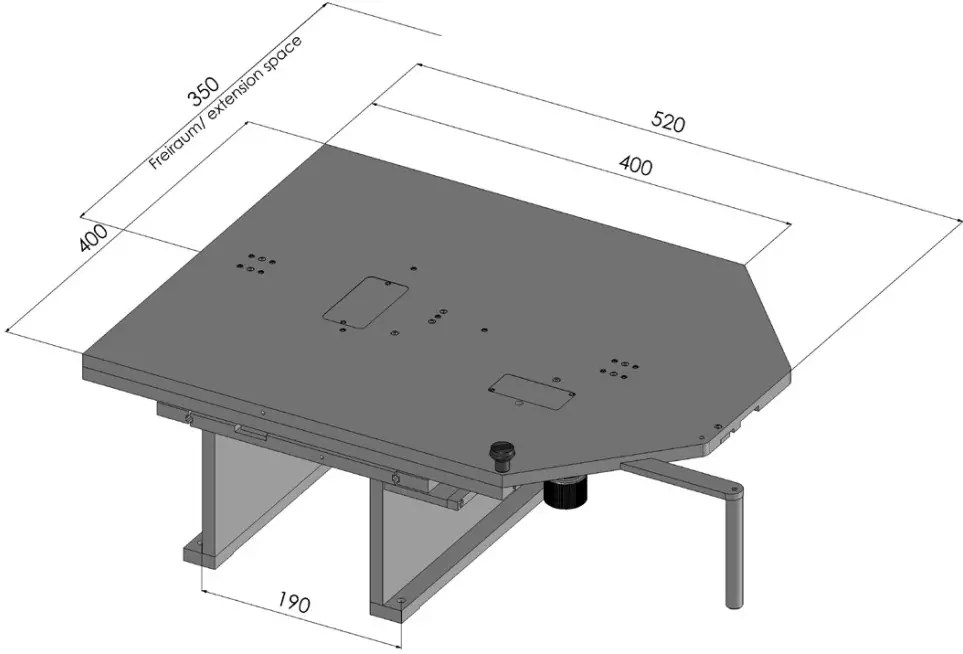

Dimensions
Order Information
- Order No.: MTM-300
Product Features
- with integrated measuring system
- equipped with patented coarse adjustment
- for reflected light applications
Accessories
Digital readout unit PROFILER SCD (included in delivery
Specifications : are subject to change without notice. Issue: February 2018
