B-QUIK Wall Bracket
Instruction Manual
Bill of fittings
- Screw for fastening unit
- Size: MS*30
- Fixings optional

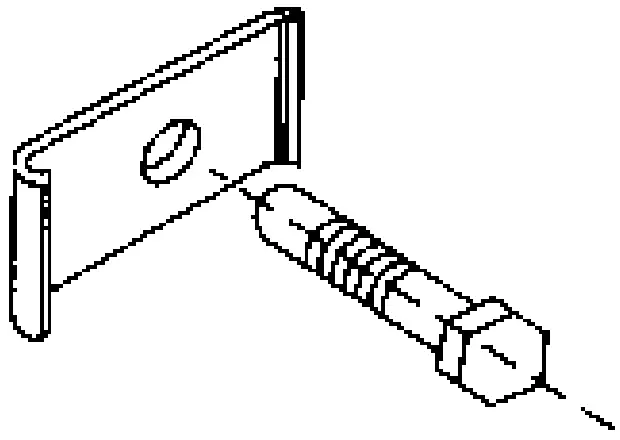

- Screw for fastening the hanging plate and side plate
- Size: M8’60 (1K)
- Size. M8’65 (2K)

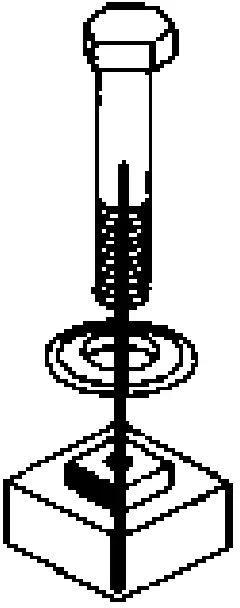

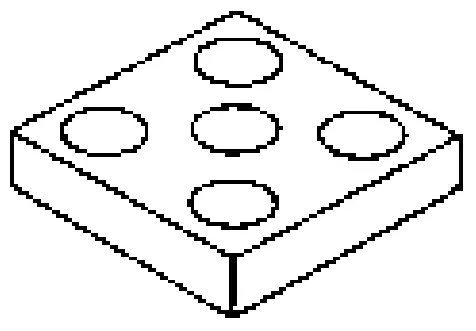

- Anti-vibration to mount 4 pcs
- Size: 40 40118mm
- Fixings Optional

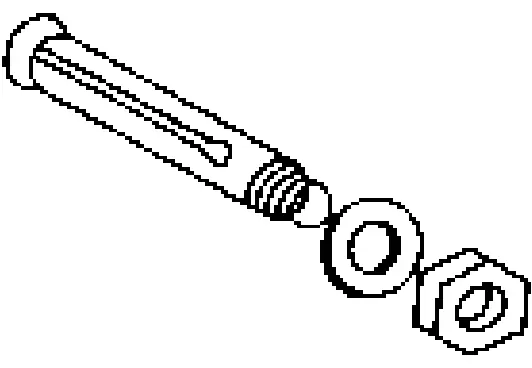

- Saw for fastening the bracket
- Size: M8*30
- Fixings Optional
- Armlock
- 2 pa
- Screw for fastening the fixing plate 2 pa
- Size: M8*30

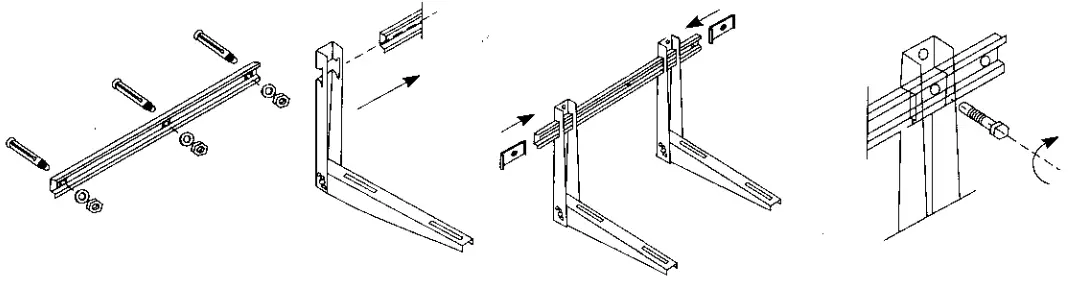

| 1.Fasten crossbar to the wall | 2. Slide arms into the crossbar | 3. Slide arm locks into the crossbar | 4. Insert fastener into each arm lock, do not tighten it yet |
 | |||

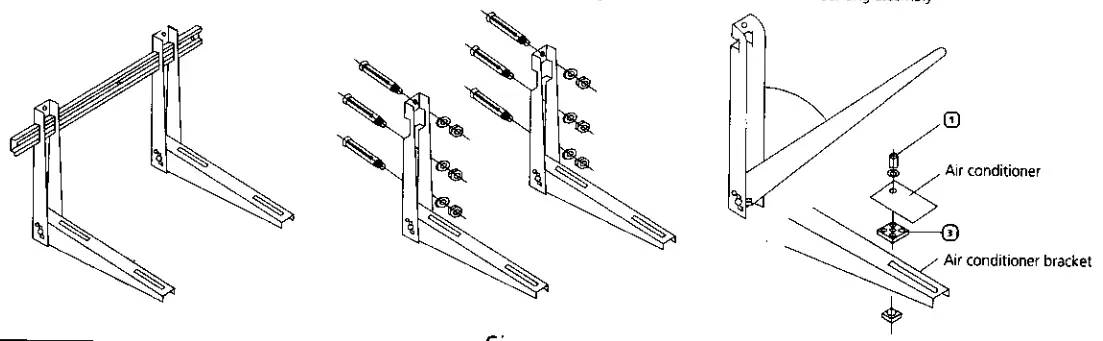

| 5. Adjust arms to suit the air conditioner and tighten the fasteners | [Alternative fitment method] | 6. Unfold the arms down, and tighten hinge bolts. and affix mounting assembly | |
 | |||
Sizer

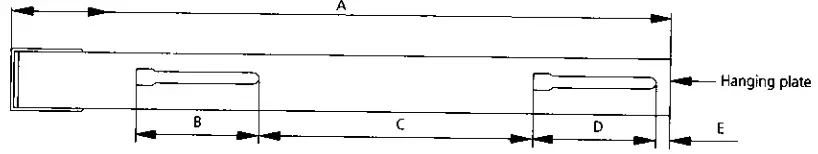

| Weight Capacity | Unit | A | B | C | D | E |
| 100Kg / (2201bs) | mm / (inches) | 450(173/4) | 105(41/8) | 165 (6 1/2) | 74(21/8) | 15 (5/8) |
| 1 50Kg / (331 lbs) | mm / (inches) | 550(215/18) | 105(41/s) | 235 (9 Ye) | 95 (33/4) | 15 (5/g) |
- Ensure that the wall bracket is mounted properly to handle applied loads as wall construction may vary.
- The wall bracket must be securely fixed to the wall with all screws fastened tightly.
- Do not make any modifications to bracket assembly or fixings.
- Item and instructions are subject to change without notice.
- Please check that all screws and bolts are secured tightly before placing the AC unit on the bracket.
