sembly instructions
Ilaria Marelli
ARA DIM TO WARM
CODE 072ARA003000 18/06/2021

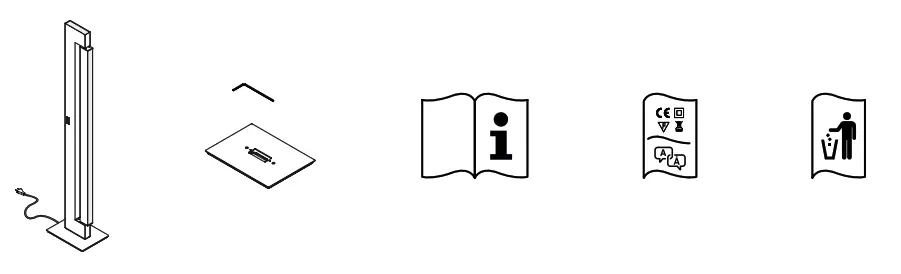

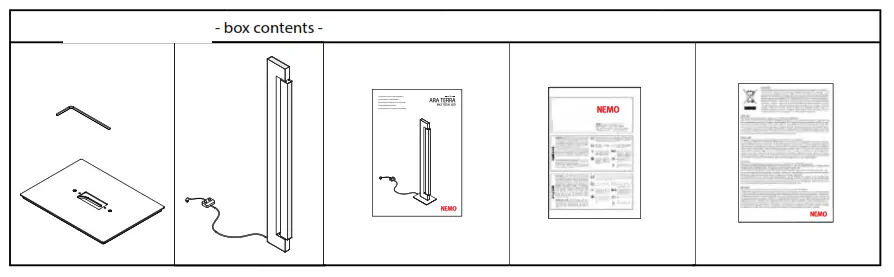

Box contents

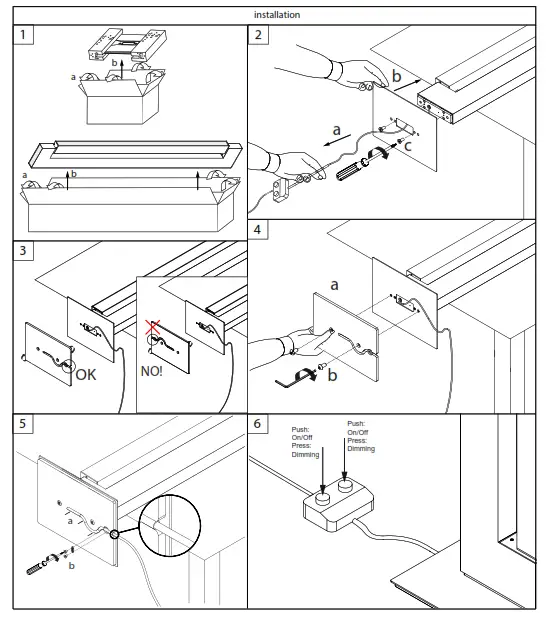

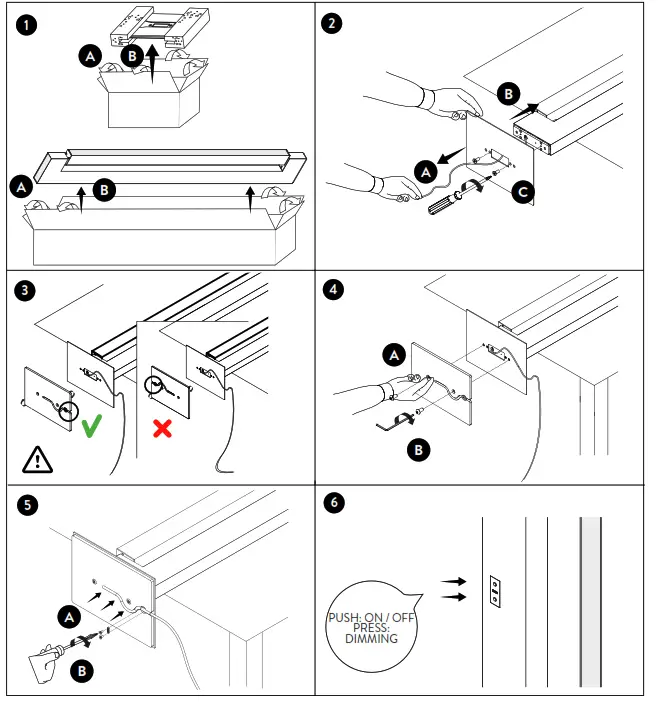

Installation

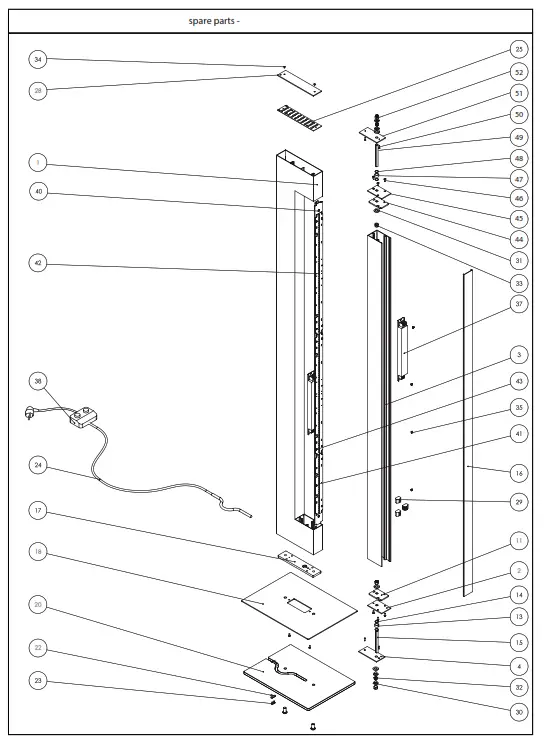

Spare parts
CAUTION
Symbols and guarantees of the fixture are described in the enclosed sheet. / Disconnect power before proceeding with the installation of the fixture. / In the absence of the IP symbol, the fixture is only for indoor installation. / Use only bulbs of a suitable type and power specified in the label. / Safety is guaranteed only if installation is carried out by a qualified electrician. 9 / Products with anodized finishes could show different color shades due to the industrial galvanic process. Shades have to be considered as aesthetic elements of the product. / Polishing process is hand-made. Shades are therefore due to this manual process. / Dimensions of products made with deformations of extrusions could be subject to changes of t1cm. / As blown glass is produced by traditional craft techniques, its thickness, color, and finish are subject to variations,a feature that makes each piece unique. / Do not install fixtures in ambiances with the presence of chlorine, salt air or aggressive agents if mot expressly mentioned. / The color temperature (CCT) of LED sources can be different from the declared nominal value in a range of +5%. / NEMO reserves the right to make any technical or formal alterations to its products without giving prior notice, especially for LED sources. / We recommend you to keep instructions for further consultations. /
This lamp has been manufactured in conformity with EU Directive 2002/96/EC. The crossed-out wheelie bin symbol marked on the appliance means that it was put on the market after 13th August 2005 and that it must therefore be disposed of separately from household waste. Separate disposal of this product prevents any negative effects to public health and the environment deriving from unsuitable disposal and allows the materials it is made of to be recovered to achieve considerable savings of power and resources. The end user is responsible for delivering the appliance, at the end of its working life, to a suitable collection facility. Failure to do so will be punished according to the current national legislation. For detailed information on collection systems and methods, please contact the relative office in your town, the local waste disposal service or the shop where you purchased the product.
Lamping
LED, 72W, Up: 2390lm, Side: 3420lm
CCT range: 2200K / 3000K – CRI: 85 220/240V, 50/60Hz
Dimm: double push on board dim to warm
INSTRUCTIONS FOR LAMP CLEANINGTo clean the lamp, use only a soft cloth, moistened with soap and water, if necessary.
This luminaire contains built-in LED lamps.
This luminaire is sold with a bulb of the energy class:
The lamps cannot be changed in the luminaire.874/2012
Assembly instructions
Design: Ilaria Marelli
ARA TERRA TOTAL LED
18/06/2021
cod. 072ARA100600
LED uplight 23W, 1820lm, 220/230V, 50/60Hz, 2700K, CRI 85, DIMMABLE
LED sidelight 40W, 3060lm, 220/230V, 50/60Hz, 3000K, CRI 85, DIMMABLE
Descriptions of the symbols for this lamp can be found on the sheet enclosed.
WARNING
Cut off the power to the fitting before doing any work. / Fitting is suitable for indoor use only. / Only use bulbs of the type and wattage indicated on the rating plate. / Safety is guaranteed only if the unit is installed by a qualified electrician. / These instructions must be kept in a safe place for future reference. / NEMO s.r.l is not to be held responsible for the products modified without prior authorization.
WARRANTY The lamp you have bought is guaranteed against aesthetic and operating faults for 24 months from the date of purchase. If you have a claim, return the appliance to your dealer with the cash register receipt or invoice showing the date of purchase. For further information on the terms of the guarantee, consult your dealer.
