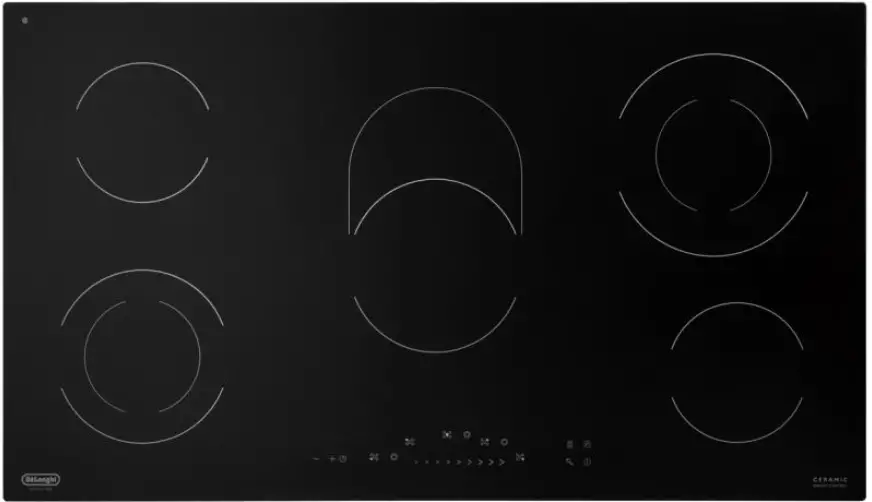

Delonghi PVC 95 N 90cm 5 Zone Life Ceramic Touch Cooktop
INTRODUCTION
- 5-zone touch control
- (2 double, 1 oval extendible)
- 9 Power levels per zone
- Booster & Pause
- Fast heating function
- End of cooking timer
- Electronic touch controls
- Residual heat indicators
- Safety time out on all zones
- Child lock
- Thermal shock-resistant ceramic glass
- Easy-to-clean frameless glass
Ceramic Cooking
- The heating element is formed of a coil of resistant material which reaches the working temperature quickly.
- Easy to clean with simple minimalistic design.

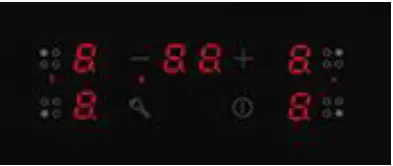

Touch Control
- Intuitive touch control on ceramic glass gives sleek designer lines while also being easy to operate and clean.
Residual Heating
- A residual heat indicator will light up when a cooktop zone heats up and stay lit until it has cooled to a safe touch temperature.
TECHNICAL SPECIFICATIONS
| Product Dimensions (H x W x D) | mm | 4 x 900 x 520 |
| Voltage | V | 220-240 |
| Current | A | 36.95 |
| Left Front Double Zone 180 / 120 mm | W | 1700 / 700 |
| Left Rear 145 mm | W | 1200 |
| Right Front 145 mm | W | 1200 |
| Right Rear Double Zone 210/ 120 | W | 2200 / 750 |
| Centre Double Zone 180 / 260 mm | W | 2200 / 1400 |
| Total Power Consumption | W | 8500 |
| Warranty | 2 years |

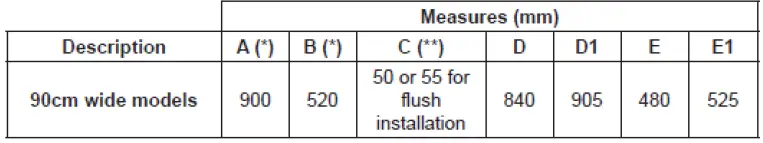

Installation

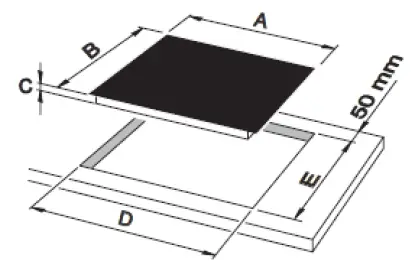

Standard Installation

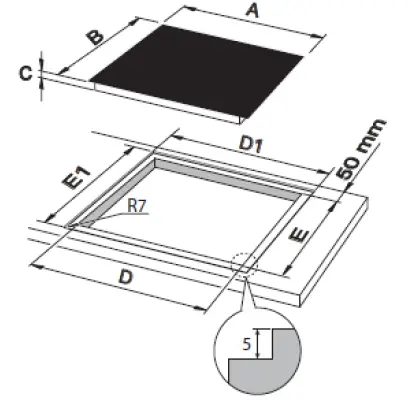

Flush Installation
If you wish to install the hob flush with the work surface, it is necessary to execute a milling in the hole of the cut-out as indicated.
- For models with metal, trim/s add 4mm to the measurement for each trim.
- Example: front metal trim= B+4mm.
- From the top of the countertop to bottom of the cooktop.
The product dimensions and specifications on this page apply to the specific model at the time of issue Dimensions & specifications may change at any time.
Diagrams are a guide only final fitting should be made with actual product.
