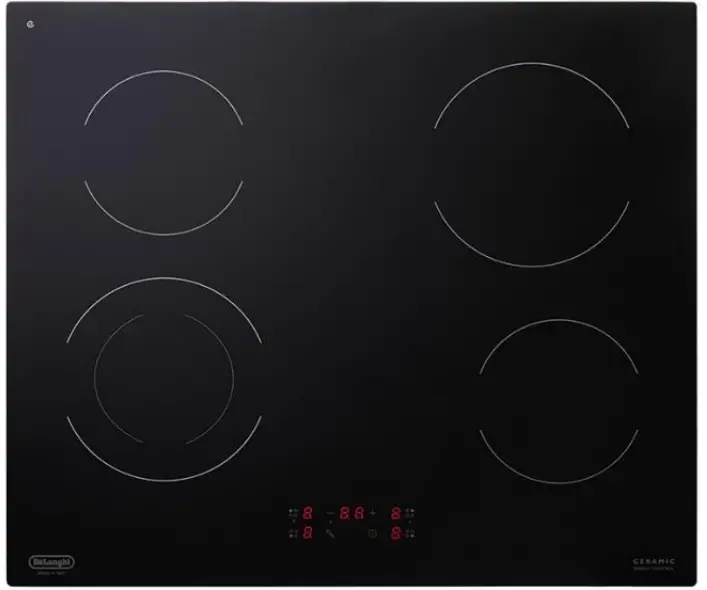

Delonghi PVC 61 N 60cm 4 Zone Life Ceramic Touch Cooktop
Feature
- 4 Zone Touch control (1 double)
- 9 Power Levels per Zone
- Booster
- End of cooking timer
- Electronic Touch Controls
- Residual Heat Indicators
- Safety Time Out on all zones
- Child Lock
- Thermal shock-resistant ceramic glass
- Easy-to-clean frameless glass
INSTALLATION INSTRUCTION

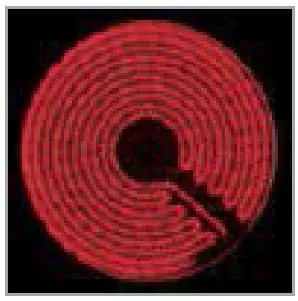

Ceramic Cooking
- The heating element is formed of a coil of resistant material which reaches the working temperature quickly.
- Easy to clean with a simple minimalistic design

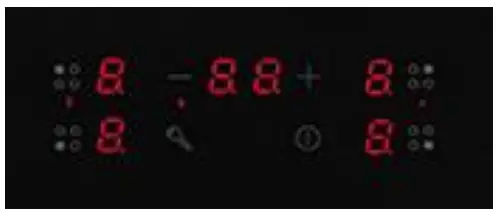

Touch Control
- Intuitive touch control on ceramic glass gives sleek designer lines while also being easy to operate and clean

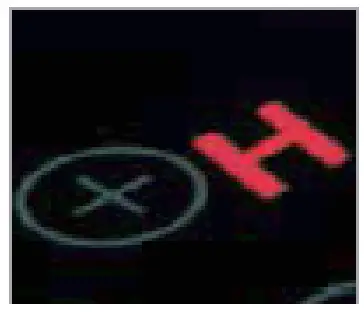

Residual Heating
- A residual heat indicator will light up when a cooktop zone heats up and stay lit until it has cooled to a safe touch temperature.
TECHNICAL SPECIFICATIONS
| Product Dimensions (H x W x D) | mm | 4 x 600 x 520 |
| Voltage | V | 220-240 |
| Current | A | 25.65 |
| Left Front Double 180/120 mm | W | 1700/700 |
| Left Rear 140 mm | W | 1200 |
| Right Front 180 mm | W | 1800 |
| Right Rear 140 mm | W | 1200 |
| Total Power Consumption | W | 5900 |
| Warranty | 2 years |

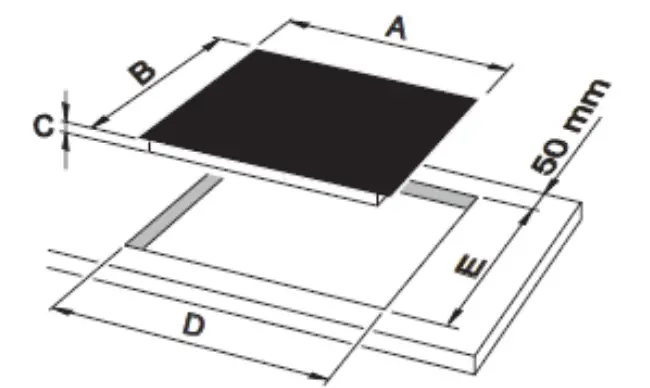

Standard Installation

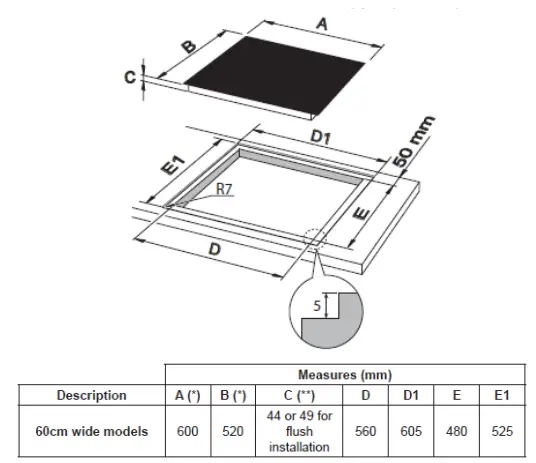

Flush Installation
If you wish to install the hob flush with the work surface, it is necessary to execute a milling in the hole of the cut-out as indicated
- For models with metal, trim/s add 4mm to the measurement for each trim.
- Example: front metal trim= B+4mm. from the top of the countertop to the bottom of the cooktop.
- Diagrams are a guide only final fitting should be made with actual product
