Powerwerx 714-674-0073 PWRbox Mini Portable Power Box
Introduction
Congratulations on purchasing the PWRbox MINI by Powerwerx. This portable power station is ready to use right out of the box. Before using your new power box, we suggest that you first charge the battery (refer to battery charging instructions). This power box is offered in two models, 10Ah and 15Ah. These two models are the same unit but differ when it comes to battery capacity. The 15Ah version provides an additional 50% longer battery life (refer to operational time chart below). This unit is perfect for charging smartphones, tablets, fish finders, handheld GPS, and many other small 12V devices. If the power goes out, or you are camping in a remote location, the PWRbox Mini can keep your favorite small devices powered up and ready to go
Typical Operation Time or Number of Charges for Consumer Devices
| PWRbox-10 | PWRbox-15 | |
| Included Battery Size | 10 Amp Hour (102Wh @ 85%) | 15 Amp Hour (153Wh @85%) |
| Smart Phone (5-8W) | 13-20 Charges | 19-30 Charges |
| Fish Finder (12-24W) | 4-8 Hours | 6-12 Hours |
| Portable GPS (24-36W) | 8-12 Hours | 12-18 Hours |
| Tablet (25-40W) | 2-4 Charges | 3-6 Charges |
| 12VDC Fridge (10-18W) | 5-10 Hours | 8-15 Hours |
| 12VDC Mattress Pump (75W) | Up to 1.5 Hours | Up to 2 Hours |
| QRP HF Radio 12V (80% Rx/20% Tx) | 7-9 Hours | 12-16 Hours |
| VHF Marine Radio 12V (90% Rx/10% Tx) | 7-8 Hours | 11-14 Hours |
| Built-in LED Work Light (3W) | Up to 34 Hours | Up to 51 Hours |

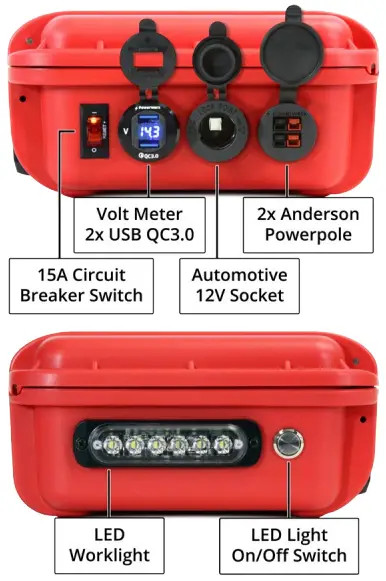

DC Power Up To 15A (switched)
The side mounted red backlit circuit breaker switch is rated at 15 amps maximum and turns on/off power to the blue digital voltmeter, (2) USB fast QC3.0 charging ports, and the automotive 12V socket. The voltmeter and USB charger draw a small parasitic load on the battery even when not in use. For this reason, it is recommended that you turn the red toggle switch to the OFF position when not in use.
High Current DC (non-switched)
(2) Anderson Powerpole connectors, compatible with the PP15/30/45 series, provide high current DC output, wired directly to the battery and protected by an inline fuse.
Built-in LED Worklight
LED worklight with dedicated on/off button. Works as a powerful and portable flashlight
Built-in Battery Status Voltmeter
| 14.5 ~ 13.3V | 100% ~ 80% | Full Battery Level/Charged |
| 13.2 ~ 12.5V | 75% ~ 45% | Medium Battery Level |
| 12.4 ~ 11.5V | 40% ~ 10% | Low Battery Level/Recharge |
Battery Charging
It is recommended that you initially charge your new power box battery for 8-12 hours before use. We also recommend you fully charge your power box at least once a month to maintain the charge. You may safely leave the battery charger connected continuously to your power box. After using your box, it is always recommended you recharge the battery before storage.
Battery Charger Included
Includes AC-DC battery charger with Anderson Powerpole connector. Output 14.6VDC, 2A (CC/CV charge profile for LiFePO4 batteries).
Tips
- Never use your power box to jump start a vehicle, as it may damage the internal battery.
- Always switch the side red power switch to OFF when not in use.
- Close dust covers on the automotive socket, USB charge ports and Powerpole connectors when not in use.
- We recommend you fully charge your power box at least once a month to maintain maximum charge.
Troubleshooting
Unit will not turn ON
• Check And replace the internal ATO blade battery fuse with the same (20A or 30A) ATO fuse if needed, retry.
• Recharge battery until resting voltage is at least 13.4V. Red breaker switch trips OFF
• Reduce current draw going through 12V cigarette socket to less than 14 amps total, retry.
• Unplug all devices, turn red rocker switch OFF, then ON. Now, try plugging in your devices.

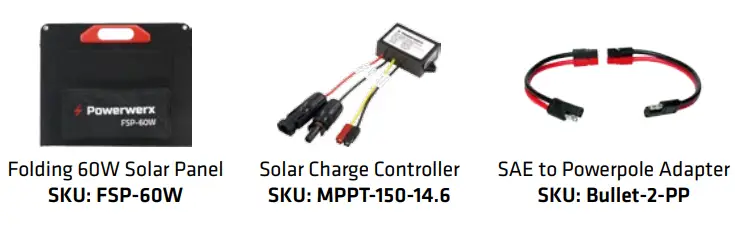

Optional Accessories
Specifications
| PWRbox-10 | PWRbox-15 | |
| Battery Capacity | 10 Amp Hours | 15 Amp Hours |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) | |
| Battery Protection | 20 Amp Inline Fuse | 30 Amp Inline Fuse |
| Max Current (Auto Socket) | 15 Amps | 15 Amps |
| Max Current (Combined) | 20 Amps | 25 Amps |
| Nominal Voltage | 12 Volts | |
| Charging Voltage | 14.6 Volts (CC/CV charge profile for LiFePO4 batteries) | |
| Dual USB Outputs | Up to 2.6A @ 5V USB device charging. Supports QuickCharge QC3.0, QC2.0, BC1.2, Apple, Samsung Adaptive Fast Charge Protocol (AFC) and Huawei Fast Charging Protocol (FCP) | |
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) | |
| Exterior Dimensions | 10.75 in. L x 8.9 in. W x 4.5 in. H (273 mm x 226 mm x 114 mm) | |
| Weight | 5.4 lbs. (2.5 kg) | 7.0 lbs. (3.2 kg) |
