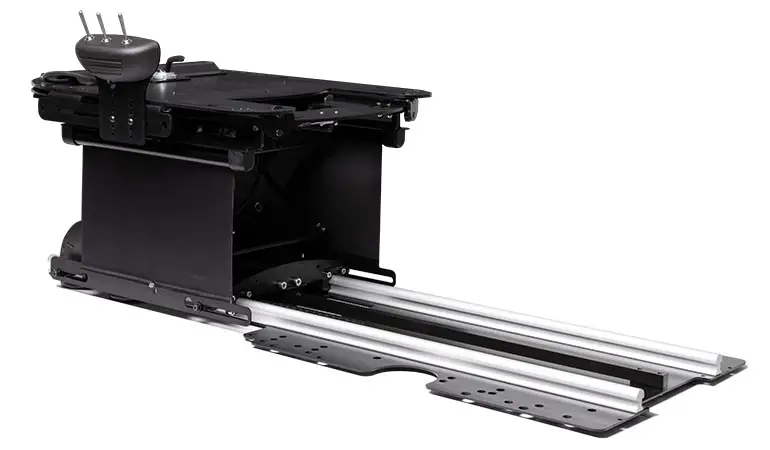

BraunAbility 427615 Turny 6 Way Wheelchair
BraunAbility 427615 Turny 6 Way Wheelchair
Product data
- Length*……………………………………………………………………………………. 1150 mm
- Width………………………………………………………………………………………… 430 mm
- Height……………………………………………………………………………….. 170-347 mm
- Comfort adjustment………………………………………………………………704 mm
- Vertical travel…………………………………………………………………………… 177 mm
- Swivel range**………………………………………………………….. 0-140° / 0-120°
- Weight capacity***………………………………………………………………….. 180 kg
- Unit weight, without seat and accessories…………………………. 54 kg
- Operating voltage………………………………………………………………………….. 12V
- Fuse…………………………………………………………………………………………………….. 30A
Product data
* can be reduced 45-190 mm by installer if needed.
** differs between left (140°) and right (120°) side installation.
*** refers to the total weight of the seat, its accessories and the user
Care instructions
- As necessary……………………………………………………… Carefully wipe off and vacuum clean the Turny 6-Way. Do not use any liquids
- Once every two years…………………………………… We recommend to contact your dealer for an overhaul.
Troubleshooting
- Turny 6-Way is not working Check that /
– the fuse has not blown and that the vehicle´s battery is charged up.
– there is no obstruction blocking the selected movement.
If the problem remains, contact your dealer - Forward/backward movement is working slower than usually.
Probably time for re-lubrication of the aluminum profiles. Contact BraunAbility
Support for futher help (lubrication art no 407611). - Left/right toggle switch is working despite the vehicle’s ignition is turned on.
Contact your dealer. - Discordant sounds are heard during operation.
Contact your dealer.
