Turny Evo
Seat lift
Thank you for choosing a
Turny Evo from BraunAbility!
The following manual is an important part of the product, providing you with information on how to achieve maximum performance and safe operation. Keep the manual in a safe place so that you can refer to it when necessary.
If you have any questions about your adaptation, please contact your installation engineer. If you want to know more about us and our range of car adaptation solutions visit www.braunability.eu.
Once again, thank you for placing your confidence in our products!
BraunAbility Safety Centre
Accredited test laboratory
www.braunability.eu
Operation
Presentation
Turny Evo has two basic functions: swivel the seat in/out and forwards/backwards movement for comfort. Note that it is not possible to swivel the seat out when the door is closed, nor is it possible to adjust comfort once swivel out has begun.
The path that Turny Evo follows is preprogrammed by your installation technician. In the case of faults or deviations from the preprogrammed path, the seat will stop and cannot be manoeuvred normally. In this event ,Turny Evo loses its position and must be reset through an emergency operation. Should this occur, follow the instructions for “Emergency operation by hand held control”. Once this is completed, Turny Evo will function as normal again. Contact your installation technician if emergency operation must be performed often.
In the case of certain electrical faults, emergency operation with the hand held control will not work. Should this occur, follow the instructions for “Emergency operation with the emergency operation kit”. Always contact your installation technician after a manual emergency operation to remedy the fault before using Turny Evo again.

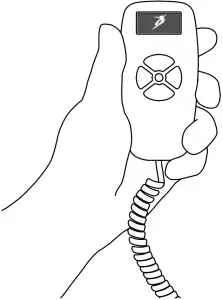

Hand held control
Optional function buttons light up GREEN.
Hold the selected button down. When the seat reaches its preprogrammed end position, it will stop automatically. To stop movement, release the button.

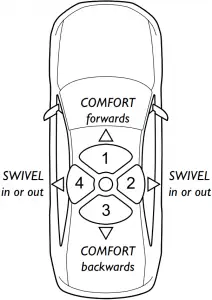

Turny Evo’s location in the vehicle on the right or left side determines the functions of buttons 2 and 4.
During emergency operation or programming, all the buttons will flash RED to indicate that Turny Evo is not following its preprogrammed path and that certain safety functions are disconnected.
30
Operating Turny Evo
A door icon is displayed on the right of the screen when the door is open.
⇓

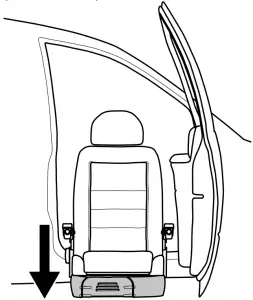

Swivel in and out
Turny Evo will follow its preprogrammed path.

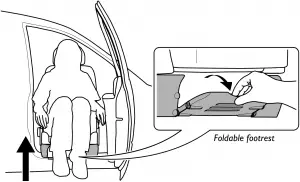

Make sure the vehicle is standing level and that the park brake is activated. Make sure that nothing is at risk of catching or being pinched. Note that there is a risk of pinching despite the built-in safety functions. Recline the backrest to minimize the risk of bumping your head in the door opening. If possible, use the footrest to facilitate the operation.

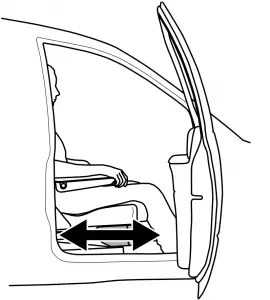

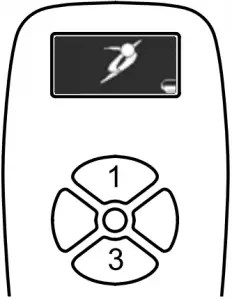

Adjusting comfort
This function will also work while driving with a closed door.
Emergency-mode operation
Using the hand held control

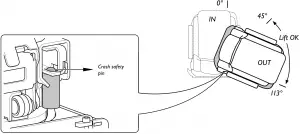

A crash safety pin will lock the seat in the correct position when the lift is performed correctly. If the lift is performed when the seat is swivelled out 0-45 degrees this causes damage to the unit and affects crash safety.
The illustration on the left shows a fully swivelled in Turny Evo where the crash safety pin has locked the seat in the correct position.

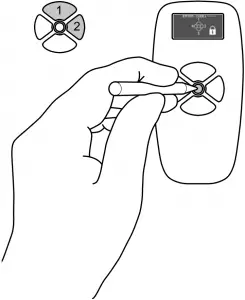

Hold down the yellow button until the picture “enter code” is displayed. Then enter the code1, 1, 1, 2
2 Swivel the seat in

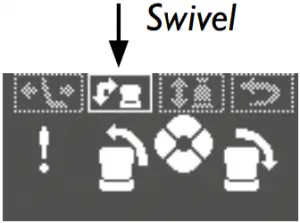

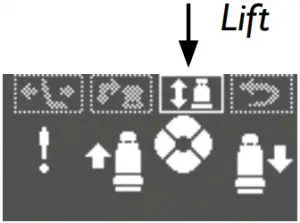

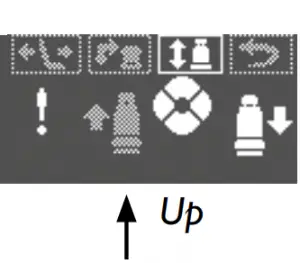

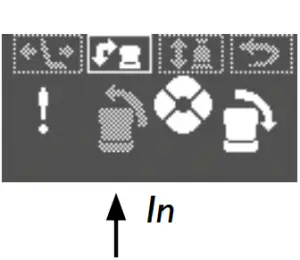

The seat must be lifted all the way up and swiveld all the way in. Switch between movements and directions until the “up” and “in” symbols have greyed out.
Note that the symbol for “in” is laterally inverse in a left-side Turny Evo.
During emergency operation all the buttons will flash RED to indicate that Turny Evo is not following its preprogrammed path and that certain safety functions are disconnected.

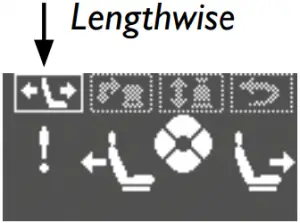

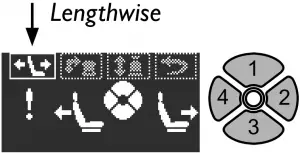

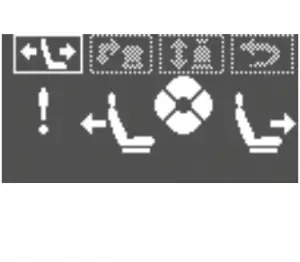

Press 1 or 3 and select “lengthwise”. Run the seat to the specified starting position by pressing 2 or 4 for “forwards” or “backwards”.
Press 4 for “backwards”. Run the seat backwards until the “exit” symbol lights up.
If the seat stops before ”exit” lights up you can override the system by forcing the seat backwards by holding in button 4 for ”backwards” for four seconds. If the “exit” does not light up step 2 may have to be repeated.

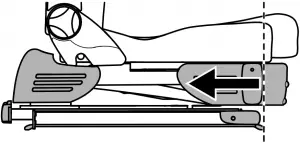

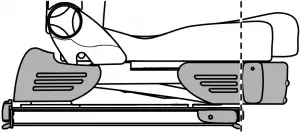

Starting position Run backwards

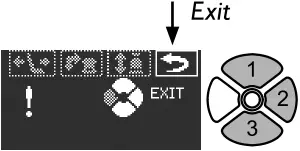

Press 1 or 3 and select “exit”.
Press 2 to confirm “exit”. Turny Evo is now back in its normal operating mode.

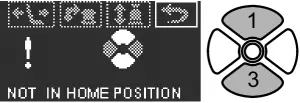

If this screen is displayed the criteria to exit the system has not been achieved.
Go back and do 9.1 again and then step 9.2.
Press 1 or 3 to select the main menu at the top.
Using the emergency operation kit

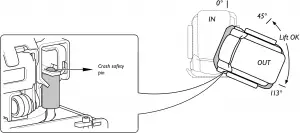

A crash safety pin will lock the seat in the correct position when the lift is performed correctly. If the lift is performed when the seat is swivelled out 0-45 degrees this causes damage to the unit and affects crash safety. Always contact your installation technician after a man-ual emergency operation to remedy the fault before using Turny Evo again.
The illustration on the left shows a fully swivelled in Turny Evo where the crash safety pin has locked the seat in the correct position.
Swivel the seat in
The seat must be lifted all the way up and swiveld all the way in. Begin by releasing the turning mechanism if these manoeuvres must be combined and cannot be done separately. Adjust lengthwise as necessary. For swivel and lengthwise movement, see overleaf.

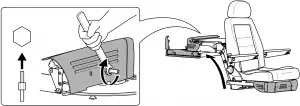

LIFT / Alt. 1 – Easy but slow
Insert the socket in the hole in the upper rear cover.
Crank the ratchet clockwise to raise the seat.
Note that the seat is not locked in this position but can move out again.
LIFT / Alt. 2 – Strenuous but fast
Remove the lock plate in front of the safety curtain. Raise the seat manually. Keep the lock plate for the visit to the workshop.

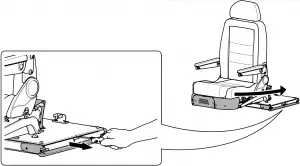

SWIVEL
Pull out the lock plate at the front of the base plate to release the turning mechanism. Swivel the seat all the way in and then slide the lock plate back to lock the seat in position.

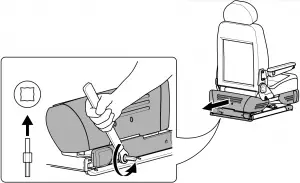

LENGTHWISE ADJUSTMENT
Insert the socket in the hole in the lower rear cover. Crank the ratchet counterclockwise to move the seat backwards.
Care instructions
As necessary……………………| Carefully vacuum clean Turny Evo. Use no liquids.
- The product documentation must always be taken along to vehicle inspections.
- Always contact your installation technician when dismantling.
Any maintenance, modifications or repairs to the Turny Evo may only be performed by a qualified installation technician.
Troubleshooting
Hand held control /- does not light up……
– The hand held control must be in “sleep mode”,. Open the door.
– Check that the wiring to the hand held control is connected and undamaged.
– Check that the fuse is intact and that the car battery is charged.
– Follow the instructions for “Emergency operation using the emergency kit”
shows warning/fault message….
– Identify the message on the following pages and perform the recommended action.
– Follow the instructions for “Emergency operation by hand held control”.
– Follow the instructions for “Emergency operation using the emergency kit”.
Unusual noises heard during operation….
– Do not use the Turny Evo. Contact your installation technician for an overhaul.
| Warnings/error messages | Recommended action | |
 | The backrest is reclined too far. Lifting movement out is stopped. Lift up is still possible. | Raise the backrest. Raise the seat again if it is difficult to get to the knob. |
 | Incomplete seat swiveld-in. Turny Evo is not in a crash-safe position. The symbol is laterally inverse on a left-side Turny Evo. | Swivel the seat all the way in. |
 | Low battery charge. | Charge the vehicle battery. |
 | 1. Hand held control spiral-haped cable break. 2. Connection problems between the hand held control and the circuit board. | 1. Replace the cable. 2. Contact your installation technician |
 | 1. Swivel motor blocked. 2. Swivel motor pulse generator fault. | 1. Check that there are no obstructions. 2. Follow the emergency operation instructions. Contact your installation technician if the fault persists. |
 | 1. Lift motor blocked. 2. Lift motor pulse generator fault. | |
 | 1. Lengthwise adjustment motor blocked. 2. Lengthwise adjustment motor pulse generator fault. | |
 | Swivel motor pinch protection activated. | When encountering an obstruction, Turny Evo will stop and back a little. Remove the obstruction and try again. |
 | Lift motor pinch protection activated. | |
 | Lengthwise adjustment motor pinch protection activated. | |
 | Cable break or faulty limit switch sender for the swivel motor. | Follow the emergency operation instructions. Contact your installation technician if the fault persists. |
| Cable break or faulty limit switch sender for the lift motor. | |
 | Cable break or faulty limit switch sender for the lengthwise adjustment motor. | |
 | Swivel motor overloaded. | Make sure there are no obstructions and try again with an empty seat. Contact your installation technician if the fault persists. |
 | Lift motor overloaded. | |
 | Lengthwise adjustment motor overloaded | |
 | Swivel motor switch activated in wrong position. | Follow the “Emergency operation with hand held control” instructions to reset Turny Evo’s start position. Contact your installation technician if the fault persists. |
 | Lift motor switch activated in wrong position. | |
 | Lengthwise adjustment motor switch activated in wrong position. | |
 | Turny Evo has lost its position. Tip! Ensure programming has been completed correctly, refer to the “Program path of movement” heading in Chapter 10.2. (Installation manual). | Follow the “Emergency operation with hand held control” instructions to reset Turny Evo’s start position. Contact your installation technician if the fault persists. |
Please contact your installation engineer if you require further assistance or need to ask questions about warranty. We recommend keeping the following information to hand at all times /
Contact details for the installation engineer /
Model /
Serial number /
Year of manufacture /
Date of purchase /
Notes /
Technical specification

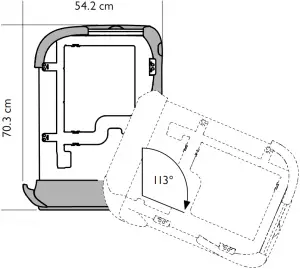

From above, swiveld out to the right
Length with upfolded foot rest ………………………….. 70.3 cm
Width …………………………………………………………………. 54.2 cm
Installation height, up to seat attachment …………… 16.3 cm
Swivel increments ……………………………………………….. 0-113°
Lengthwise movement ………………………………………… 41 cm
Lift height ……………………………………………………………. 39 cm

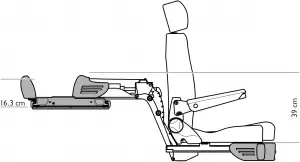

From behind, swiveld out to the right and lowered
Product weight ……………………………………… 84 kg
Weight capacity* …………………………………… 180 kg
Max power consumption ………………………. 14A
Power consumption, at rest ……………………. ≈0,7 mA
Fuse ……………………………………………………….. 15A
Power requirements ……………………………….. 12V
* Weight capacity refers to the total weight of the seat, its accessories and the user.
Introduction for users
BraunAbility Europe AB would like you, as a user, to feel secure and comfortable with your new product. For that reason, it is your installer’s duty to go through the following
with you /
Safety
Operation
Emergency-mode operation
If any questions about the product should come up later on, you are of course very welcome to contact your installation engineer again.
The above chapters have been gone through /
Date /
Name of dealer /
Signature, installation engineer Signature, user
Product certificate
Manufacturer /
BraunAbility Europe AB
Åkerivägen 7
443 61 Stenkullen
Sweden
Phone: +46 302 254 00
E-mail: [email protected]
www.braunability.eu
Declares that the product /
Turny Evo generation 2 (M129), model Left/Right
Conforms to following directives, standards and regulations /
2006/42/EEC, 2007/46 EEC, 2007/47/EEC
LVFS 2013:11
ECE R-10, ECE R-14, ECE R-16
ECE R-17 rev 5 (incl supplement 08)
ECE R- 21
ISO 3795
FMVSS 201
FMVSS 207
FMVSS 208
FMVSS 209
FMVSS 210
FMVSS 225
FMVSS 302
BraunAbility Europe AB, Stenkullen
2019-04-02
Jan M Jensen
Managing Director
Accredited by SWEDAC as testing laboratory in accordance with ISO/IEC 17025:2005
Quality system certified in accordance with ISO 9001:2015
Illustrations, descriptions and specifications in the user manual are based on current product information.
BraunAbility Europe AB reserves the right to make alterations without previous notice.
© 2020 BraunAbility Europe AB
