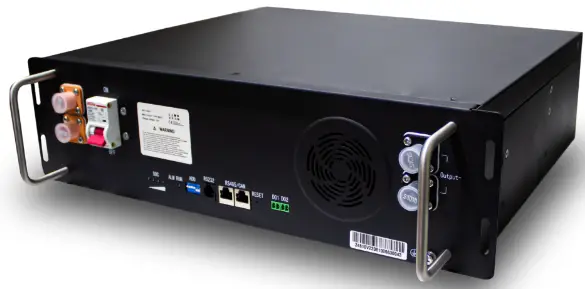

V-TAC 11377 Battery for Solar Inverter
SPECIFICATION
- Nominal Voltage :48.0V
- Capacity : 1 OOAh @0.2C,25°C
- Energy : 4.80kWh @0.2C,25°C
- Dimensions(W*D*H) : 445*450*132.5mm
- Weight : 43.0士0.5kg
- Charge Voltage : 54.0V
- Standard Charge Current : 20A @25°C
- Max Continuous Charge Current : 100A @25°C
- Standard Discharge Current : 20A @25°C
- Max Continuous Discharge Current : 100A @25°C
- Discharge Cut-off Voltage : 40.5V
- Operating Temperature : Charge: 0~+60°C Discharge: -20~+60°C
- Storage Duration : 1) 6 months @-20-45°(25%~75%SOC) 2) 3 months @-20-45°(25%~75%SOC)
- Protection Class : IP20
- Cycle life : 6000 cycles 80 % DOD
