ONYX STUDIO 8

QUICK START GUIDE

Contents hide

1 ONYX Studio 8 Sustainable Speaker

2 Documents / Resources

2.1 References

3 Related Posts

ONYX Studio 8 Sustainable Speaker

Before using this product, read the safety sheet carefully.

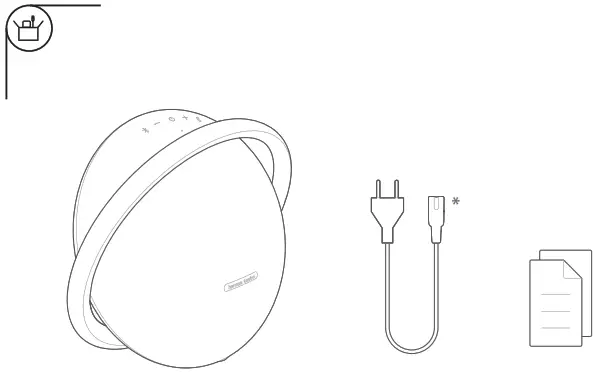

*Power cord quantity and plug type vary by regions.

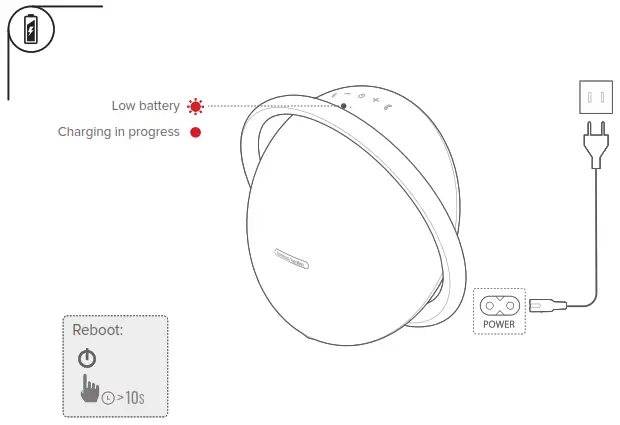

Low battery Charging in progress Reboot

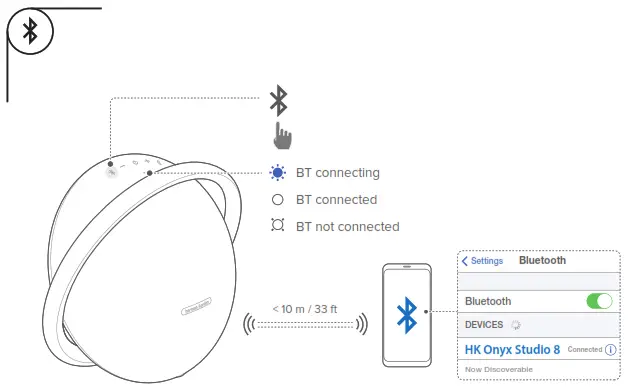

Bluetooth connecting Bluetooth connected Bluetooth not connected

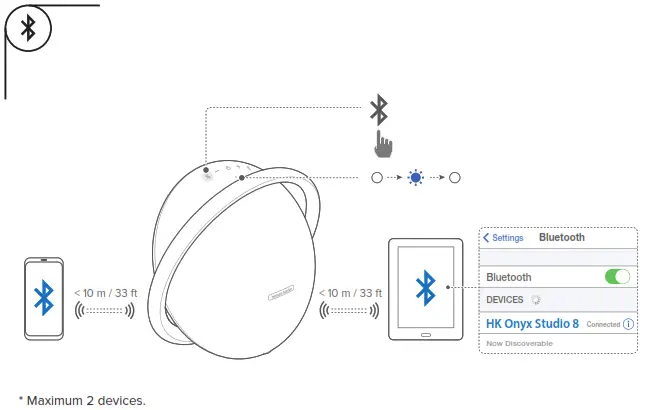

*Maximum 2 devices

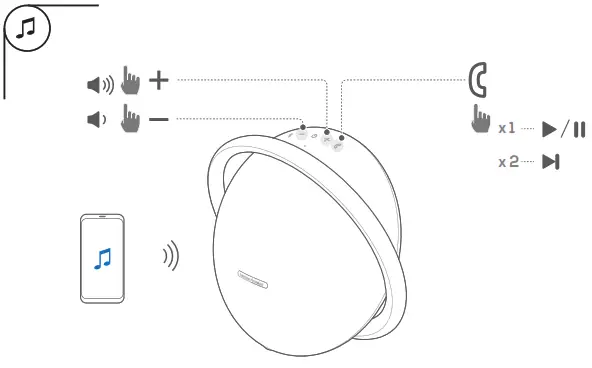

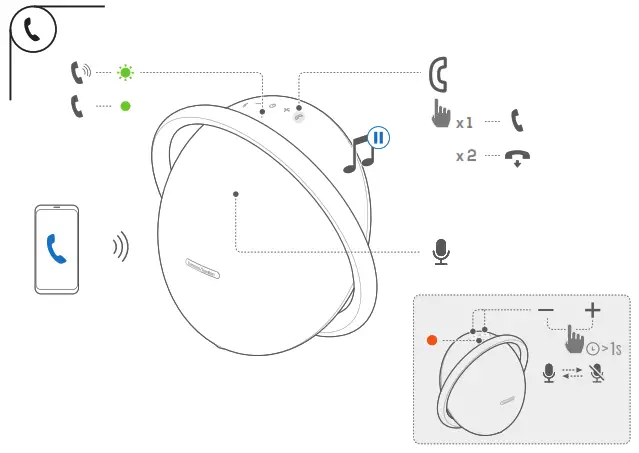

Press once to start or pause music playback; Press twice to skip to the next music track.Music playback pauses on the current connected device when you start music playback on a second connected device.When there is an incoming call, music playback pauses. Pick up the phone call and talk through microphone.

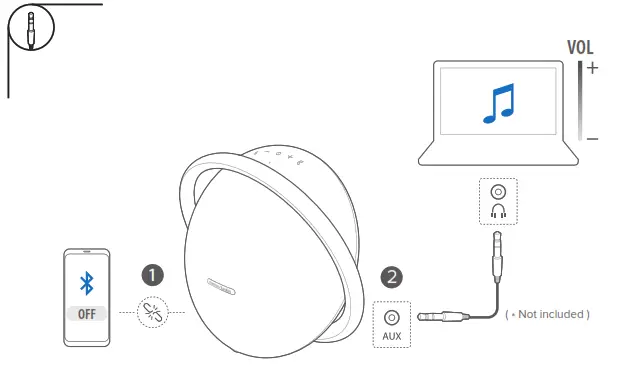

To play music through the audio cable, disconnect Bluetooth. (* not included)

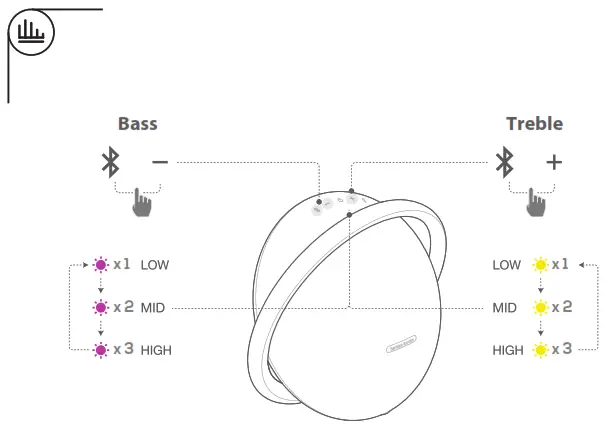

Tone controls (Bass, Treble)

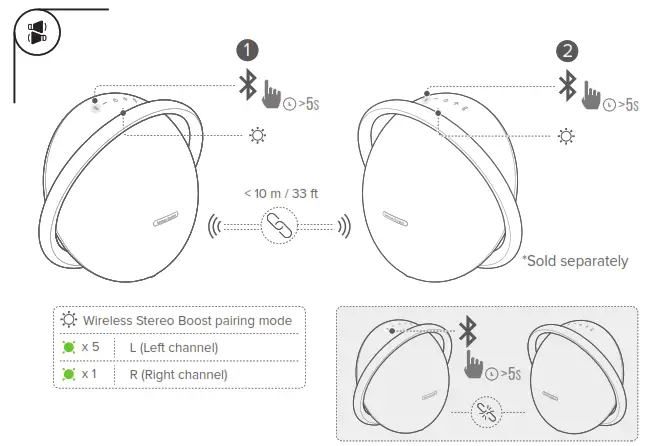

Wireless Stereo Boost pairing mode L (Left channel) / R (Right channel) *Sold separately

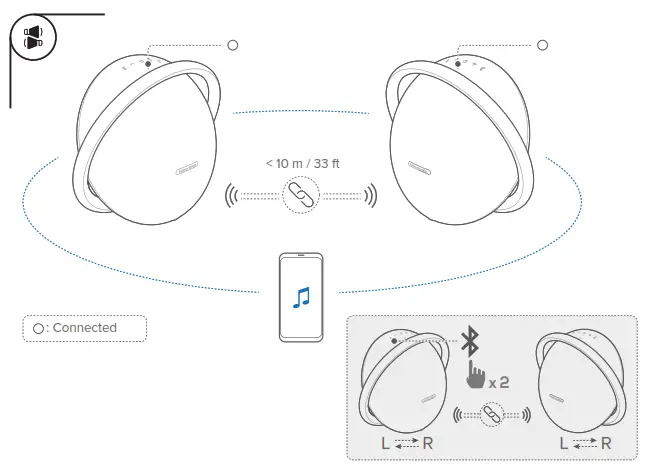

Music playback starts from the primary speaker.
0 : Connected

Transducers: Woofer 1 x 120mm, Tweeter 2 x 20mm
Rated output power: 50W RMS
Power supply: 100-240Vac, 50Hz/60Hz
Frequency response: 50Hz – 20kHz (-6dB)
Signal-to-noise ratio: > 80 dB
Battery type: Li-ion polymer 11.70 Wh (equivalent to 3.6 V/ 3250 mAh)
Battery charge time: 5 hours
Music play time: up to 8 hours (dependent on volume level and audio content)
Bluetooth® version: 5.2
Bluetooth® profile: A2DP 1.3, AVRCP 1.6
Bluetooth® transmitter frequency range: 2400 MHz – 2483.5 MHz
Bluetooth® transmitter power: ≤ 12 dBm (EIRP)
Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
Dimensions (W x H x D): 312 x 275.8 x 163.8 mm / 12.28″ x 10.86″ x 6.45″
Weight: 3.52 kg / 7.76 lbs

If the speaker will not be used for a long period of time, please recharge the battery at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, ncorporated is under license. Other trademarks and trade names are those of their respective owners.
