IQ Sensor Fall Alarm
Intuitive.
Dependable.
Easy to use.

Contents hide

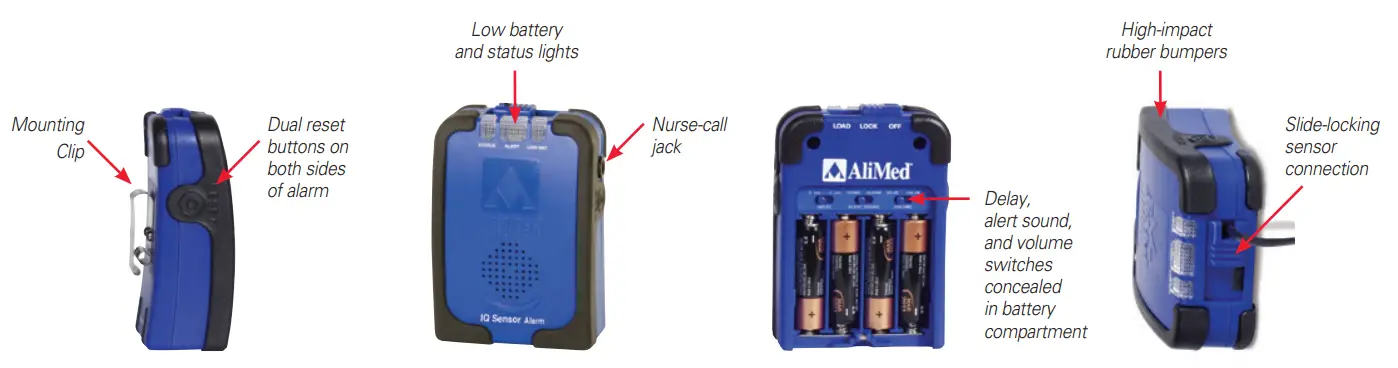

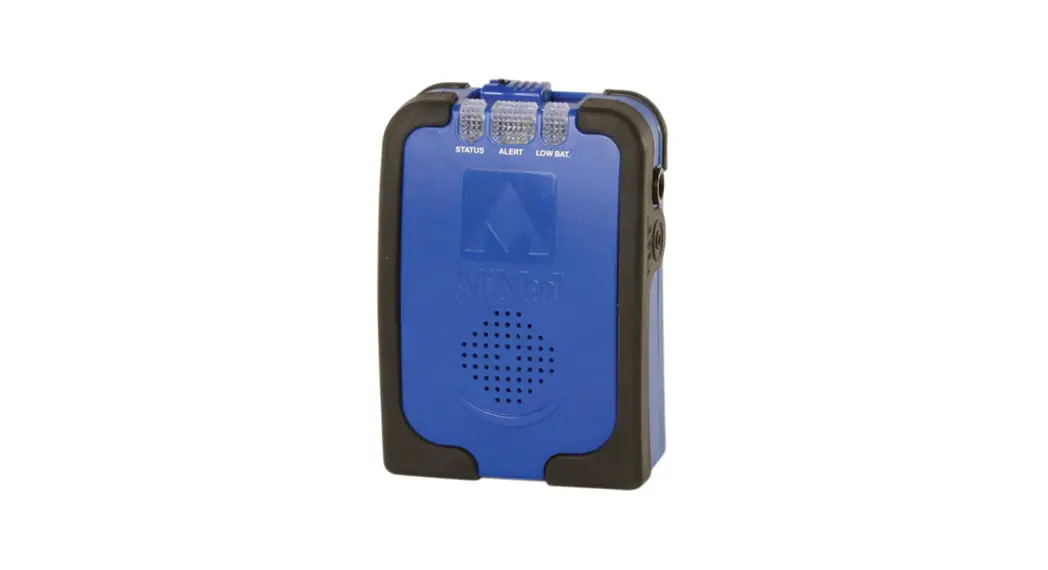

18565 Alarm Fall Sensor IQ

Small, lightweight, and easy-to-handle
Strong, rugged design ensures long-term use
Extended battery life

IQ Sensor Fall Alarm
A reliable, versatile, and full-featured alarm, the IQ Sensor Fall Alarm promptly alerts staff when patients attempt to leave their bed or chair, avoiding potentially serious injury
due to falls.
With a range of easy-to-set options, the sensor alarm can be quickly configured for a single patient’s needs or for an entire floor. Once activated, the alarm’s protected settings and “Always On” technology eliminate the need for staff reconfiguration, and its bright status indicators ensure the alarm is functioning properly.
Compatible with all AliMed sensors, the IQ Sensor Fall Alarm works in tandem with pressure and ultra-thin sensor pads, roll-control bed belts, seat belts, or cushions, to create a complete fall monitoring system.
To order, see the reverse side.

Sensor Alarm Specifications:

Functionality	Sensor	For use with a sensor device (See below)
Status Indicator	Yes	Flashing green light indicates alarm is functioning
Alert Indicator	Yes	Flashing orange light provides a visual alert
Slide-locking sensor connection	Yes	For sensor cable strain relief
Reset Button	Yes	Dual reset buttons
Nurse-Call Integration	Yes	Compatible with most nurse-call systems
Number of Tones	2	Chime and alarm
Silent Setting	Yes	For use with nurse-call
Number of Delays	2	0 sec., 2 sec.
Volume	High/Low	100dB/85dB
Size	Compact	3″W x 4¼”H x 1½” D
Power Source	4 AA Batteries	Included, average 6 months between battery changes*
Mounting Hardware	Yes	Clip
Warranty	Yes	1 year
