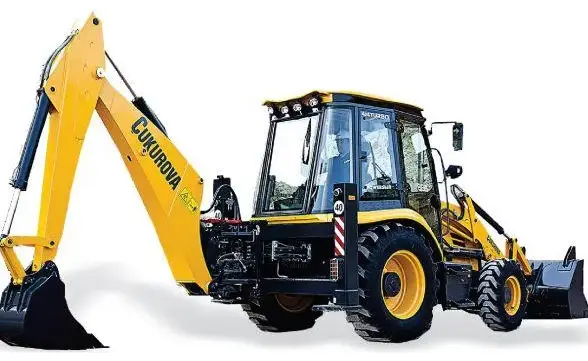

CUKUROVA 883 Backhoe Loaders
Features
Powerful Engine
Powering it with PERKINS 1104C- 44T Tier II or PERKINS 1104D-44T Tier 111 turbocharged diesel engine which offers world-class performance and complies with all relevant environmental regulations.
Optimum Weight Distribution
The new generation Cukurova Backhoe Loaders are designed to have Optimum Weight Distribution giving safe, stable steering on the highway and provides a solid digging platform.
Improved Performance
CUKUROVA Backhoe Loaders are the ideal combination of concentrated power, safety and extreme user-friendliness. Ergonomically located, control levers are within easy reach of the operator, provides operating comfort and increase productivity. Cukurova was one of the pioneers in using new generation control system for backhoe loaders. This system of hydraulic operated joystick controls, is used in 885 mode for both backhoe and loader attachments enable operators to spend less effort with much greater precision of movement during working. This system provides better controllability, maintains motion under any flow or load, takes the strain from the operator; increases oil life and reduces oil reservoir temperature.
Excavator Style Comfort (885)
For backhoe, CUKUROVA 885 offers an extra operating comfort by assembling the hydraulic joysticks on separately adjustable backhoe joystick columns placed at the right-left side of the cab. This innovation exceeds the operator demands in so far that they can arrange the columns to their working position by gaining extra space for their free body movement. In this way they feel like they are in an excavator, all the controls are within their easy reach and thus are comfortable while working.
Automatic return to dig system (885)
The 885 provides you with automatic return to dig system as standard to get max efficiency with reduced cycle times by leveling the loader bucket back to dig position with a pull of loader joystick

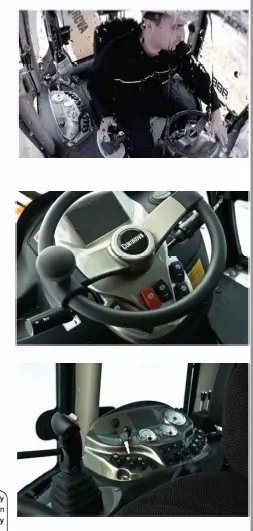

Roomy ROPS/FOPS Cab
Specially designed ROPS/FOPS cab provides perfect operating comfort, excellent visibility with tinted safety glass.
A well designed dash within reach Siting in the driver’s seat is a lot like sitting in a automobile. The tiltable front dash provides all switches and controls to be closer to the driver. There’s no stretching, so there’s less fatigue.
On right side dash, a large, easy-to-read, standard operator display features a maintenance indicator, hour meter, fuel level guage, engine oil temperature guage, engine rpm to name a few.
Steering Column
The steering column can be adjusted to an infinite amount of positions for maximum comfort, increased belly room and improved visibility of all indicators by simply pressing the quick-release foot pedal.
Dash Finishes
The dash comes nicely appointed in two finishes.
Easy Cab Entry
Sculpted, self-cleaning steps and a full-size grab bar provide an extra measure of safety getting in and out of the cab. Partial opening of cab doors.
Roomy ROPS/FOPS Cab
Specially designed ROPS/FOPS cab provides perfect operating comfort, excellent visibility with tinted safety glass.
A well designed dash within reach
Siting in the driver’s seat is a lot like sitting in a automobile. The tiltable front dash provides all switches and controls to be closer to the driver. There’s no stretching, so there’s less fatigue.
On right side dash, a large, easy-to-read, standard operator display features a maintenance indicator, hour meter, fuel level guage, engine oil temperature guage, engine rpm to name a few.
Steering Column
The steering column can be adjusted to an infinite amount of positions for maximum comfort, increased belly room and improved visibility of all indicators by simply pressing the quick-release foot pedal.
Dash Finishes
The dash comes nicely appointed in two finishes.
Easy Cab Entry
Sculpted, self-cleaning steps and a full-size grab bar provide an extra measure of safety getting in and out of the cab. Partial opening of cab doors.
Sealed pins and bushing
Sealed pins and bushings extend the life time of the linkages of the attachments by preventing the entry of dust or blockages and increases the time between service periods.

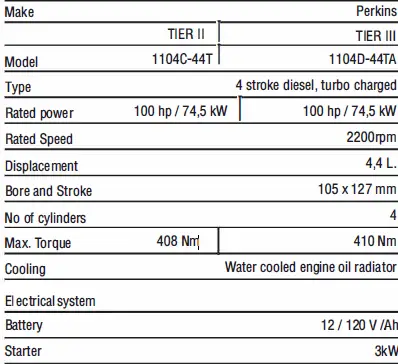

Engine
- Heavy duty desing, high torque capability,powerful PERKINS engine.
- Impressive low speed torque to deliver improved machine response.
- ECG filtration system provides high quality construction with a re-usable canister, a disposable inner element and a simpler service process.
- Low fuel consumption and low maintenance cost.
- Environmental
- Dry type air cleaner with primary and safety elements.

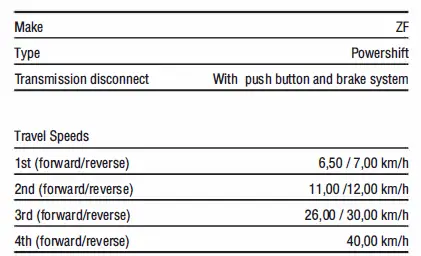

Drive Train
Transmission:
Axles:
ZF Front Axle
- Ease of operation with hydrostatic steering system even underhigh load conditions.
- Limited slip differential.
- 20° total oscillation on front axle
- 52 degrees steering angle for perfect maneuverability.
ZF Rear Axle
- High input torque with outboard planetary desing
- Electro-hydraulic operated differential % 100 locking acts on rear axle.
- Self adjusting high torque internal wet multi disc service brake.
Technical Specification
Hydraulic System
- Hydraulic speed control system.
- Bolt type cylinder desing with all sealed pins and bushings for easy maintenance and long life.
- Cushioned Swing and Boom provides maximum operator comfort for fast and smooth trenching.
- System type a-center
- Hydraulic pump Tandem gear
- Max. Flow 90 + 64 I/min
- Max. Press. 220 bar
- Hydraulic oil filter Full flow filter in return line with integrated fine filter area
- Hydraulic cooler Hydraulic and transmission oil cooler
Brakes:
- Hydraulically foot operated service brake two pedals acted on four wheels.
- Service type Hydraulic wet multi-disc
- Parking type Mechanical control on rear axle
Steering
- Steering Type 2 Wheel
- Power Steering Hydrostatic
- Turning Circile (without brakes) 883 885
- Outer Front Tire Clearance 9500 mm 12170 mm
- Outer Loader Bucket Clearance 12320 mm 14600 mm
Backhoe Attachment
- Max. Bucket Tearout Retract 59,1 kN
- Dipper Tearout Retracted
- Retracted 31,8 kN
- Extended 22 4 kN
Cab
- Specially designed ROPS/FOPS cab provides perfect operating comfort, excellent visibility, and reliability.
- Full-opening of rear side windows, partial and full-opening of the doors provide superrior fresh air circulation in the cab, tinted safety glass improves visibilitiy and sun visor protects operator against strong sunlight and ensures clear vision.
Capacities
- Engine Oil 8,4
- Cooling System 25
- Fuel Tank 140
- Hydraulic Tank 75
- Hydraulic System 130
- Front Axle 7,8
- Rear Axle 16
- Breake Oil 0,4
Loader Attachment 883 885
- Bucket Capacity 1.1 m3 1.1 m3
- Breakout Force Lift 60,5 kN 56,1 kN
- Breakout Force Shovel Max 81,5 kN 81,6 kN
- Shovel Widht 2280 mm 2280 kg
- Lift to full height 3500 kg 3440 kg
Tyres 883 885
- Front 4WD 12 5/80-18 14,5 /20
- Rear4WD 16,9-28 16,9-28
Weights
- 883-Operating Weight 7800 -8750 kg
- 885-Operating Weight 8000 -8950 kg

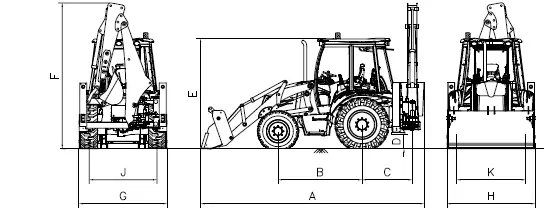

| all Machine Lenath | 6130 mm | 6100 mm | F – Machine Maximum Height | 3900 mm | 3900 mm | |
| 8- Wheelbase | 2180 mm | 2180 mm | G- Machine Maximum Width | 2280 mm | 2280 mm | |
| C- Backhoe Swing Centre Distance | 1310 mm | 1300 mm | H- Overall Width – with Bucket | 2280 mm | 2280 mm | |
| D- Minimum Machine Height | 380 mm | 400mm | J – Rear Wheel Track | 1770mm | 1770 mm | |
| E- Cab Height | 2900 mm | 2900 mm | K – Front Wheel Track | 1895 mm | 1820 mm |
| A – Max. Digging Depth: | 5800 mm | I – Distance Between Hinge Pin and Front Axle Center | 1220 mm | 1460 mm | ||
| B – Max. Reach From Rear Axle Center | 7000 mm | 8100 mm | J – Max. Rolback angle, fully raised | 59,2′ | 59,2′ | |
| C – Max. Reach From Swing Center | 5700 mm | 6800 mm | K – Dump Height | 2810 mm | 2950 mm | |
| D – Max. Digging Height | 5600 mm | 6450 mm | L – Loadover Height | 3280 mm | 3370 mm | |
| E – Max. Dumping Height | 3850 mm | 4700 mm | M – Height to Hinge Pin | 3520 mm | 3670 mm | |
| F – Loading Reach | 1800 mm | 2650 mm | N – Max. Reach at Fu Height | 1070 mm | 1125 mm | |
| G – Bucket Rotation Angle | 200,4′ | 200,4′ | 0 – Dumping Reach | 620 mm | 685 mm | |
| H – Max. Bucket Hinge pin Height | 4750 mm | 5550 mm | P – Digging Depth | 110 mm | 113 mm | |
| R – Dump Angle | 45′ | 45′ |
