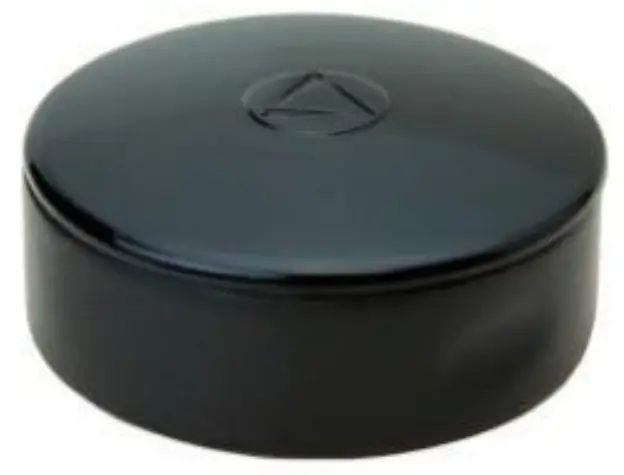

LandAirSea 54
Real Time GPS Asset Tracker
Compact, Waterproof, Internal Magnet

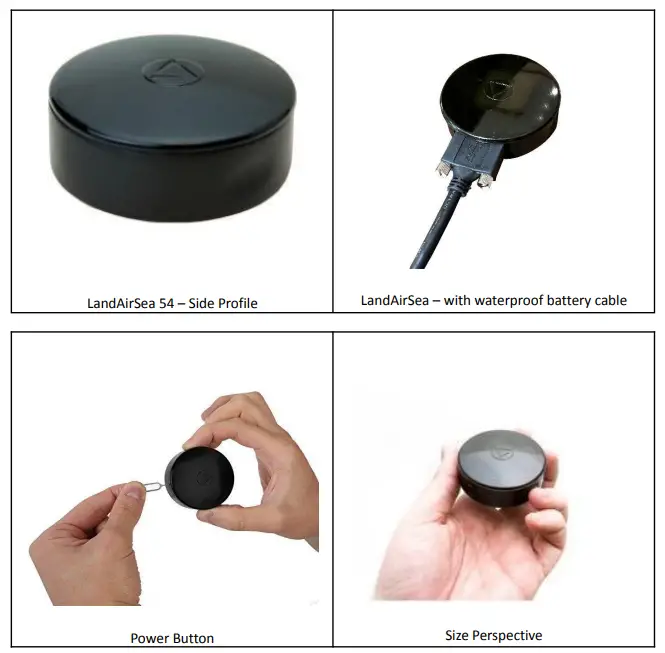

The LandAirSea 54 GPS device helps you keep up to date on your most important assets. Featuring a compact, waterproof design with a built-in super-strength magnet, the device is small enough to attach to vehicles or placed into pockets, purses, bags, and backpacks. Receive notification alerts, track the device’s location on a map, and view historical playback.
SPECIFICATIONS
WIRELESS COMMUNICATION
| Multi-Mode | 4G LTE CAT M1 / 4G LTE CAT NB1 / EGPRS (2G) |
| Global Bands | Cat M1/NB1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B39 EGPRS: 850/900/1800/1900 MHz |
| Region | Global |
| Carrier Certifications | Vodafone / Deutsche Telekom / Telefónica / Verizon / AT&T / T-Mobile / Sprint / U.S. Cellular / Rogers / Telus / KT / SKT / LGU+ / NTT DOCOMO / SoftBank / KDDI / Telstra |
| Regulatory Certifications | GCF / CE / FCC / PTCRB / IC / Anatel / IFETEL / CCC / KC / NCC / JATE / TELEC / RCM / NBTC / IMDA |
LOCATION SERVICES
| GNSS | GPS / GLONASS / BeiDou-Compass / Galileo / QZSS |
| Assisted GNSS | Online |
FEATURES
Waterproof Design / IP67 rated
Integrated built-in high strength magnet
Extremely powerful GNSS and Cellular Antennas designed for non-ideal conditions
Permanent Power Connection ( Hard Wired ) Waterproof Cable Option
Engine run-time monitoring and reporting ( Hours of Operation )
Temperature monitoring and reporting
Selectable real time location updates as fast as every 2 seconds
Alarm Mode Scheduler for high theft risk hours
ShareSpot ( Share the device location via text or email to anyone easily )
InstaFence ( Instant notification if the asset leaves the current location )
Dark Mode ( Remotely turn all LED’s off )
Historical Playback ( Bread crumbs )
Full API catalog for customized system integration
ENVIRONMENTAL DATA
| Operational temperature Storage temperature Humidity Drop Sealing RoHS compliant ( lead-free ) Green ( halogen-free ) | -40° C to 60° C -40° C to 60° C < 95% non-condensing 3 feet onto concrete Waterproof to IP67 standards |
BATTERY
| Internal Battery | Li-On rechargeable, 3.7V, 1500mAh |
| Charging / Input Voltage | 4.5 – 5.5V |
| Charging Port | USB Micro B |
| Battery Charge Time | Approximately 6 hours from 0-100% at 25°C |
BATTERY LIFE
Motion Tracking Mode (Tracks all movements at programmed frequency)
| Update Frequency | Estimated Driving Hours Battery Life |
| 3 Minutes | 40 hours |
| 1 Minute | 37 hours |
| 30 Second | 35 hours |
| 10 Second | 30 hours |
| 5 Second | 26 hours |
| 3 Second | 24 hours |
Timer Based Tracking / Energy Saver Mode (Location updated at a set frequency)
| Reporting Frequency | Estimated Battery Life |
| 24 Hours | 365 days |
| 12 Hours | 250 days |
| 8 Hour | 180 days |
| 6 Hour | 140 days |
| 4 Hour | 90 days |
| 2 Hour | 60 days |
| 1 Hour | 30 days |
| 30 Minute | 15 days |
| LED | 3 LED programmable (Battery, LTE Connectivity, GPS) |
| On/Off/Reset Button | Touch Pin Sensitive (Power – Shortpress / Reset Hold 5 second ) |
PHYSICAL CHARACTERISTICS
| Grade | Industrial |
| Dimensions | D: 2.275 in. H: 0.945 in. |
| Weight | 75g |
