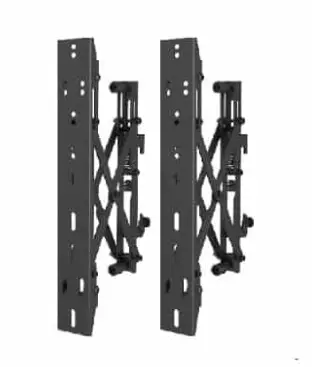

AURORA MOUNTS AMB-FM400 Push in Push out Mounting Brackets User Guide
Technical Summary

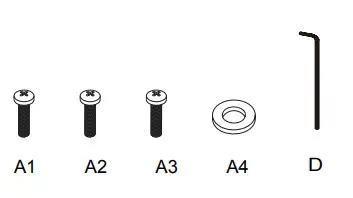

COMPONENT CHECKLIST
| Item | Name | QTY |

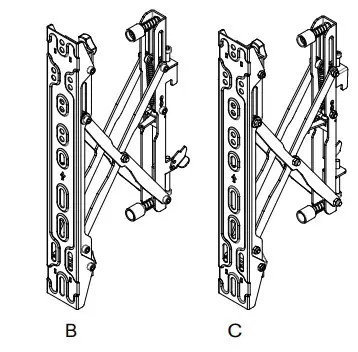

| B | Left Hook | 1 |
| C | Right Hook | 1 |
| A1 | M5X15 | 4 |
| A2 | M6X15 | 4 |
| A3 | M8X15 | 4 |
| A4 | 16x 6.2×1.5 | 4 |
| D | Allen key 5MM | 1 |

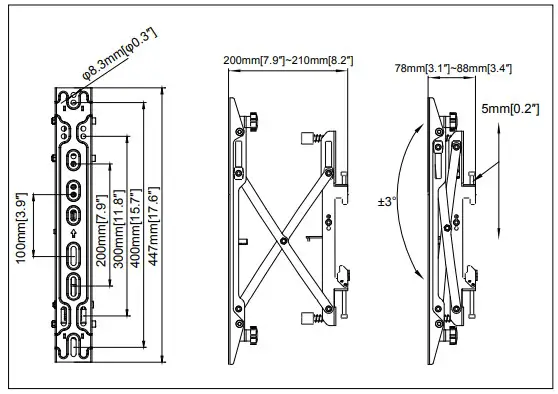

PRODUCT DIMENSIONS

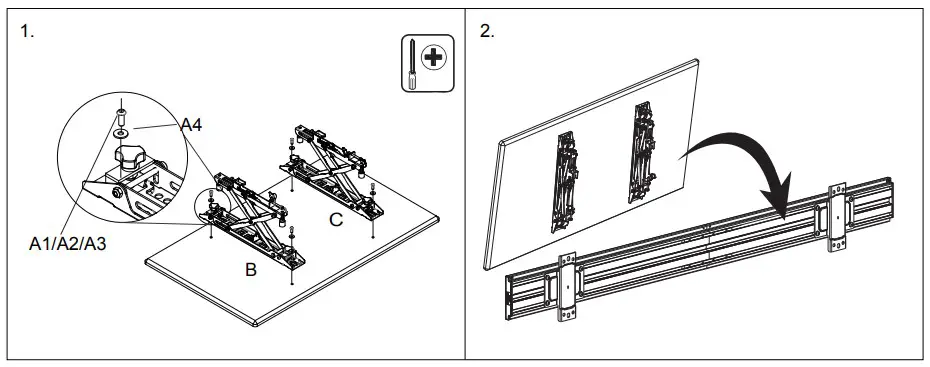

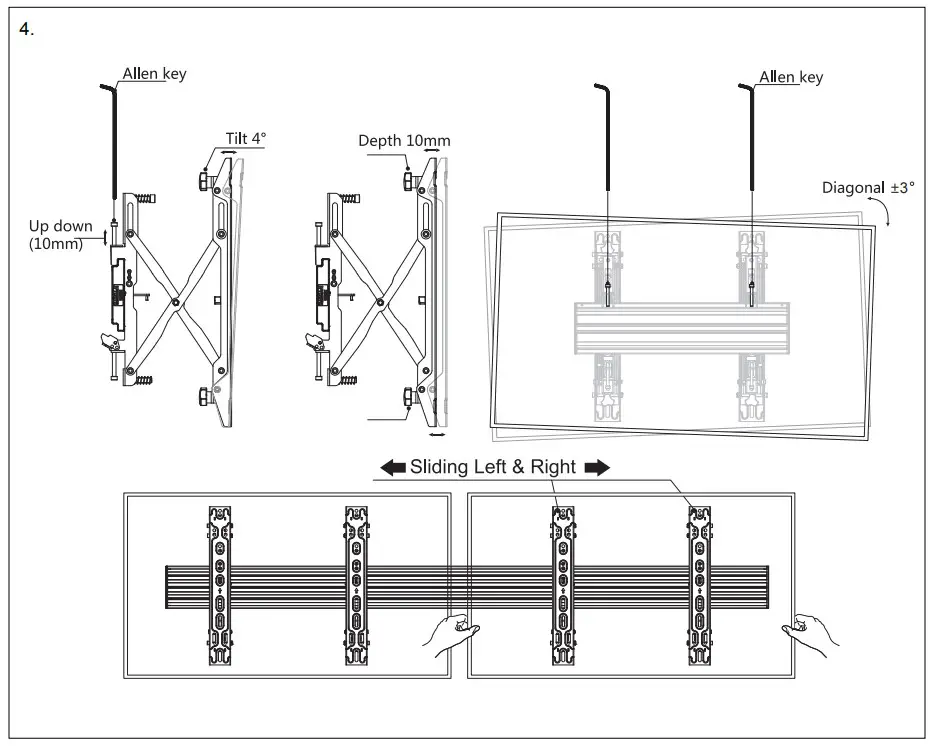

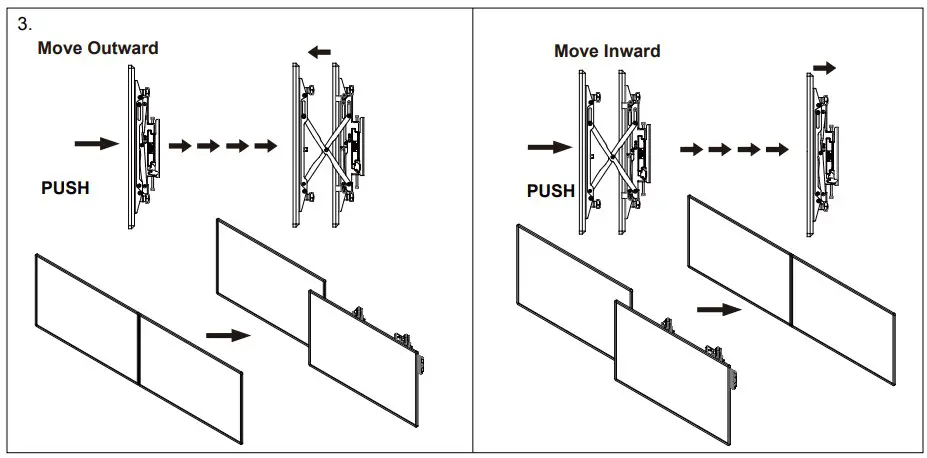

INSTALLATION INSTRUCTION
