LOOM SOLAR 480C850D DC Cables and Wires for Solar Panels

SPECIFICATION

• Construction:
  • Conductor: tinned copper conductor IEC 60228, Class 5
  • Insulation/sheath: electron beam crossed linked halogen free & flame retardant compound (XLPO)



• Electrical:
  Voltage test: 6500V as per EN 50395.
  Max permissible operating voltage:
  DC 1.5kv (conductor-conductor,
  non earthed system).
  Nominal voltage: AC – 0.6/1 Kv,
  DC – 900/1.5 Kv.
• Temperature:
  Ambient Temperature: -40°C to +90°C.
  Max conductor temperature: 40°C to 120°C.
• Max bending radius:
  5*OD(fixed installation)
  15* OD (occasional moved)



• Standards / Material Properties:
  • Fire performance: IEC 60332-1-2
  • Smoke emission: IEC 61034/ EN 50268-2
  • Halogen free: EN 50267-2-1/-2, IEC 60754-2
  • Toxicity: EN 50305, ITC – index <3
  • Ozone Resistant: EN50396
  • Weathering UV: HD 605/A1 or DIN 53367
  • Approvals: EN 50618; H1Z2Z2-K

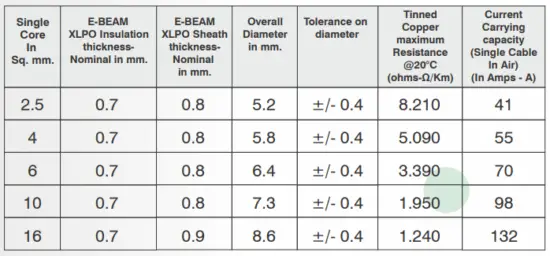

TECHNICAL DATA

Solar DC Cables from PV Module to Array Junction Box
(as per TUV Specification- EN 50618 : 2014)

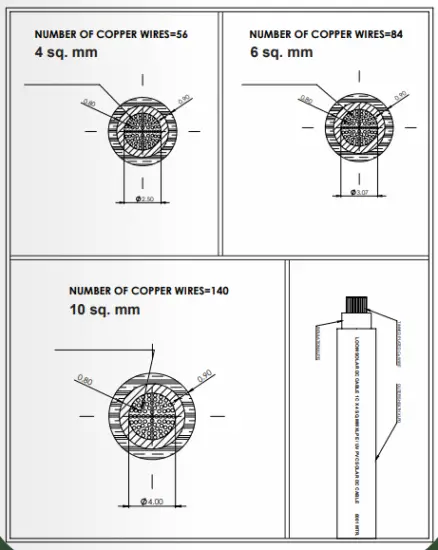

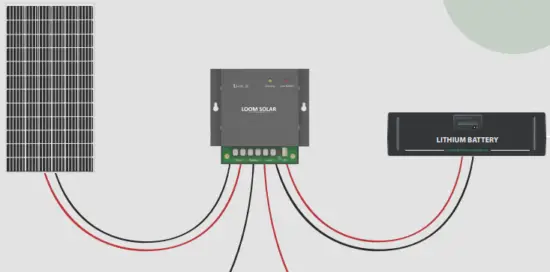

DIAGRAM
