IP Outdoor Camera
GPCL-029A2GN (2.9mm Lens)

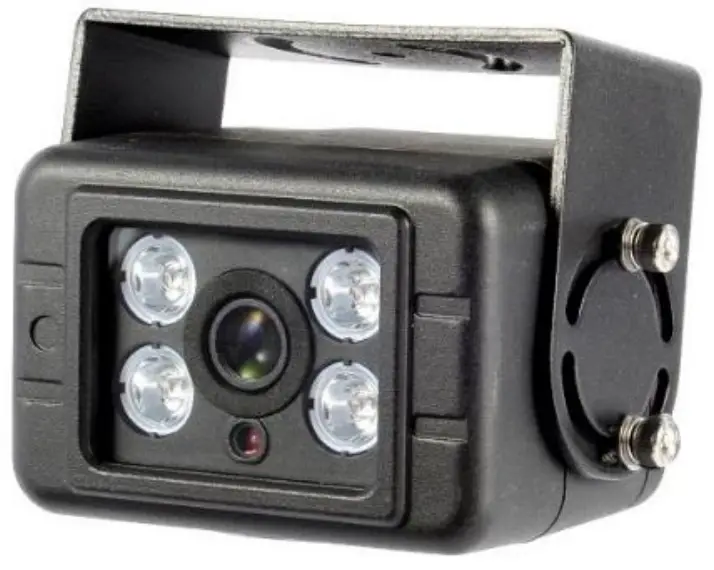

GPCL-029A2GN IP Outdoor Camera
RTSP, OnVif / IP68 / 2MP
IP Outdoor Camera is installed externally on special vehicles used in harsh environments to capture blind spots.
It is the best camera designed for IP68 waterproof and dustproof conditions so that it can be installed outside heavy equipment or garbage truck and can operate without any
problems even in very poor conditions such as snow, rain, and direct sunlight.
Key Features
- 1/2.7” 2MP CMOS Sensor
- 850nm 4 Power IR LED
- Up to 1920×1080
- Support 60fps@1280×0720
- Support RTSP
- OnVIF compliant
- Support PoE
- IP 68 rated
- Nitrogen filled-in
Application

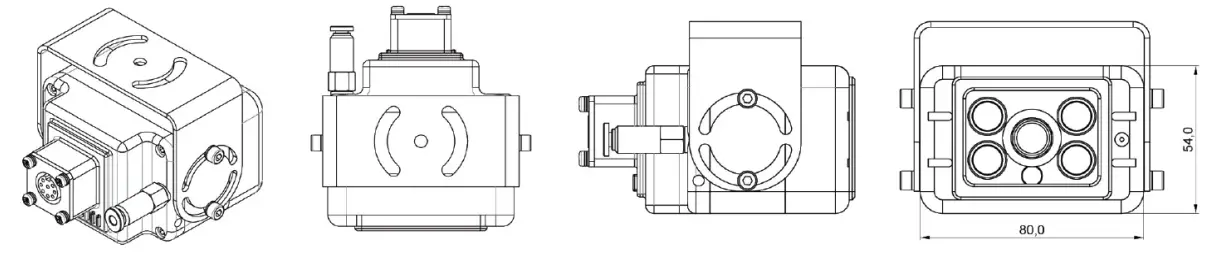

Dimension
Specification
| CAMERA | |
| Lens | 2.9mm |
| Image Sensor | 1/2.7″ 2.1Megapixel Progressive CMOS Sensor |
| Number of Effective Pixels | 1920(H) x 1080(V) approx. 2.0M pixels |
| Min. Illumination | Color Mode: 0.2 Lux |
| B/W Mode: 0.02 Lux | |
| Scanning Mode | Progressive Scan |
| Day and Night Mode | Automatic, Day, Night, 8 IR LED |
| Auto Exposure Mode | Automatic, Manual |
| Shutter Speed Control | 1/25 — 1/10,000 |
| Auto White Balance Mode | Automatic, Manual |
| Digital Zoom | Yes by on-screen |
| Back Light Compensation | OFF/HLC/BLC/WDR( <30FPS ) |
| DNR | OFF/LOW/MIDDLE/HIGH |
| Image Effect | Mirror, Flip |
| Privacy Mask | 1 Area Selection |
| Video Motion Detection | 1 Area Selection (8 *10=80 AREA) |
| Lens Shading | ON/OFF |
| ACE | OFF/LOW/MIDDLE/HIGH |
| Motion | ON/OFF |
| NETWORK | |
| Video Compression | H.264(Base line profile), MJPEG |
| Video Resolution (30fps@1920*1080P) | H.264 – Primary : 1920 x1080, 1280×720, 640×480, 320×240 |
| H.264 – Secondary 640×480, 320×240 | |
| Video Resolution (60fps@1280*720P) (VVDR not used) | H.264 – Primary : 1280*720P, 640×480, 320×240 |
| H.264 secondary 640×480, 320×240 | |
| Video Streaming | H.264 / H.264 |
| Login Authority | Administrator, Operator, Viewer |
| Security | ID/Password |
| Network Time Sync | Synchronize Computer/NTP Server, Manual |
| Remote Upgrade | Using Web Browser |
| Protocols | TCP/IP, UDP, IPv4, HTTP, UPnP, RTP, RTSP, RTCP, DHCP |
| Client Software | Built-In Web, ONVIF Compatible 3rd Party VMS |
| Max. User Connection | 4 Users |
| SDK Support | CGI Command, ONVIF Compliant |
| OPERATION ENVIRONMENTS | |
| Operating Humidity | 0-80% (non-condensing) |
| Operating Temperature | -30°C — 80°C |
| Power | 48V PoE (Default), DC12V (Optional) |
| Power Consumption | 1.6W |
