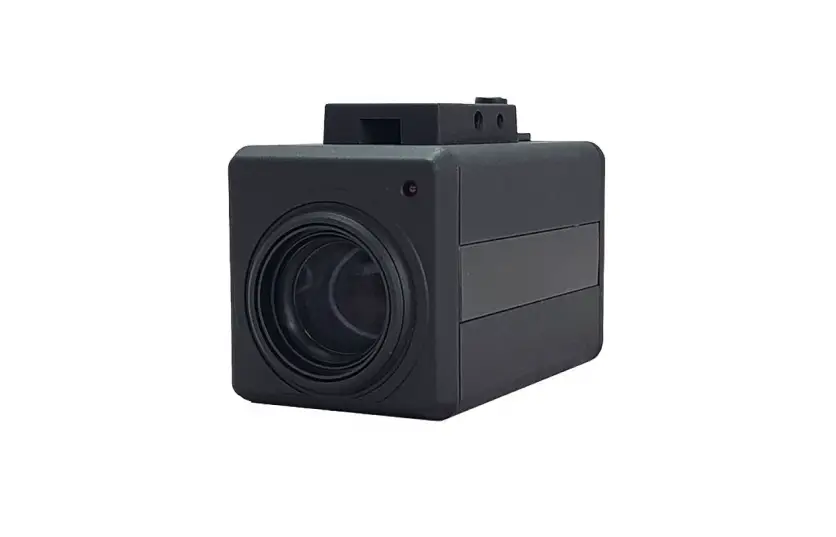

GPCZ-108A3GN IP Front Zoom Camera
GPI KOREA
IP Front Zoom
Camera
GPCZ-108A3GN
IP x10 Optical Zoom
Support H.265, RTSP, OnVIF / 2MP
IP Front Zoom Camera is primarily used in a forward-facing position and conjunction with the in-car video system to capture the proc3ess of police inspection and vehicle tracking. Crystal clear HD video and smart zoom providing maximum coverage without losing any details. Ease of use with large user friendly buttons.
Key Features
- H.265, H.254, Motion JPEG
- Up to 30 frames @1920x 1080
- X10 Optical Zoom (5.1 ~ 52mm) & x 32 Digital Zoom Function
- Day & Night function (ICR)
- Real-time True WD
- Digital Noise Reduction (2D+3D)
- High Light Compensation
- PoE
- Support OnVIF protocol
- Support RTSP
- Easy operation
- Smart Zoom function
- LED on the front for power & recording status
Application
Application
Image Sensor | 1/3″ Panasonic CMOS Sensor |
Total Pixels | 1,956(H) x 1,266(V), 2.48M Pixels |
Active pixels | 1,944(H) x 1,092(V), 2.12M Pixels |
Scanning system | Progressive Scan |
Sync. System | Internal |
Min. illumination | Color : 0.5 lux , BW : 0.1lux Color DSS : 0.125 lux , BW DSS : 0.025 lux |
S/N Ratio | more than 50dB (AGC off) |
Lens | |
Lens type | 10x Day & Night Zoom Lens |
Zoom Ratio | Optical x10, Digital x32 Zoom |
Focal Length | f = 5.1mm ~ 51mm |
Aperture Ratio | F1.6 (wide) ~ F1.8 (tele) |
Function | |
Focus | Focus / Distance /Zoom Speed/Lens Refresh / E.Zoom |
Exposure | Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N |
White Balance | Auto / One Push / Manual / Indoor / Outdoor |
Image | HLC / DNR / Mirror / Sharpness / ACE / Defog / Freeze / Gamma |
Intelligence | Privacy / Motion / DIS |
Network | |
Video compression | H.265, H.264, Motion JPEG |
Resolution | 6 Level : 1920×1080, 1280×720, 704×480, 640X352,320×176, 160×96 |
Frame rate | Primary up to 30fps @ 1920X1080 / 30fps@1280×1024 / 30fps @1280×720 |
Video Streaming | H265, Motion JPEG or H.264 Triple Streaming (Simultaneously) Independently Controllable frame rate and bandwidth |
Time Stamp | Supported ( Date/Time Only) in primary stream |
LAN interface | 10/100BaseT Ethernet auto sensing IEEE 802.11a/b/g/n |
Built-in Motion detections | Up to 4 zones Motion Sensitivity : 0 ~ 100 : 100 is hypersensitive |
Privacy zone | Up to 8 zones |
Operating Environment | Temperature : 32° ~ 122°F (0° ~ 50°C), Humidity : 20 ~ 80% RH(non-condensing) |
Supported protocols | HTTP, RTP/RTSP(Uni/Multicast), TCP/IP(v4/v6), UDP, FTP, Telnet, HTTPS, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP & etc |
General | |
Power Input | PoE |
Operating Temperature | Temperature : 32° ~ 122°F (0° ~ 50°C), Humidity : 20 ~ 80% RH(non-condensing) |
Weight | 400g |
Dimension
