LED s Light 810510 SHADA LED Wall and Ceiling Light

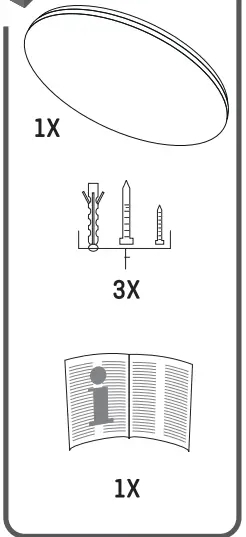

IN THE BOX

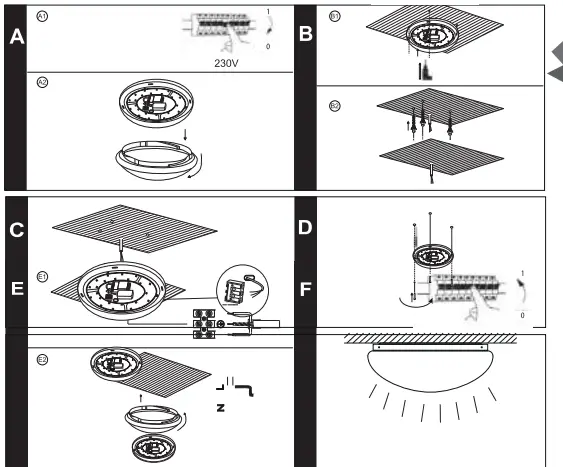

INSTALLATION

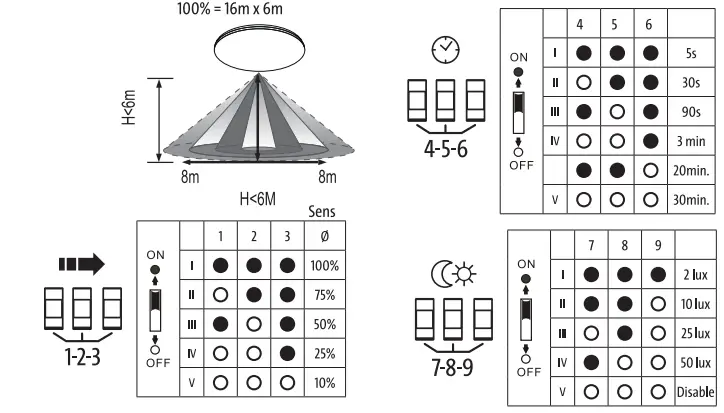

SENSOR
- 220-240Vac 50Hz
- 400W@ induct.
- 800w@ Ohm
- 5.8GHz+75MHz, ISM
- s0.5W
- <0.5mW
- 50.000h
- IP20
- 5s/30s/90s/3min/20min/30min
- 10%/25%/50%/75%/100%
- 0.5-3 m/s
- 2lux/10lux/ 25lux / 50lux/ Disabled
WARNING!
If there is metal material within the detection field of the sensor, the device may not work, or have only limited functionality!
SAFETY WARNING
- Ensure you have fully read and understood the instructions in this document betore you install or use the product following the installation/wire diagram (when applicable,
- Keep this document for future reference and only use the product as described in this document.
- Any other use of the product than described in this manual may damage the product or cause injury to the user (eg. due to a short circuit, fire or electric shock)
- Disconnect the product from the power source if problems occur.
- Do not drop the product and avoid bumping.
- Do not use the product ifa part is damaged or defective.
- Replace a damaged defective product immediately.
- When a non-standard consumer (powerjinstallation is required this should be performed by a qualified technician to reduce the risk of an electric shock.
- Make sure the product is sufficiently ventilated during use.
- Never cover an electrical (LED) device during usage since it can generate heat causing damage.
- Besides LED can be extremely bright and may cause serious eye damage so don’t stare at it directly.
- When a product is meant for indoor and/or Outdoor use only, this will be mentioned on the product/parts or in the manual.
- Keep the product out of reach of children or animals.
CLEANING AND MAINTENANCE
- Do not use cleaning solvents or abrasives.
- Do not clean the inside of the device.
- Do not attempt to repair the device when the device does not operate correctly, replace it.
- Clean the outside of the device using a soft, damp cloth (don t uSe microfiber cloth,
Support
lf you need further help or have comments or suggestions please visit www.shada.nl/nl/contact
