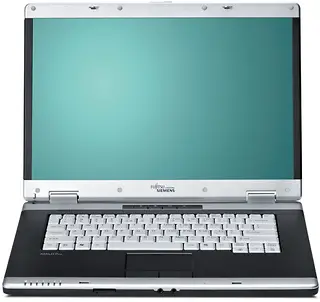

Fujitsu AMILO Pro V3505 WXGA LAPTOP
AMILO Pro V3505 Edition Your gateway to professional mobile working
The AMILO Pro V3505 is a versatile all-around notebook, equally suitable for occasional or professional users, and heavy-duty operation by mobile field sales people.
This professional notebook features a superb 15.4-inch WXGA display, an ergonomic keyboard and a built-in DVD writer drive. Modem and LAN are integrated for easier connection, courtesy of the latest Intel® CentrinoTM Duo Mobile Technology. It has great connections; four USB ports and an integrated 3in1 Card Reader. Connect to printers, scanners, cameras or any other accessory.
Elegance
Designed for the most demanding mobile users, AMILO Pro is the perfect synthesis of form, function, and style.
- Power-saving Intel® CentrinoTM Duo Mobile Technology for long independent working
- Increased productivity due to the latest Intel 945GM chipset which supports new technology standards: DDR2 memory, PCI Express, and S-ATA
Ergonomics
- Enjoy the viewing quality of a brilliant 15.4-inch TFT display
- Convenient working with a full-sized keyboard
Connectivity
- Ideal connectivity through WLAN.
Antennas are integrated for best signal reception. - Variety of interfaces for best connection to the peripherals
Reliability
- Germany‘s quality standard
- Award-winning best-in-class manufacturing
- Mechanical and function stability through extensive quality tests
- Short reaction and transportation time
Specification
| System | AMILO Pro V3505 Edition |
| Processor
Intel® Core™ Duo Processor Second level cache Front side bus (FSB) Intel® Core2™ Duo Processor Second level cache Front side bus (FSB) |
Up to T2350 (1.86 GHz) 2 MB 533 MHz Up to T7200 (2.0 GHz) Up to 4 MB 667 MHz |
| Chipset
Northbridge Southbridge |
Intel 945GM ICH 7-M |
| Memory
DDR2-533 SDRAM, 533 MHz DIMM slots |
Up to 2 GB 2 |
| BIOS
BIOS Flash EPROM |
Phoenix First BIOS |
| Interfaces
Type I/II PC Card slot 3in1 Card Reader (SD, MMC and memory stick) USB 2.0 S-Video out (TV-out) VGA Modem RJ-11 LAN RJ-45 Audio-in (line-in / microphone) Audio-out (line-out / headphone) DC-in Kensington Lock |
1 1 4 1 1 1 1 1 1 1 1 |
| Modem on board
56K V.92 modem MDC1.5 |
x |
| LAN on board
built-in 10/100/1000 Mbps Marvell 88E8055 |
x |
| Wireless Technologies (WLAN)
Import and usage according to country-specific regulations. Intel PRO/Wireless 3945 a/b/g |
x |
| Bluetooth
Bluetooth V2.0 |
optional |
| Audio
Stereo speakers Sound chip Internal microphone |
x RealTek ALC861 x |
| Keyboard and pointing device
Keyboard Touchpad Status LED |
85 keys, 19mm pitch, 2.5mm key stroke with two mouse buttons x |
| Graphics
Intel GMA 950 with 256-bit graphics core with dynamic video memory technology up to 128MB, 32- bit color depth Direct X9 Pixelshader 2.0 DualView (Windows XP) |
x
x x x |
| Display
15.4-inch TFT WXGA / 1280 x 800 pixel Max. resolution for external displays |
x 1600 x 1200 / true color / 85 Hz |
| Hard disk drives (internal) *
S.M.A.R.T. Up to 160 GB S-ATA 150 (5400 rpm) * 1 Gbyte equals one billion bytes, when referring to hard disk drive capacity; accessible capacity may vary, also depending on used software and tool. |
x x |
| Fixed drives
DVD+/- RW Dual layer (+R) Multiformat DVD writer with double layer support |
x |
| Manageability DeskUpdate
Driver Management Supported Standard PXE |
x x
x |
| Security
Physical security Kensington Lock support System Security Norton Internet Security Symantec User Security User and supervisor BIOS password Hard disk password |
x x x x |
| System | AMILO Pro V3505 Edition |
| Power supply
1st Li-Ion battery 6 cell 4400 mAH (48 Wh) Battery runtime: First battery * (Mobile Mark 2002) [up to] AC adapter 19V/65W Adapter Rated voltage (AC input) 100 – 240 V Rated frequency 50 – 60 Hz DC output 19 V, 3.42 A AC adapter 20V/65W Adapter Rated voltage (AC input) 100 – 240 V Rated frequency 50 – 60 Hz DC output 20 V, 3.25 A Dynamic charge supported (rapid charge) * Battery life may vary depending on product model, configuration, applications, power management settings and features utilized. Battery recharge time depends on usage. |
x 10.8V or 11.1V
4 h x
x x |
| Operating temperatures
Relative humidity (non-condensing) Ambient temperature |
20% – 85% 5° – 35° C |
| Dimensions / Weight Dimensions (H x W x D) Weight*
* Weight may vary depending on actual configuration |
34~45 x 360 x 260 mm 2.75 kg |
| Certificates
CE according to EU Directives 89/336/EEC (EMC) 73/23/EEC (Product safety) CE according to 99/5/EEC (R&TTE) CE! (Wireless) CE (Emission/Immunity) R&TTE UL/cUL CB Generic Report CB (Safety) RoHS WHQL TBR21 Energy Star |
x x x (with integrated WLAN) x x x x x x x x x |
| Operating System
Fujitsu Siemens Computers recommends Microsoft® Windows® XP Professional Microsoft Windows XP Professional MicrosoftWindows Vista™ capable (1) (min. 512 MB RAM necessary) Microsoft Windows Vista™ Premium Ready (min. 1GB RAM / DVD reader necessary) |
x x x |
| Software (compatibility / preinstalled) Adobe Acrobat Reader
Driver and Utility DVD Easy Guide on-line user documentation Nero Norton Internet Security (incl. Firewall) on Driver and Utility CD Toshiba Stack 4.x Odyssey Client WinDVD for MPEG II decode |
x x x x (with combo or DVD RW drive) x x (with Bluetooth) x x (as option) |
| Accessories (order number) AC-adapter
WinDVD 7 Value case Port Replicator Battery (6 cells) Modem adapter set 1: D, UK Modem adapter set 2: SW, NO, FI, DK Modem adapter set 3: CH, A, B, NL, F, I, E, POR |
S26391-F321-L100 S26361-F2598-L20 S26391-F119-L50 S26391-F6007-L100 S26391-F400-L400 S26361-F3145-L10 S26361-F3145-L20 S26361-F3145-L30 |
Not all Windows Vista™ features are available for use on all Windows Vista Capable PCs. All Windows Vista Capable PCs will run the core experiences of Windows Vista, such as innovations in organizing and finding information, security, and reliability. Some features available in premium editions of Windows Vista — like the new Windows® Aero™ user interface — require advanced or additional hardware. Check www.windowsvista.com/getready for details.
This datasheet describes the highest configurations. The product is offered in fixed configurations which vary from country to country and edition to edition.
All rights, including rights created by patent grant or registration of a utility model or design as well as rights of technical modifications are reserved. Delivery subject to availability. Designations may be trademarks, the use of which by third parties for their own purposes may violate the rights of the trademark owners.
Copyright © Fujitsu Siemens Computers, 01/2007
Published by
Fujitsu Siemens Computers http://www.fujitsu-siemens.com
