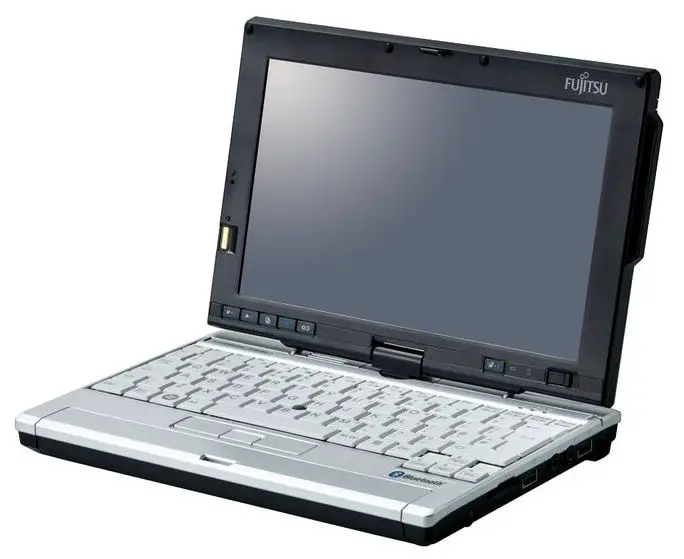

Fujitsu LIFEBOOK P1620 Intel Core 2 Duo U7600 Laptop
Introduction
Getting bigger, staying small – the LIFEBOOK P1620 is more than only a notebook. It is a fully featured powerful notebook and an ultra-light convertible tablet PC in one unit. Rotate the brilliant 8.9 inch (1280 x 768 dots) display 360° to share your ideas or flip it over to convert your notebook into a slate tablet PC. With this smart worker, you will enjoy outstanding connectivity with optional embedded UMTS, WLAN, Bluetooth, and modem. So you can get in touch with your business wherever and whenever you want. High performance and long battery life are not a conflict. The latest Intel® Centrino® processor technology guarantees you both. Weighing only 1kg – The LIFEBOOK P1620 is your perfect companion whether you are traveling by car, train, or airplane.
Mobility
- Slim, stylish, and innovative design for every profile allows you to work everywhere
- Ultra-light for perfect mobility – with a weight of 1kg
- Ideal connectivity through integrated WLAN, Bluetooth modem, and optional embedded UMTS
- PC Card & SD Card Slot for quick data transfer, backup, and additional software
- Small and lightweight Port Replicator optional for quick access to all your desk connections and peripherals
Ergonomics
- Just rotate the display 180 degrees in both directions and your notebook turns into a Tablet pc to enjoy the full advantages of pen functionality
- Comfortable usage with the pen functionality in all modes with Microsoft Windows XP Tablet PC Edition 2005, Windows Vista® Business
- Enjoy the viewing quality of the brilliant 8.9-inch passive digitizer transmissive TFT WXGA display
- Excellent resolution and video quality with integrated Intel® Graphics Media Accelerator 950 (included in chipset)
Security
- Easy and secure access and data protection for your business intelligence
- A trusted platform module (TPM) provides secure applications and makes transactions trustworthy
- Built-in fingerprint sensor and SmartCase Logon+ for optimized access control
- Symantec Client Security software for complete virus protection
Reliability
- Power-saving Intel Core™2 Duo Ultra Low Voltage Processor for long independent working
- Germany‘s quality standards for the highest reliability
- Award-winning best-in-class manufacturing
- Highest quality design with innovative hinge technology
- Mechanical and functional stability through extensive quality tests
- Your choice of supply concept for in-time and tailored delivery: built4you, made4you
Specifications
| System | LIFEBOOK P1620 |
| Processor | |
| Intel® Core™2 Duo | ULV U7600 (1.2GHz) |
| Second level cache | 2048 kB |
| Front side bus (FSB) | 533 MHz |
| Chipset Northbridge Southbridge | Intel® 945GMS ICH-7M |
| Memory DDR2-533 SDRAM DIMM slots | up to 2GB 1 x Micro DIMM (single channel) |
| BIOS BIOS Flash EPROM | Phoenix First BIOS Notebook |
| Interfaces | |
| Type I/II PC Card slot | 1 |
| Memory card slot (SD) | 1 |
| USB 2.0 | 2 |
| VGA | 1 |
| Modem RJ-11 | 1 |
| LAN RJ-45 | 1 |
| Audio-in (line-in / microphone) | 1 |
| Audio-out (line-out / headphone) | 1 |
| DC-in | 1 |
| Kensington Lock | 1 |
| Docking connector for Port Replicator | 1 |
| Port Replicator interfaces (optional): | |
| USB 2.0 | 2 |
| VGA | 1 |
| LAN RJ-45 (pass-through) | 1 |
| DC-in | 1 |
| Modem on board 56K V.92 modem MDC1.5 | 1 |
| LAN on board built-in 10/100/1000 Mbps Marvell 88E8055 | X |
| Wireless Technologies (WLAN) Import and usage according to country-specific regulations. Dual band diversity antenna Intel® PRO/Wireless Intel® 3945ABG WiFi certified Integrated UMTS (HSDPA 7.2 Mb/s, HSUPA 1.8 Mb/s), also supported are GPRS and EDGE | X X X X |
| Bluetooth Bluetooth 2.0 | integrated, with separate antenna |
| Audio Sound chip Internal microphone | Realtek ALC 262 1 |
| Keyboard and pointing device | 83 keys, 16mm pitch, 2.0mm key stroke X X 2 X X |
| Keyboard
Touchstick Fingerprint sensor Launch keys (programmable) Eco button Status LED | |
| Graphics Intel® 945GMS with integrated 32-bit 3D/2D graphics core with dynamic video memory technology, 256-bit internal pass, 3-D accelerator, max. 224MB VRAM (UMA) DualView Max. resolution for external displays: 1280 x 1024 UXGA / 16M colors / 85 Hz Direct X9 Pixelshader 2.0 DualView (Windows XP) |
X
X X X |
| Display 8.9-inch TFT WXGA / 1280 x 768 pixel | X |
| Hard disk drives (internal) * 80 GB IDE UDMA100 100 GB IDE UDMA100 120 GB PATA 64 GB SSD S.M.A.R.T. * 1 Gbyte equals one billion bytes, when referring to hard disk drive capacity; accessible capacity may vary, also depending on used software and tool. ShockSensor for HDD protection | X X X X X
X |
| System | LIFEBOOK P1620 |
| Manageability DeskView 10.6 On/Offline remote client management Detailed system inventory management and reports BIOS Management Power Management System notifications Security Remote Control Helpdesk Integration WoL (wake on LAN) DeskUpdate Driver Management DeskView Migrate Software Deployment and Migration Suite DeskView Control Advanced Hard-and Software Inventory Suite | X X X X X X X X X X X optional optional |
| Supported Standard | |
| WMI / CIM / WBEM | X |
| PXE | x |
| BootP | optional |
| Security Physical security Kensington Lock support System Security Trusted Platform module 1.2 Disable/Hide TPM option User Security User and supervisor BIOS password Hard disk password Integrated Fingerprint Sensor | X
X X
X X X |
| Power supply 1st Li-Ion battery 3 cell 2600mAh (28.1Wh) 1st Li-Ion battery 6 cell 5200mAh (56.2Wh) Battery runtime: | X X |
| First battery * with MS Windows XP (Mobile Mark 2005) [up to]
First battery * with MS Windows Vista (Mobile Mark 2007) [up to] | 4.5h – 3 cell battery 9.0h – 6 cell battery 3.5 h – 3 cell battery 7 h – 6 cell battery |
| AC adapter 16V/60W Adapter Rated voltage (AC input) 100 – 240 V Rated frequency 50 – 60 Hz DC output 16 V, 3,75 A Dynamic charge supported (rapid charge) * Battery life may vary depending on product model, configuration, applications, power management settings and features utilized. Battery recharge time depends on usage. | X X |
| Operating temperatures Relative humidity (non-condensing) Ambient temperature | 20% – 85% (running) 5° – 35° C |
| Dimensions / Weight Dimensions (H x W x D) Weight* | 34.5 – 37 x 232 x 167 ~1 kg (3 cell battery) ~1.2 kg (6 cell battery) |
| * Weight may vary depending on actual configuration | |
| Certificates CE Marking CE according to EU Directives 89/336/EEC (EMC) 73/23/EEC (Product safety) CE! (Wireless) CE (Emission/Immunity) R&TTE UL/cUL CB Generic Report CB (Safety) RoHS WHQL TBR21 Energy Star WiFi certified Medical Certification (EN 60601-1-2:2001) | X X X X X X
X X X X X X X |
| System | LIFEBOOK P1620 |
| Operating System Fujitsu Siemens Computers recommends Microsoft® Windows® XP Operating System Fujitsu Siemens Computers recommends Windows Vista® Microsoft Windows XP Professional Tablet PC Edition 2005, Windows Vista® Business |
X X |
| Software (compatibility / preinstalled) | |
| Adobe Acrobat Reader | X |
| Driver and Utility CD | X |
| Eco Power Saving Utility | X |
| Easy Guide on-line user documentation | X |
| Nero CD/DVD Writer SW | X (with external USB drive) |
| Mobile Manageability | X |
| SmartCase Logon+ | X |
| Toshiba Bluetooth Suite (Ver. 4.x) | X |
| Odyssey WLAN Client | X |
| Dialkeys (onscreen numeric keypad, touch enabled) | X |
| FSC Connection Manager (PC to Mobile Phone via Bluetooth) | X (Windows XP only) |
| WinDVD for MPEG II decode | optional (with external USB drive) |
| Accessories Screen protectors Port Replicator Additional AC-adapter Additional main battery ( 3cell and 6 cell ) Super Multi DVD Drive (external via USB) Battery charger 12/24 V adapter for cars and planes | X X X X optional X X |
| http://www.fujitsu-siemens.com/accessories/ | |
| Warranty Standard Warranty Service Level: Collect & Return Service (depending on country) | 2 years |
| Maintenance and Support Services – the perfect extension Recommended Service: 3 years Collect & Retiurn Service, where available: Executive On-site Service www.fujitsu-siemens.com/Supportservice | |
| Spare part availability | 5 years |
Trademarks
All rights reserved, including intellectual property rights. Technical data is subject to modifications and delivery is subject to availability. Any liability that the data and illustrations are complete, actual or correct is excluded. Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner. For further information see http://www.fujitsu-siemens.com/terms_of_use.html
Published by
Fujitsu Siemens Computers http://www.fujitsu-siemens.com/
FAQ’s
What is the Fujitsu LIFEBOOK P1620?
The Fujitsu LIFEBOOK P1620 is a compact and portable laptop featuring an Intel Core 2 Duo U7600 processor.
What processor does the laptop have?
The laptop is equipped with an Intel Core 2 Duo U7600 processor, offering a balance of performance and power efficiency.
What is the display size and type of the LIFEBOOK P1620?
The laptop features a compact display with a size of around 8.9 inches and uses traditional LCD technology.
What is the screen resolution?
The LIFEBOOK P1620 typically offers a resolution of 1280 x 768 pixels, providing clear and sharp visuals on its small display.
Is this laptop suitable for multitasking and productivity?
While the laptop can handle basic multitasking and productivity tasks, its compact size and processor may limit more demanding workloads.
Does the Fujitsu LIFEBOOK P1620 have a touch screen?
Yes, the laptop typically comes with a touch-sensitive display, allowing for intuitive navigation and input using a stylus or finger.
What operating system does the laptop use?
The laptop might come with different operating systems, but it usually runs on a Windows version compatible with the hardware.
Can the laptop handle multimedia and entertainment?
The LIFEBOOK P1620 can handle basic multimedia tasks, such as video playback and web browsing, but it may not be ideal for graphics-intensive applications or gaming.
What is the storage capacity of the laptop?
The laptop typically offers a range of storage options, including solid-state drives (SSD) or hard disk drives (HDD) with varying capacities.
Does the Fujitsu LIFEBOOK P1620 have built-in connectivity options?
Yes, the laptop usually includes various connectivity options such as Wi-Fi, Bluetooth, USB ports, and audio jacks.
Is the laptop suitable for travel and on-the-go use?
Yes, the compact size and portability of the LIFEBOOK P1620 make it ideal for travel and on-the-go use.
Can the laptop handle basic office applications and internet browsing?
Yes, the LIFEBOOK P1620 can handle common office applications, web browsing, and other light computing tasks efficiently.
