929003115701 Hue Perifo Cylinder
Sportight Instructions
929003115701 Hue Perino Cylinder Portlight

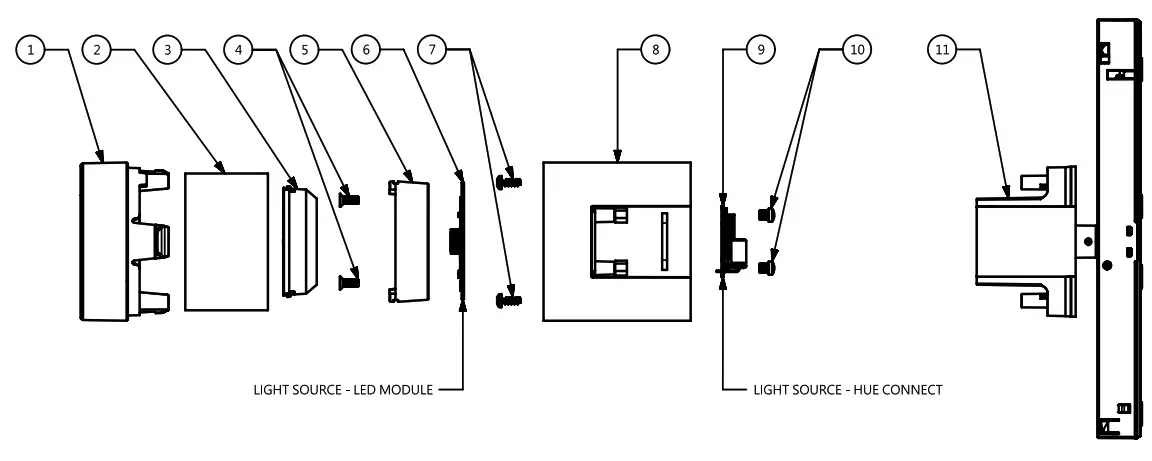

| # | COMPONENT | QTY |
| 1 | COVER | 1 |
| 2 | REFLECTOR | 1 |
| 3 | LENS | 1 |
| 4 | SCREW | 2 |
| 5 | BRACKET | 1 |
| 6 | LIGHT SOURCE – LED MODULE | 1 |
| 7 | SCREW | 2 |
| 8 | HEATSINK | 1 |
| 9 | SCREW | 1 |
| 10 | LIGHT SOURCE – HUE CONNECT | 2 |
| 11 | SCREW | 1 |
| 12 | BRACKET | 1 |
Warnings
Always make sure the luminaire is disconnected from mains.
Always make sure the DC cable is detached from the power supply.
Staring at the operating light source may cause eye injury.
| # | Disassemble/dismantle steps | Tools needed |
| a | Remove COVER [1] by twisting and pulling simultaneously | |
| b | Remove REFLECTOR [2] | |
| c | Remove LENS [3] by unclicking the snaps (put tool in the gap between LENS [3] and FRAME [5] at one of the snaps, tilt to disengage | FLATHEAD SCREWDRIVER 2mm |
| d | Undo SCREWS [4] 2x | TORXHEAD SCREWDRIVER T10 |
| e | Remove FRAME [5] | |
| f | Remove LIGHT SOURCE – LED MODULE [6] after disconnecting wires | |
| g | Undo SCREW [7] 2x | TORXHEAD SCREWDRIVER T10 |
| h | Dismantle HEATSINK [8] from BRACKET [11] by pulling them apart | |
| j | Undo SCREW [10] 2x | CROSSHEAD SCREWDRIVER PH |
| k | Remove LIGHT SOURCE – HUE CONNECT [9] with wires |
| SKU | Color | Country |
| 929003115701 | Black | N/A |
| 929003115801 | White | N/A |
| STATUS Approved 2022-08-01 | DESCRIPTION Hue Perifo cylinder spotlight | 3 | 2022-07-18 | ||||
| DOC 12NC 442295716703 | |||||||
| NAME Ad Ga | LOCAL PART ID I | SH. 1 | sH.511-1 I | A3-L | |||
| !CHECKED | DATE 2021-05-18 | ||||||
