Asus Usb-ac5 Wireless Ac1300 Dual Band Usb Adapter User Guide

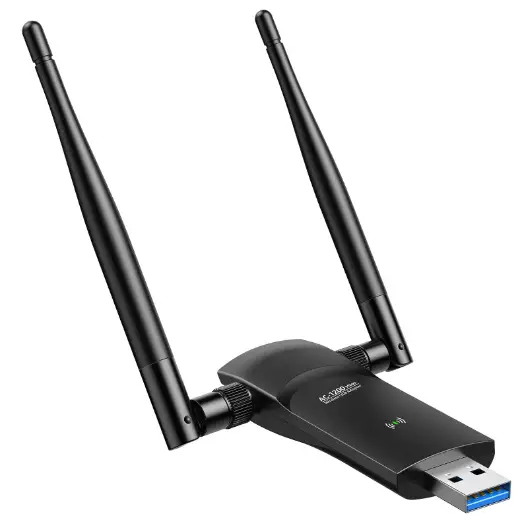

ASUS USB-AC5 Wireless AC1300 Dual-band USB Adapter

NOTE: For more details and advanced configuration instructions, refer to the user manual included in the Utility CD.

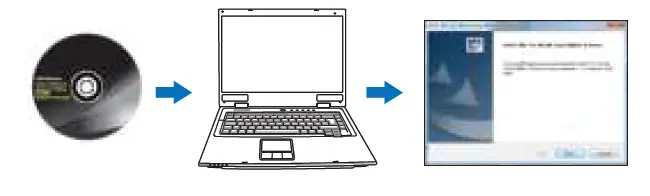

1. Insert the support CD into the optical drive and follow the onscreen instructions to complete the installation.

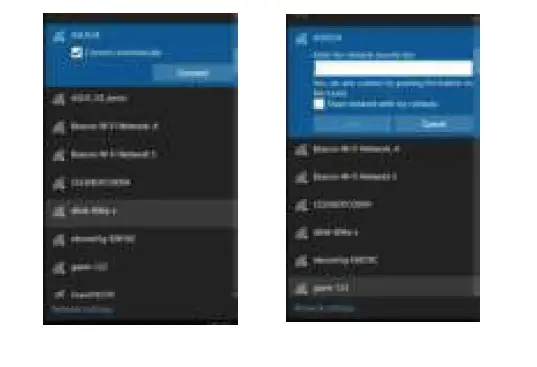

2. Configure USB-AC58 using ASUS driver. Connect to a wireless network on Windows 10.

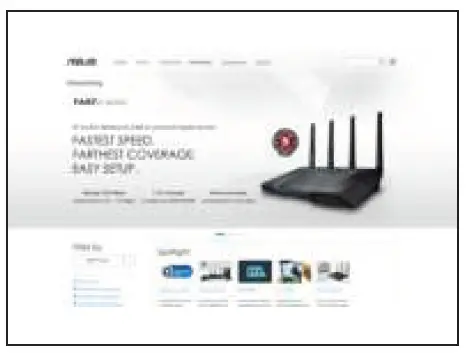

3. The setup is completed.

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

•  This device may not cause harmful interference.
•  This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•  Reorient or relocate the receiving antenna.
•  Increase the separation between the equipment and the receiver.
•  Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
•  Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Prohibition of Co-location
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device was tested for typical lap held operations with the device contacted directly to the human body to the back side of the notebook computer. To maintain compliance with FCC RF exposure compliance requirements, avoid direct contact to the transmitting antenna during transmission.

WARNING! This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 5 mm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components, as well as packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

REACH
Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

India RoHS
This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls(PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1 % by weight in homogenous materials and 0.01 % by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.

Precautions for the use of the device

• Pay particular attention to personal safety when use this device in airports, hospitals, gas stations, and professional garages.
• Medical device interference: Maintain a minimum distance of at least 15 cm (6 inches) between implanted medical devices and ASUS products in order to reduce the risk of interference.
• Kindly use ASUS products in good reception conditions in order to minimize the radiation level.
•  Keep the device away from pregnant women and the lower abdomen of the teenager.

KC: Korea Warning Statement
This equipment is home use (Class B) electromagnetic wave suitability and to be used mainly at home and it can be used in all areas.

RF Exposure Information
This ASUS product has been tested and meets applicable European SAR limits. The SAR limit is 2.0 W/kg in countries that set the limit averaging over 10 grams of tissue. The specific maximum SAR values for this device are as follows: Body/Extremity 10-g SAR: 0.79 W/kg

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)
This device complies with Innovation, Science and Economic Development Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.CAN ICES-003(B)/NMB-003(B)

Radio Frequency (RF) Exposure Information
The radiated output power of the ASUS Wireless Device is below the Innovation, Science, and Economic Development Canada radio frequency exposure limits. The ASUS Wireless Device should be used in such a manner that the potential for human contact during normal operation is minimized. This equipment should be installed and operated with a minimum distance of 5 mm between the radiator and any part of your body. This device has been certified for use in Canada. The status of the listing in the Innovation, Science and Economic Development Canada’s REL (Radio Equipment List) can be found at the following web address: http://www.ic.gc.ca/eic/site/ceb-bhst.nsf/eng/h_tt00020.html Additional Canadian information on RF exposure also can be found at the following web: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.htm

Networks Global Hotline Information

NOTES

• UK support e-mail: [email protected] For more information, visit the ASUS support site at https://www.asus.com/support/
• CE statement

Simplified EU Declaration of Conformity

ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Full text of the EU declaration of conformity is available at https://www.asus.com/Networking/USB-AC58/HelpDesk/. This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance 5mm between the radiator & your body.

All operational modes

• 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40)
• 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20),802.11ac (VHT40),802.11ac (VHT80)
• The frequency, mode and maximum transmitted power in EU are listed below:
• 2400-2483.5MHz(1-13): OFDM: 19.97dBm(99.3mW); CCK: 19.73dBm(93.9mW)
• 5150-5250MHz (36-48): 22.98dBm(198mW)
• 5250-5350MHz (52-64): 22.99dBm(199mW)
• 5470-5725MHz (100-140): 29.98dBm(995mW)

The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range. The adapter shall be installed near the equipment and shall be easily accessible.

Safety Notices

•  Use this product in environments with ambient temperatures between 0°C(32°F) and 40°C(104°F).
•  Refer to the rating label on the bottom of your product and ensure your power adapter complies with this rating.
•  DO NOT place on uneven or unstable work surfaces. Seek to service if the casing has been damaged.
•  DO NOT place or drop objects on top and do not shove any foreign objects into the product.
•  DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.
•  DO NOT cover the vents on the product to prevent the system from getting overheated.
• DO NOT use damaged power cords, accessories, or other peripherals.
•  If the Adapter is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
•  To prevent electrical shock hazards, disconnect the power cable from the electrical outlet before relocating the system.
