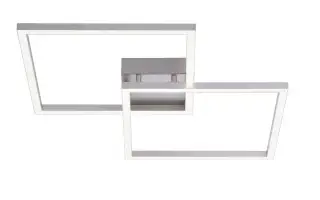

LeuchtenDirekt 996625 IVEN Ceiling Light LED Instruction Manual

This Product contains light source of energy efficiency class<E>.

Feature

• LED: 20 W
• 2.400 l m 43 W 2.0 學0 lm
• t: 20.000 h
• Tk: 2.700 – 5.000 K
• 15.000 x
• < 0,5 s

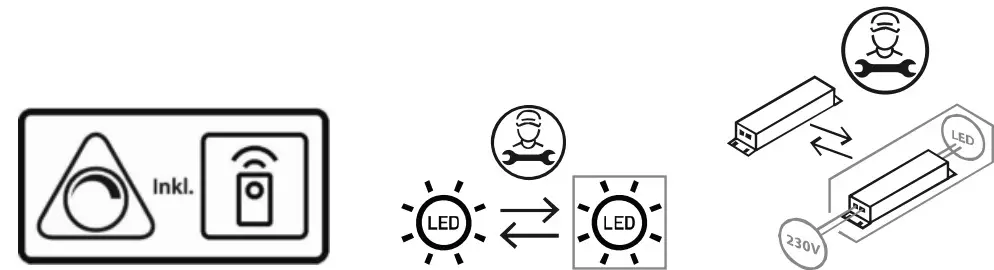

Indicator

Tools Needed

Assembling

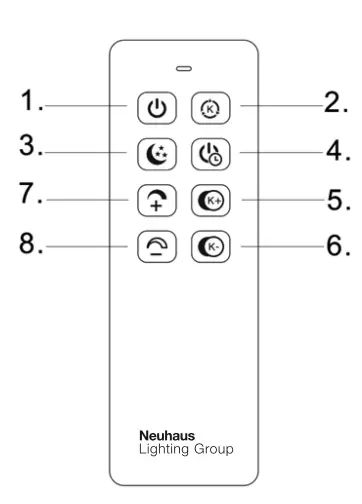

Remote Control Instruction

1. On/Off
2. Change color temperature
3. Night light (yellow 5%)
4. Turn off the light after 1 minute
5. Increase color temperature
6. reduce color temperature
7. Dim up the brightness (max. 100%)
   Short press: max. brightness
8. Dim up the brightness (max. 5%)
   Short press: min. brightness

Specifications

• Operation voltage: DC3V

• Operation currant: <15mA
• Remote distance: >6m
• Remote control: infrared
• Battery: 2x 1,5V AAA

Battery Replacing

Customer Support

LeuchtenDirekt GmbH Olakenweg 36 · D-59457 Werl
+49(0)2922 9721 9290
[email protected]
www.leuchtendirekt.de
