Leuchten Direkt 14017-55 Iven Ceiling Light Led Instruction Manual

Leuchten Direkt 14017-55 IVEN Ceiling Light LED

This product contains light sources of energy efficiency class <F>.

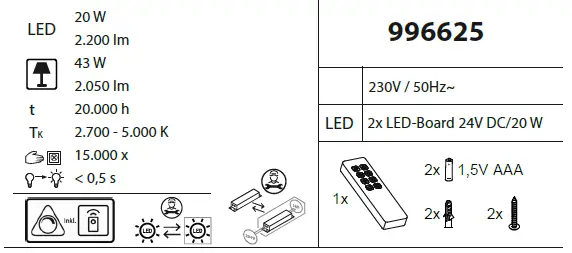

TECHNICAL DATA

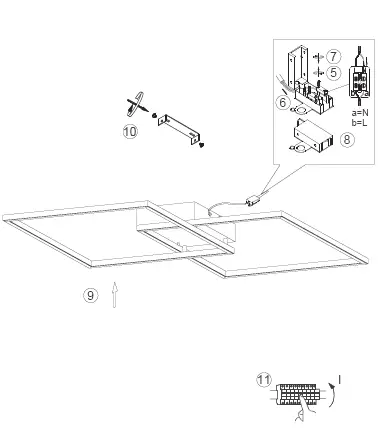

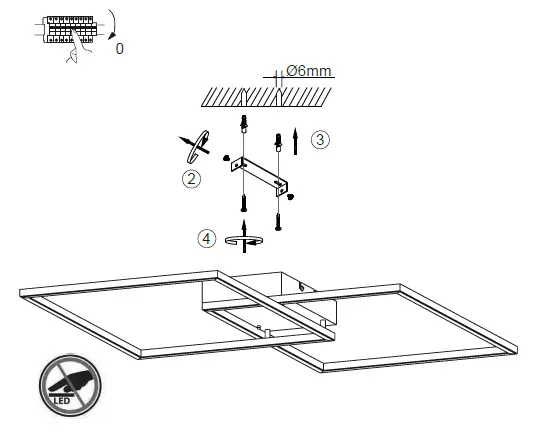

INSTALLATION

Remote Control Instructions

1. On / Off
2. Change color temperature
3. Night light (yellow 5%)
4. Turn off the light after 1 minute
5. Increase color temperature
6. reduce color temperature
7. Dim up the brightness (max. 100%) Short press: max. brightness
8. Dim down the brightness (min. 5%) Short press: min. brightness

Specifications

• Operation voltage: DC3V
• Operation current: <15mA
• Remote distance: >6m
• Remote Control: Infrared
• Battery: 2x 1,5V AAA

LeuchtenDirekt GmbH Olakenweg 36.D-59457 Werl

• +49(0)2922 9721 9290
• [email protected]
• www.leuchtendirekt.de
