EMB250
NICOR Emergency Pack 25W
Product Description

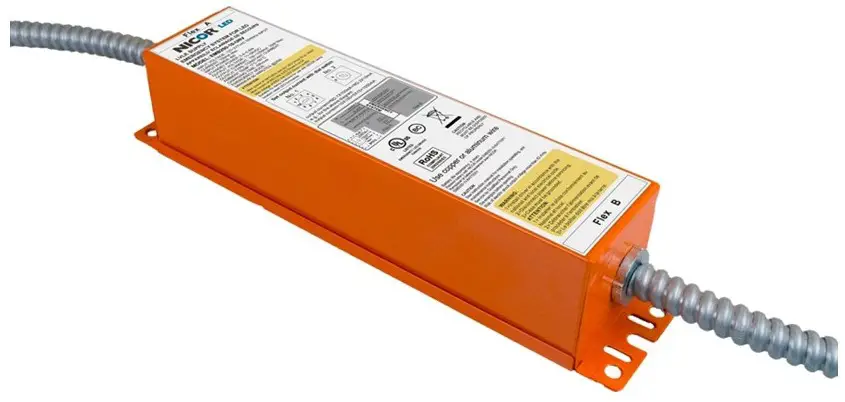

The EMB250 is an LED emergency driver for factory or field installations that enables the normal and emergency operation of a LED fixture. During a power failure, the EMB250 activates emergency mode to maintain the constant output power to the fixture for a minimum of 90 minutes without light degradation. The EMB250 contains a battery, charger, and converter circuit in a single housing. Also includes a test button and button installation faceplate.
Construction
- Heavy duty steel case
- Orange powder coat finish
- 24″ flexible conduit leads
Electrical
- Long life high-temperature Li-Fe-Po battery
- Single piece test switch/charge indicator included
- Constant power design provides consistent lumen output for >90 minutes
- Self-sensing output voltage adjusts for various products such as troffers, downlights, strips, etc.
- 48-hour recharge time
Installation
- For use with switched or unswitched fixtures
- Rated for plenum, damp location, and type IC luminaires
- UL Classified for factory and field installation
Warranty
- 5-year limited system warranty standard

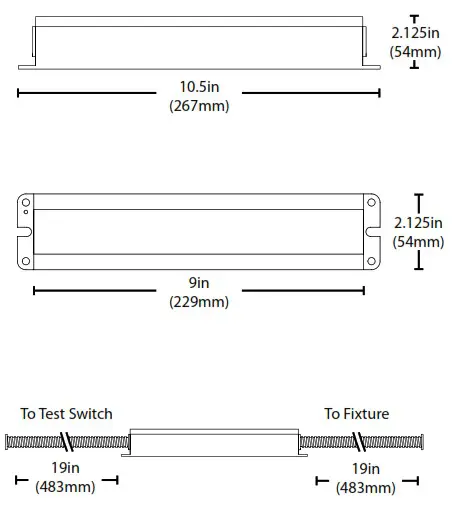

PRODUCT INFORMATION
| Input Voltage: | 120-277 VAC 50/60 Hz |
| Input Power: | 8W |
| Output Voltage: | 11-56 VDC |
| Output Power: | 25W (Max) |
| Emergency Operation: | 90 Minutes |
| Operating Temp: | 32°F to 122°F (0°C – 50° C) |
| Weight: | 2.8 lbs |
Project: _______________
Catalog: _______________
Type: __________________
Date: ___________________
Ordering Information
Example: EMB250-10-UNV
| Series | Version | Voltage |
| EMB250 | 10 (Version 1) | UNV (120-277V) |
Specifications and dimensions subject to change without notice
NICOR, Inc. 2200 Midtown Place NE, Albuquerque, NM 87107 P: 800.821.6283 F: 800.892.8393
www.nicorlighting.com June 6, 2022 10:35 AM
EMB45 Page 1 of 1
