Bb Junior 16-92021 Volkswagen My First Electric Car Instruction Manual

16-92021 Volkswagen My First Electric Car
Instruction Manual

Class 1 LED product

Contents:

Vehicle X 1
Transmitter x 1
Instruction Manual X 1

Battery Requirement:

Vehicle: 3 x 1.5V “AA” LR6/R6 batteries.
Transmitter: 2 x 1.5V “AAA” LRO3fR03 batteries.

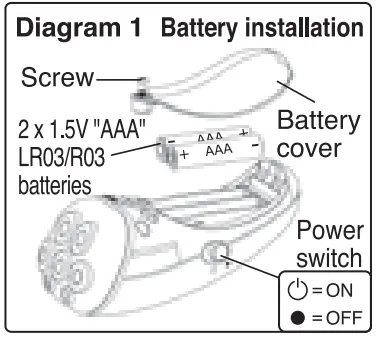

Transmitter: Battery installation (Refer to Diagram 1)

1. Switch the power OFF.
2. Use a screwdriver to loosen the screw on the battery cover and to open the battery cover. (Screwdriver is not included).
3. Install 2 new 1.5V “AAA’ LR03/R03 batteries with correct polarity (+/-) as shown inside the battery compartment.
4. Install the battery cover and then tighten the screw on the battery cover.

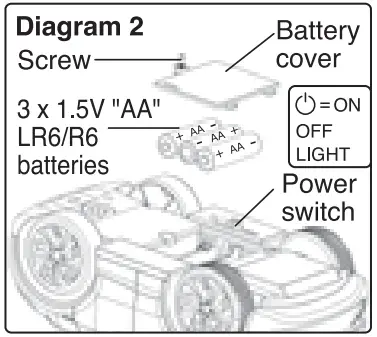

Vehicle: Battery Installation (Refer to Diagram 2)

1. Switch the power OFF.
2. Use a screwdriver to loosen the screw on the battery cover and to open the battery cover. (Screwdriver is not included).
3. Install 3 new 1.5V “AR LR6/R6 batteries with correct polarity (+/-) as shown inside the battery compartment.
4. Install the battery cover and then tighten the screw on the battery cover.

How to play: (Refer to Diagram 1, 2, 3, 4 & 5)

1. Pull and discard plastic strips in the vehicle before the first play. Vehicle (Diagram 2, 3)

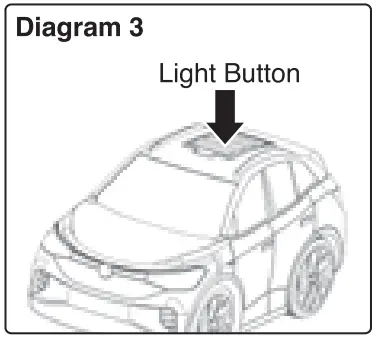

2. Slide the power switch to Light or Remote control mode ( ( ) position, and press the Light Button for lights and sounds.
3. Slide the power switch to ( ) position for remote control playing.
   Transmitter (Diagram 1, 4 & 5)

4. Switch ON ( () the transmitter.

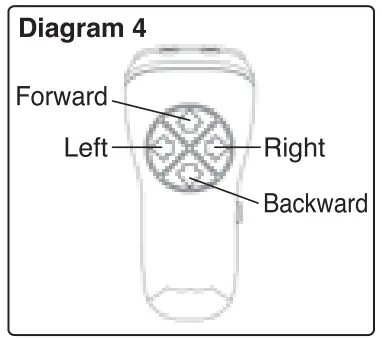

5. Press the Forward button to drive the vehicle forward.
6. Press the Backward button to make the vehicle go backward and the Light Button flashes with sounds.
7. Press the LetVRight button to make the vehicle turn let right and the Light Button flashes with sounds.
8. If the frequency of the vehicle and transmitter does not match, switch off both the vehicle and transmitter, then turn them on again.

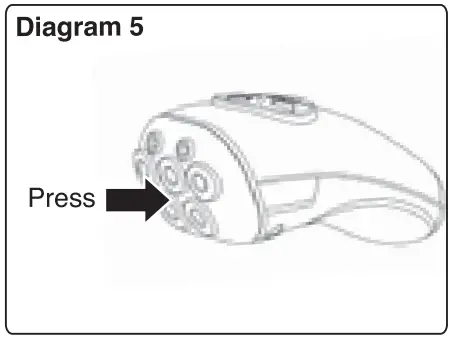

9. Press the front part of the transmitter to activate light Button with sounds.
10. Remember to switch OFF the vehicle and transmitter after playing.

Cautions:

1. Do not attempt to disassemble the products.
2. Do not operate the vehicle with the same frequency as other players In the same location. This will interfere and cause the vehicle to lose control.
3. Make sure the batteries are installed with correct polarity (+/-) as shown inside the battery compartment.
4. Remove the package, take out all accessories and assemble the product before giving it to children to play.
