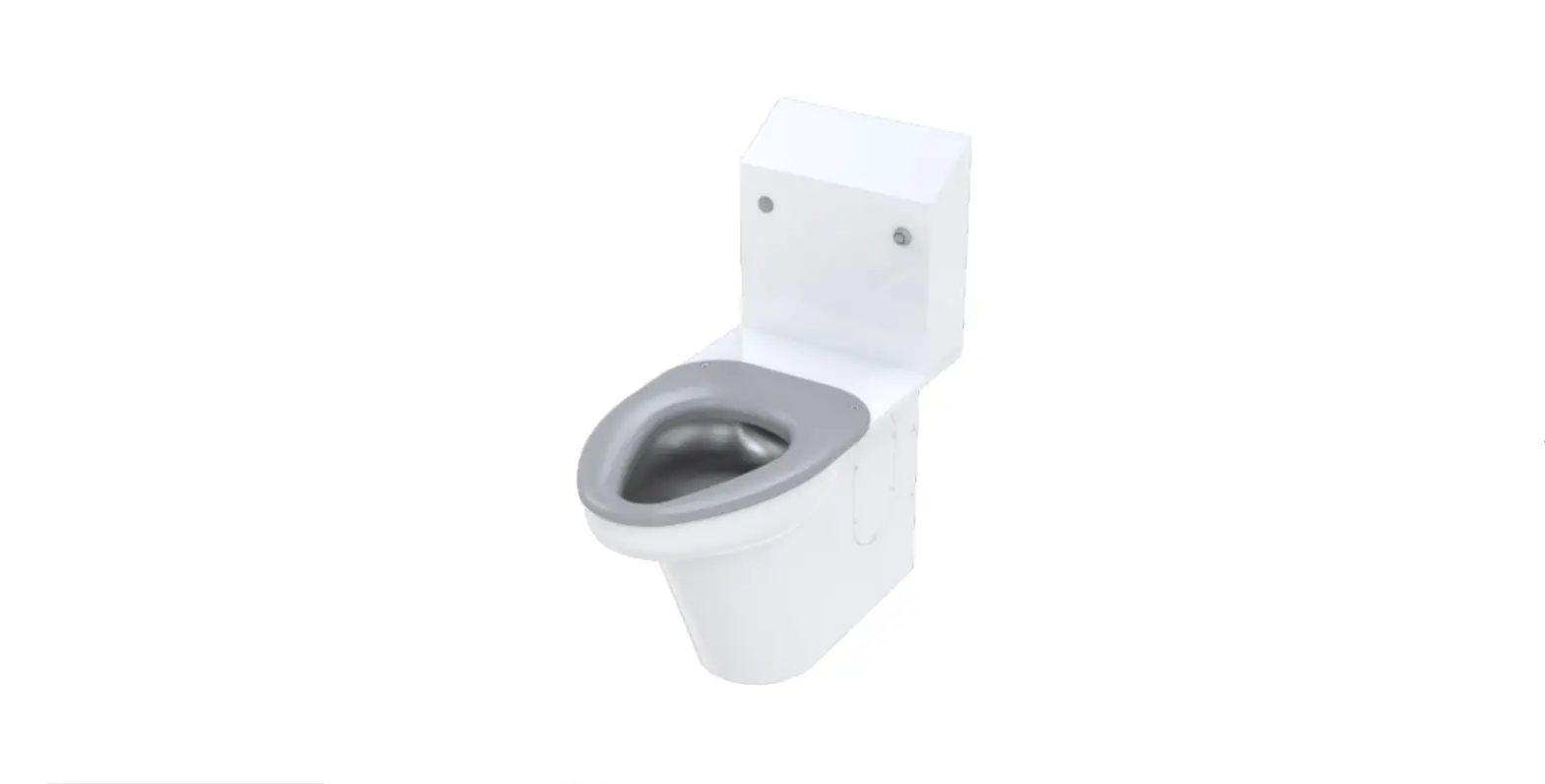

WH2142-W-2 Ligature-Resistant Toilet

Product Information

The WH2142 Toilet fixtures are available in two variants, namely
Wall Supply, Wall Waste Toilet and Top Supply, Wall Waste Toilet.
These fixtures are supported on-floor and are not intended for use
with In-Wall Support Carriers. Depending on the wall construction,
the rear wall may require backing for mounting the fixture to the
wall. The installer provided wall anchors and wall anchoring
hardware must be appropriate for wall construction. The toilet
waste connections are provided using a 5-1/2 Diameter Recessed
Gasket Flange for units with Wall Waste Outlets and a 7-1/2
Diameter Recessed Gasket Flange for Floor Waste units. The
Stainless Steel Gasket Flange is welded in place to the Toilet
P-trap and is fabricated to be flush with the back of the unit
(wall outlet) or flush with the bottom of the fixture (floor
outlet). The depth of the Recessed Gasket Flange is 1/2 deep.

Product Usage Instructions

To ensure proper installation, review the manual thoroughly, and
verify rough-ins before beginning any work. Some options may
slightly alter installation. The installer provided wall anchors
and wall anchoring hardware must be appropriate for wall
construction. Depending on the wall construction, the rear wall may
require backing for mounting the fixture to the wall. ANSI, UFAS or
ADA compliance is subject to the interpretation and requirements of
the local code authority and is the responsibility of the installer
for verification.

Installation:

Review the manual thoroughly and verify rough-ins before
beginning any work.
Ensure that the installer provided wall anchors and wall
anchoring hardware are appropriate for wall construction.
Depending on the wall construction, the rear wall may require
backing for mounting the fixture to the wall.
Install the toilet fixture according to the rough-in dimensions
specified in the manual.

Maintenance:

Refer to the Cleaning & Care Guide provided in the Link or
QR code
(https://www.whitehallmfg.com/uploads/fileLibrary/9900-008-W01.pdf)
for detailed instructions on cleaning and maintaining the
product.
File this manual with the owner or maintenance personnel upon
completion of installation.

View Fullscreen

INSTALLATION, OPERATIONS & MAINTENANCE MANUAL
Best-Care® Toilet

WH2142-W-2 / WH2142ADA-W-2 Wall Supply, Wall Waste Toilet

WH2142-T-2 / WH2142ADA-T-2 Top Supply, Wall Waste Toilet

WH2142-W-EGE10 (SHOWN)

WH2142-T-EGE10 (SHOWN)

TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER: 1.800.591.9360
Technical Assistance E-mail: [email protected]

Important: Some options may slightly alter installation. To ensure proper installation review the manual thoroughly and verify rough-ins before beginning any work. File this manual with the owner or maintenance personnel upon completion of installation.
MGI Engineered Plumbing Products are designed in accord with applicable National Codes and Standards, which may include UPC, ANSI, and ASSE. Installers should use industry standard practice for details not covered within Manual. Prior to installation, supply lines must be flushed of all foreign material such as pipe dope, chips, or solder. Debris or foreign material in water supply may damage valve. An appropriate thread sealant is recommended on all threaded waste and supply connections to reduce the possibility of leaks. Toilet requires a minimum of 25 PSI flow pressure and uses a minimum water consumption of 1.28 GPF.
WH2142 Toilet fixtures are supported on-floor and are not intended for use with In-Wall Support Carriers. Depending on wall construction, rear wall may require backing for mounting fixture to wall. Installer provided wall anchors and wall anchoring hardware must be appropriate for wall construction.
ANSI, UFAS or ADA compliance is subject to the interpretation and requirements of the local code authority and is the responsibility of the installer for verification.
TOILET WASTE CONNECTIONS Units with Wall Waste Outlets are provided using a 5-1/2″ Diameter Recessed Gasket Flange and Floor Waste units will receive a 7-1/2″ Diameter Recessed Gasket Flange. The Stainless Steel Gasket Flange is welded in place to the Toilet P-trap, and is fabricated to be flush with the back of the unit (wall outlet) or flush with the bottom of the fixture (floor outlet). The depth of the Recessed Gasket Flange is 1/2″ deep.
The Recessed Gasket Flange is intended for installation and assembly with a common 3″ or 4″ Toilet Closet Flange Fitting, Yoke Adapter or similar. The Recessed Gasket Flange provided includes (2) 5/16″ UNC Threaded Captive Nuts, which are on 6″ centers. These tapings allow for assembly of Closet Bolts and may assist to provide for the Squeeze of the Gasket to seal the waste connection. Certain installation conditions may not require using the tapings. Choice of the Gasket material is up to the installer however, it is common for Neoprene or Felt Gaskets to be used with Wall Waste Toilet units.
Please refer to the Link or QR code provided. For Cleaning & Care Guide: https://www.whitehallmfg.com/uploads/fileLibrary/9900-008-W01.pdf

WHITEHALL MANUFACTURING · P.O. BOX 3527 · City of Industry, CA 91744-0527 U.S.A. Phone (800) 782-7706 · (626) 968-6681 · Fax (626) 855-4862 · Web: www.whitehallmfg.com

INSTALLATION, OPERATIONS & MAINTENANCE MANUAL
TECHNICAL DIMENSIONS

WALL SUPPLY
Top View
[743]

TOP SUPPLY
Top View
[743] [373] [373]

Side View

4
Side View 234″ [70] 7

2 6
7

1538″ [391]

WH2142-W-2
Side View

6
Side View 234″
[70]

[1359381″] WH2142-T-2

2 6

1838″
[467] WH2142ADA-W-2

1838″
[467] 6
WH2142ADA-T-2

NOTE: All dimensions are in Inches (mm)

[1] Toilet [6] Wall Anchors: Provided by others to suit wall [2] 1-1/2″ NPT Female Wall Supply Flush Inlet Connection construction[3] 1-1/2″ NPT Male Top Supply Flush Inlet Connection [7] Flush Valve Shown for reference only and is not [4] Ligature Resistant Toilet Seat Cover

included. Refer to optional Flush Valve Access Panel

[5] Access Panel with Vandal Resistant Fasteners

and Cover for additional details

WHITEHALL MANUFACTURING · P.O. BOX 3527 · City of Industry, CA 91744-0527 U.S.A. Phone (800) 782-7706 · (626) 968-6681 · Fax (626) 855-4862 · Web: www.whitehallmfg.com

INSTALLATION, OPERATIONS & MAINTENANCE MANUAL
ROUGH-IN DIMENSIONS

Ligature Resistant Toilets require specific Flush Valve model to suit application for Supply Type (Concealed / Exposed), Flow Rate and ADA Accessibility (when applicable). Refer to the following WhiteHall® Accessories:
– Concealed Flush Valve Access Panel: Model WH2898 and WHD2898 for ADA – Exposed Flush Valve Cover: WH2802-SLPT and WH2802-SLPT -ADA

WALL SUPPLY

Front View

6″

[152] 4 [152] 4

13″ [330]

521″ [140]

1034″ [273]

3″ [76]

16″ [406]

521″ [140]

1334″ [349]

3″ [76]

WH2142-W-2

WH2142ADA-W-2

TOP SUPPLY Front View

434″ [120]

*Note: Flush Valve Supply Inlet dimensions provided are for reference only. Dimensions shown will coordinate with Whitehall Manufacturing optional models WH802-SLPT and WH2802-SLPT-ADA Top Supply Flush Valve

covers.

434″

[120]

3
*2621″
[673] 521″ [140] WH2142-T-2 1

6″ [152]

*2621″

[673]

1034″ [273] 3″
4 [76]

521″ [140] 1 WH2142ADA-T-2

6″ [152]

1334″ [349]

3″ [76] [1] 5-1/2″ Recessed Gasket Flange (Flush with back of fixture for connection to Closet Flange) [2] 1-1/2″ NPT Female Wall Supply Flush Inlet Connection [3] 1″ NPT Female Flush Valve Supply Inlet [4] 5/8″ Dia. Openings provided for Mounting to required Wall Anchors and/or Wall Backing.

WHITEHALL MANUFACTURING · P.O. BOX 3527 · City of Industry, CA 91744-0527 U.S.A. Phone (800) 782-7706 · (626) 968-6681 · Fax (626) 855-4862 · Web: www.whitehallmfg.com

Drawing # 6900-232-001 04/28/2023

INSTALLATION, OPERATIONS & MAINTENANCE MANUAL
INSTALLATION DETAILS

See Detail C

6 3

4 5

Top View

INSTALLATION

[1] Closet Flange (By Others) [2] Wall Channel (Provided)

A. Position Mounting Channel [2] onto fixture side of Reinforced Wall locating as [3] Wall Mounting Hardware (By Others)

indicated. Wall Anchors and Fasteners [3] are by others. See Detail A.

[4] 1/4-20 Screws

B. Place Toilet up against wall. Attach toilet housing to Mounting Channel [2] using 1/4-20 Screws [4]. Detail B.

[5] Neoprene Gasket (By Others) [6] 5-1/2″ Dia. Recessed Gasket Flange (Provided)

C. Remove Access Panel and Fasteners [7] make up toilet waste connection.

[7] Access Panel and 1/4″-20 Fasteners

D. Install Flush Valve to fixture as required per manufacture’s recommendations.

Provided By Flush Valve Manufacturer

1-12″ NPT Female Fixture Inlet Connection

Detail C
Applies to -W In-Wall Concealed Flush Valve models only.

Scored Tube (Length May Vary
Cut to Fit)

Gasket

Installer Provided 1-1/2″ NPT Nipple (Lengths May Vary)

WHITEHALL MANUFACTURING · P.O. BOX 3527 · City of Industry, CA 91744-0527 U.S.A. Phone (800) 782-7706 · (626) 968-6681 · Fax (626) 855-4862 · Web: www.whitehallmfg.com

INSTALLATION, OPERATIONS & MAINTENANCE MANUAL
PLASTIC SEAT INSTALLATION
1/4″ -20 UNC Carriage Bolt
3/32″ Hex Head Set Screw

See Step B.

INSTALLATION INSTRUCTIONS:
Prior to installing, Verify if the following is Included: Carriage Bolts [1], Tapered Nuts [2], Front Set Screw [3], and Toilet Seat [4].
A. Partially install Front Set Screw [3] into the Mounting Tab [5] located at the front of the Toilet Seat [4]. Set Screw [3] should not pass beyond Mounting Tab [5].
B. Position the Toilet Seat [4] onto Toilet, and press down firmly. C. Fasten the Toilet Seat [4] to the Toilet by using the Carriage Bolts [1] on top of the Toilet Seat [4] and tighten by
installing the Tapered Nuts [2] from the underside of the Toilet rim. D. With Toilet Seat [4] Fastened, pressed downward on Toilet Seat [4] and tighten the Front Set Screw [3] until it
firmly engages under the Flushing Rim [6].
NOTE: If Toilet Seat has Hole Plugs, remove them prior to installing Toilet.

SLOPING FLOORS:

18″ [457]

When required for sloping floors, refer to detail to create a level pad

for on-floor Toilet Housing.

IMPORTANT: Sloping floor detail is provided for reference only and should not be

881″

considered as a recommendation by the fixture manufacturer. Installer [206]

assumes all responsibility to alterations of site conditions and affected

fixture dimensions.

R4″
