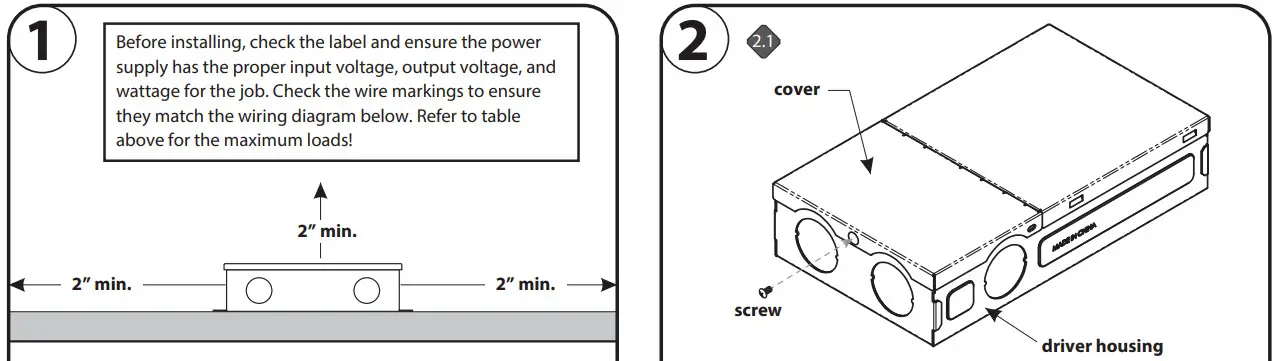

PDCU-D Pure DC® Universal Power Supply – Installation Instructions Models PDCU-D-30-24 & PDCU-D-60-24 Please read all instructions prior to installation and keep them for future reference! This power supply is to be installed in accordance with Article 450 of the National Electrical Code. The power supply must be installed in a well-ventilated area and free from explosive gases and vapors. Proper operation requires the free flow of air. As this power supply is hardwired, it should only be installed by a qualified electrician. UL Class 2 recognized

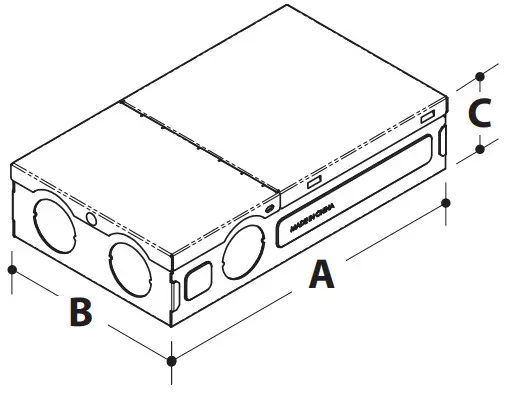

| MODELS | PDCU-D-30-24 | PDCU-D-60-24 |
| MAX Load | 30 watts | 60 watts |
| A.Length | 6.10″ | 7.93″ |
| B.Width | 3.35″ | 3.35″ |
| C.Depth | 1.32″ | 1.32″ |
| Net Weight | 1.1 lbs | 1.5 lbs |

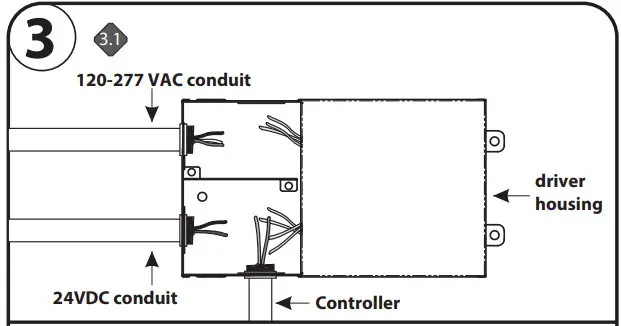

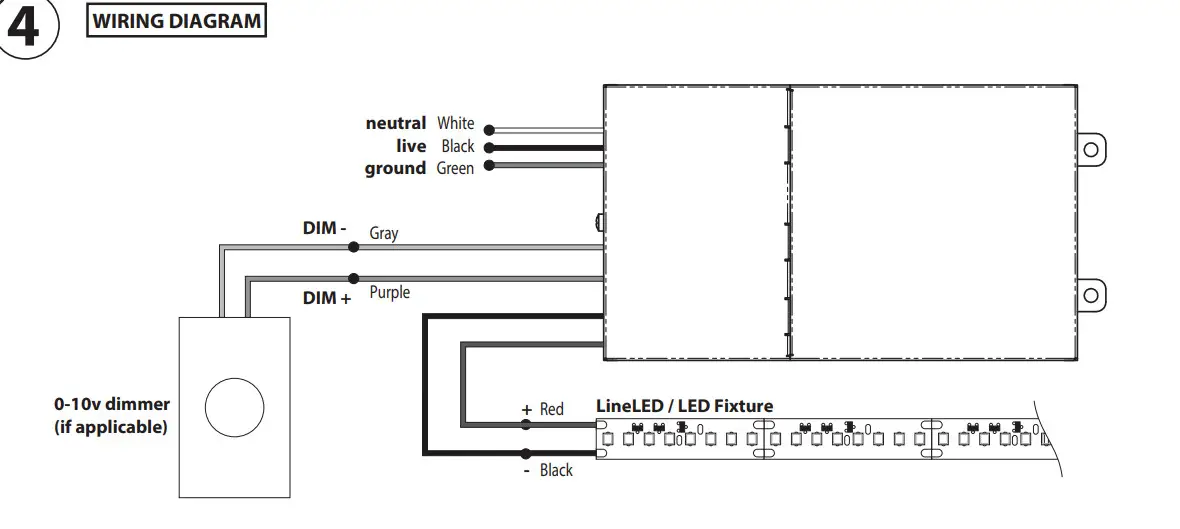

3.1 Insert the 120-277 VAC power into the driver housing from the electrical panel. This is followed by bringing the 24V DC low voltage wires from the LEDs into the driver housing. In addition, bring the controller wire if applicable. Refer to the diagram on page 2 to make all the proper wiring connections.

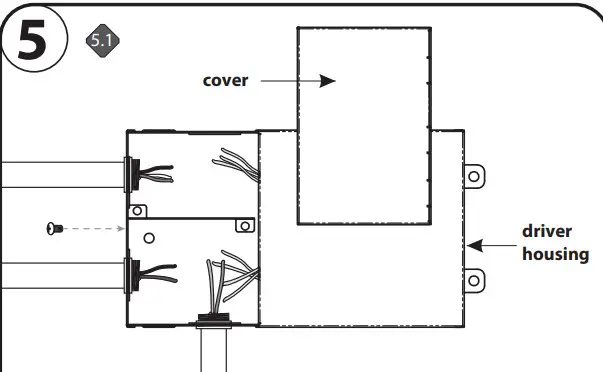

5.1 Insert the wire nut connections in the driver housing and close housing cover. Secure by tightening the two screws.
Page 2of 2
7777 Merrimac Ave Niles, IL 60714
T 224.333.6033
F 224.757.7557
[email protected]
www.luminii.com
*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
REV0.5 03032021
