Reveal Ks Series Body Camera User Guide

KS2 + KS4
KS-Series
Quick Start Guide
V1.1

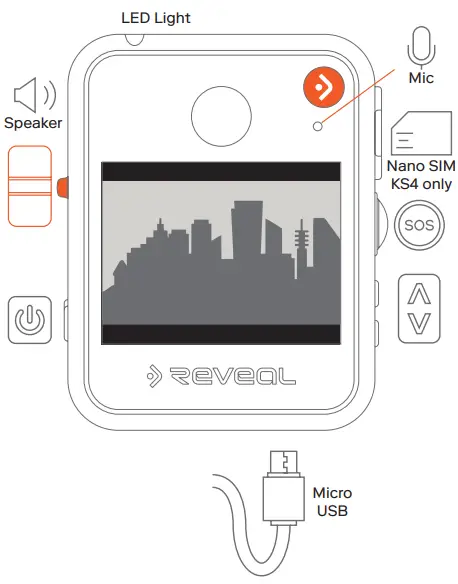

Basic Functions

Button Functionality

Buttons	Function
	Start Recording
	End Recording
	Power On (2s) Power Off (2s) Standby (Click) Select Menu Item (Click)
	SOS Mode (Streaming)
	Open Menu Navigate Menu Stealth Mode (2s)

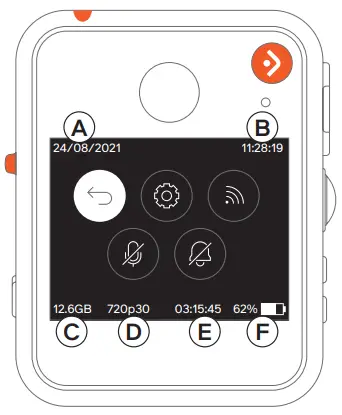

Menu Navigation

Button Functionality

Menu Item	Function
	Open Menu Navigate Menu
	Select Menu Item (Click)
	Back
	Settings
	Streaming
	Audio Mute
	Stealth Mode

Screen Data

Recording

Button Functionality

Buttons	Function
	Start Recording
	End Recording
	Mark as Important
	SOS Mode (Streaming)
	Open Menu Navigate Menu Stealth Mode (2s)

Screen Data

SIM Card Insertion (KS4 only)

1. Remove the two fixing screws from the SIM card cover using the tool provided.
2. Insert the SIM card as per the illustration.
3. Fix the SIM card cover back in place. Ensuring the screws are tightened to maintain waterproofing.

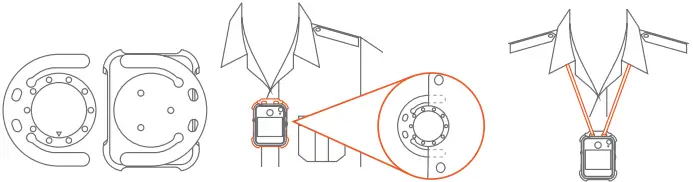

Mounting

The KS-Series camera has several mounting options including:

1. Magnet Mount (pre-attached)
2. Klick Fast Stud (supplied in the box)
3. Crocodile clip (supplied in the box)
4. Lanyard (supplied in the box)

Guidance for camera mounting can be found on the Reveal Website: https://www.revealmedia.co.uk/support

Technical Specifications

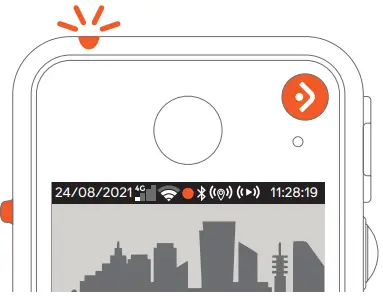

Notifications

LED light

	Operation
	Powered on
	Standby
	Recording
	Pre-Recording
	Trigger Mode
	Connecting*
	Connected*
	Charging
	Charging
	Fully charged
	DEMS 360
	Uploading
	Deleting files
	Not booked out & Charging
	Not booked out & Charged
	Booked out & Charging
	Booked out & Charged
	Updating Firmware

Connectivity

	No SIM Card*
	SIM Card, LTE inactive*
	Signal Strength and band*
	Wi-Fi Signal Strength
	Bluetooth trigger mode
	Video Streaming Enabled, but not active
	Video Streaming Active
	GPS enabled but no fix + Sat Count
	GPS enabled with fix + Sat Count
	GPS Streaming Enabled, but no fix
	GPS Streaming Active with fix

*KS4 only

Product conformance

How to recycle your equipment
The symbol is shown here and on the packaging means that the product is classed as electrical or electronic equipment, so DO NOT put it in your normal garbage bin.
It’s all part of the Waste Electrical and Electronic Equipment (WEEE) directive to recycle products in the best way, and get rid of dangerous things more safely.
You should contact your retailer, supplier, or local city office for advice on how to dispose of this product in an environmentally friendly way.

Reduction of hazardous substances
This product is compliant with the EU Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) Regulation (Regulation No 1907/2006/EC) and the EU

Restriction of Hazardous
Substances (RoHS) Directive (Directive 2011/65/EU).

Radio Equipment Directive (RED)
The KS-Series product is compliant with the requirements of the Radio Equipment Directive (2014/53/EU).

FCC statement
The KS-Series complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The KS-Series has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment.

SAR Safety
FCC RF Exposure requirements: The highest SAR value reported under this standard during product certification for use next to the body with the minimum separation distance of 0mm is 0.741W/Kg.
This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter.
This product is in compliance with FCC RF exposure requirements and refers to the FCC website https://apps.fcc.gov/oetcf/eas/reports/GenericSearch.cfm search for FCC ID: 2AL26-KS2
All transmission frequencies of U-NII-1, U-NII-2A, U-NII-2C, and U-NII-3 comply with 47 CFR FCC Part15.407(g) and the manufacturer declares that their transmission is maintained within the U-NII-1, U-NII-2A, U-NII-2C, and U-NII-3 bands.

Battery Safety and Storage

Battery safety

Reveal’s body cameras use lithium-Ion batteries which are common in most portable devices such as radios and mobile phones. Reveal’s cameras are safety tested with the appropriate certification.
Damage to a lithium-Ion battery can cause excessive heat build-up often associated with an audible “hissing” sound, smoke, and, in extreme cases, combustion. The KS-Series casing provides a significant degree of battery protection, however, if the case becomes punctured or crushed by excessive forces, then there is a risk of battery damage. Therefore, we recommend that the user of cameras performs a risk assessment as to the role of the wearer and the likelihood of excessive trauma to the camera.

If a camera becomes excessively hot or emits any unusual sounds or smoke then:

• Immediately detach the camera and place it in a safe area.
• Do not charge the camera.
• Contact Reveal Support.

Storage

Store in a dry place, away from direct sunlight and sources of heat, at a temperature between -20°C and 50°C (-4°F to 122°F).
Lithium-ion batteries discharge naturally over extended periods of time and if not charged for prolonged periods of time, may deteriorate resulting in reduced performance and failure.
If your KS-Series camera is kept in long-term storage it should be charged to at least 50% of the full charge every six months. Your warranty may be invalidated if you fail to recharge your battery regularly or to follow other instructions for the storage, installation, commissioning, use, or maintenance of the camera.

Contact:

United Kingdom
Reveal Media Ltd., Riverview House,
20 Old Bridge Street,
Hampton Wick, Surrey KT1 4BU
Telephone: +44 (0) 203 890 2000

Europe
Reveal GmbH
Rathenaustrasse 3, 02763 Zittau, Germany
Telephone: +49 5151 783 0128

United States
Reveal Media USA Inc.,
13420 Reese Boulevard West,
Suite 13, Huntersville,
North Carolina, 28078
Telephone: (+1) 888 269 9924
