AZAI6WSPDKC
Contains FCC ID: VPYLBEE5hY1MW
Contains IC: 772C-LBEE5hY1MW

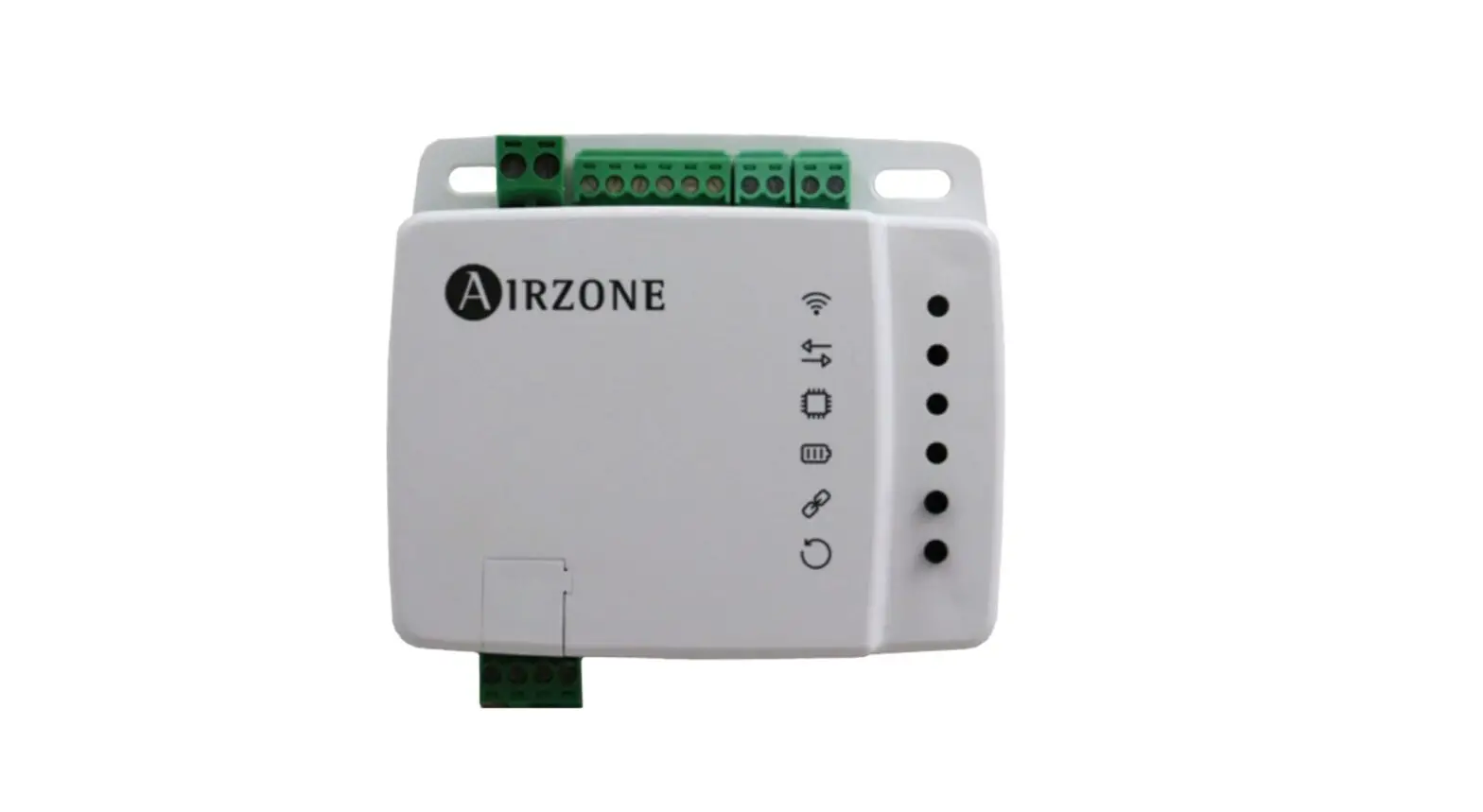

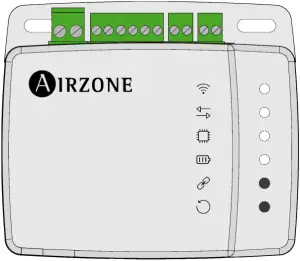

DKN PLUS INTERFACE
Wi-Fi controller to manage Sky Air and VRV / Residential Daikin units remotely from the Cloud. Online control with the “DKN Cloud NA” App (available for iOS and Android). Wireless Wi-Fi connection. Externally powered by the Daikin unit. Functionalities:
- Control of the parameters of the unit.
- Temperature and operating mode time schedules.
- Multi-user and multi-session.
- Port for integration via Modbus protocol MODBUS RTU or BACnet MSTP.
- Cloud and/or third party smart thermostat integrations (3PTI).
- On/Off output and input.
TECHNICAL SPECS
TECHNICAL SPECS| Power supply and consumption | |
| Type of power supply | Vcc |
| V max | 18 V |
| I max | 220 mA |
| V in | 12-16 V |
| Consumption | 1.08 W |
| 3PTI External power supply | 24 Vac |
| Supplied wire length | 2.5 m (8.2 ft) |
| Wi-Fi Communication port | |
| Protocol | WiFi - CERTIFIED TM 802.11b/g/n (802.11n up to 150 Mbps) |
| Model | LBEE5HY1MW |
| Communication frequency | 2,4/5 GHz |
| Maximum power-Antenna power | 19.5 dBm |
| Sensitivity | -82 dBm |
| IP address | Static-DHCP |
| Bluetooth Communication | |
| Protocol | Bluetooth v5.0 EDR and BLE specification |
| Bluetooth class | Class-1, class-2 and class-3 transmitter |
| Modbus-BACnet : Port | |
| Shielded twisted pair | 2 x 0,22 (AWG 23 2 wired) |
| Communication protocol | MODBUS RS-485 Par 19200 bps BACnet MSTP |
| Operating temperatures | |
| Storage | -20 … 70 °C (-4 … 158 °F) |
| Operation | 0 … 50 °C (32 … 113 °F) |
| Operating humidity range | 5 … 90% (non-condensing) |
| Mechanical aspects | |
| Protection class | IP 41 |
| Weight | 130 g (0.29 lb) |

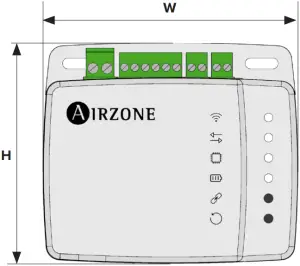

| Dimensions (WxHxD) | 92x80x29 mm (3.62×3.15×1.14″) |
| Relay outputs | |
| N° of relays | 1 |
| V max | 24 Vac |
| I max | 1 A |
| 3PTI Bus | |
| N° of ports | 6 |
| Supplied wire length | 2.5 m (8.2 ft) |
| Digital inputs | |
| N° input | 1 |
| State | Voltage-free |
| Maximum distance | 10 m |
ENVIRONMENTAL POLICY
ENVIRONMENTAL POLICYDo not dispose of this equipment in the household waste. Electrical and electronic equipment contain substances that may damage the environment if they are not handled appropriately. The symbol of a crossed-out waste bin indicates that electrical equipment should be collected separately from other urban waste. For correct environmental management, it must be taken to the collection centers provided for this purpose, at the end of its useful life.
DKN CLOUD NA APP
DKN CLOUD NA APP
SELF-DIAGNOSIS
SELF-DIAGNOSIS| Meaning | |||
 | Wi-Fi Controller connecting to Wi-Fi network | Blinking | Yellow |
| Wi-Fi Controller connected to Wi-Fi network | Steady | Green | |
| Wi-Fi Controller connected to the server | Steady | Blue | |
| Wi-Fi Controller not configured | Off | ||
 | DKN Controller internal communication | On | Red |
 | Microprocessor activity | Blinking | Green |
 | Power supply | Steady | Red |
 | Data transmission to the indoor unit | Blinking | Red |
 | Data reception from the indoor unit | Blinking | Green |

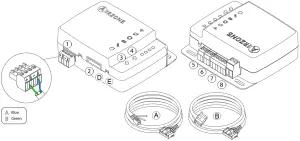

DEVICE ELEMENTS
DEVICE ELEMENTS| Meaning | |
| A | Common wiring cable |
| B | Wiring cable for P1P2 communication |
| 1 | Modbus-BACnet port https://dkncloudna.com/modbus/MI_AZAI6_MODBUS_A4_MUL.pdf |
| 2 | Indoor unit port |
| 3 | Device reboot |
| 4 | Association process reset |
| 5 | Digital input |
| 6 | On-Off output |
| 7 | Smart thermostat connection |
| 8 | External power input |

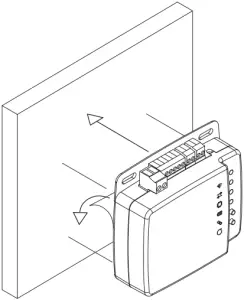

ASSEMBLY

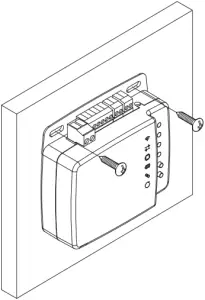

ASSEMBLY1) Screw attachment
2) Double-sided adhesive attachment
1) 2)

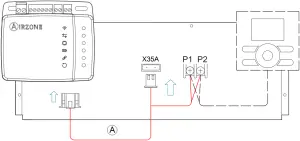

P1P2 CONNECTION (A+B)
P1P2 CONNECTION (A+B)Important: It is optional for the Daikin Remote Controller to remain connected to the P1 P2 port of the unit.
S21 CONNECTION (A+C)

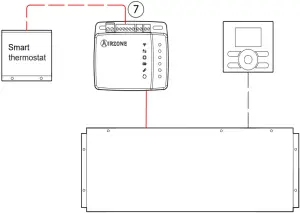

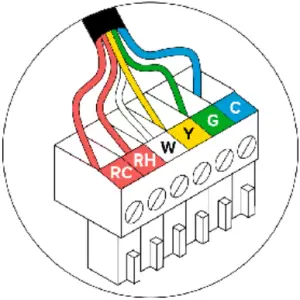

SMART THERMOSTAT CONNECTION
7
OPTIONAL
