Bryant Dental C-flo Dental Material Heater Instruction Manual

A BRYANT DENTAL PRODUCT

C-Flo® Dental Material Heater

Dentistry Reimagined

Bryant Dental is reimagining the impossible. We’re on a mission to empower and inspire dentists globally, with technology that is beautifully designed and expertly engineered.

Combining innovative technology with seamless delivery and responsive customer service, we keep it simple: bringing you products previously thought impossible so you can be your best.

“Every member of the Bryant Dental team I have been in contact with has been exceptional. They have an excellent product, but customer service is on another level.”

C-Flo® Instructions

Intended use: C-Flo® is a material heating device that is used to heat Composite, Local Anaesthetic (LA), and Sodium Hypochlorite. The device is designed to be used by qualified dental professionals, including, but not limited to, dentists and dental hygienists. C-Flo® must be used with the attachments provided.

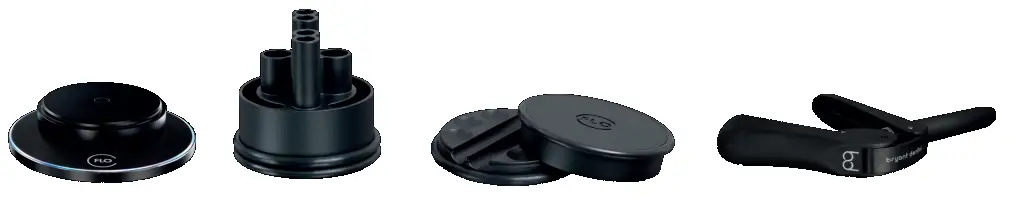

What’s included

• X1 C-Flo® SmartBase
• X1 Vane Attachment
• X1 Ablative Plate
• X1 Hive Attachment (Optional)
• X1 Power Supply Unit (Country Specific)
• X1 Indicator Tag

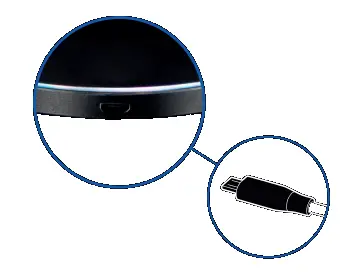

1. Getting Started
   Insert the micro USB power cord into the unit base.

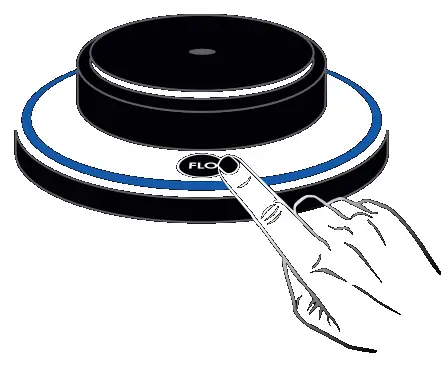

2. Switch ON/OFF
   Hold the C-Flo® icon for four seconds to switch ON/OFF.

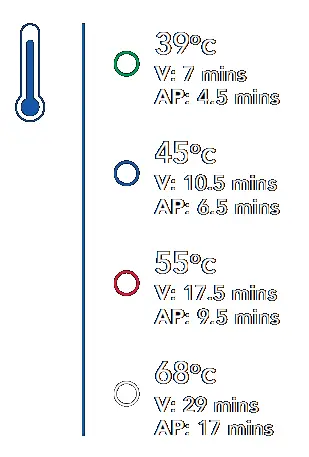

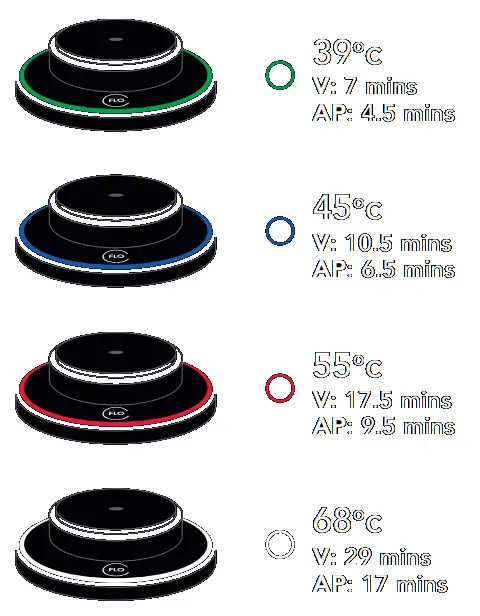

3. Changing Temperature
   Capacitative touch so the temperature can be changed with a press of a button. Click through to find your chosen temperature.
   Please note: V – Vane | AP – Ablative Plate
   LED ring to indicate temperature selection.

4. Changing the Smart Attachment
   Remove by lifting away from the SmartBase.
   The neodymium-enhanced attachments will guide the entry of other attachments for precise relocation and heat transfer.

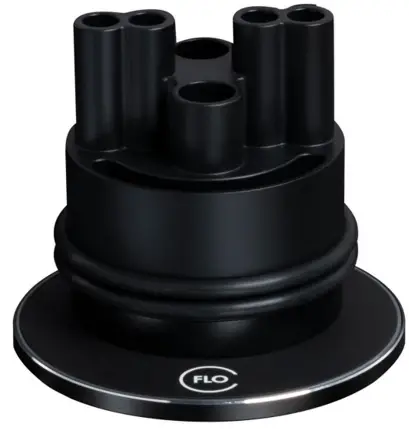

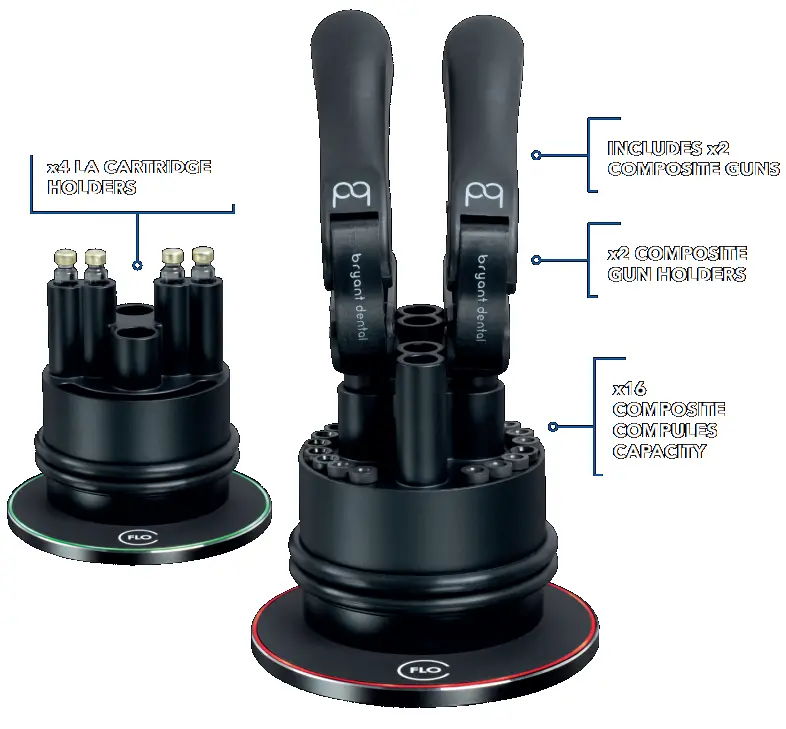

The Vane

The Vane has the capacity to work in ways that suit you, holding a range and number of materials. With an aluminum body acting as an efficient and conductive heat sync.

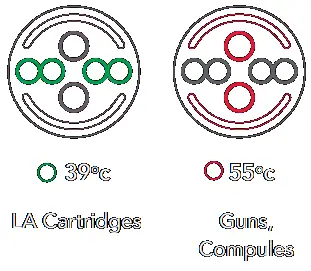

Temperature Guide

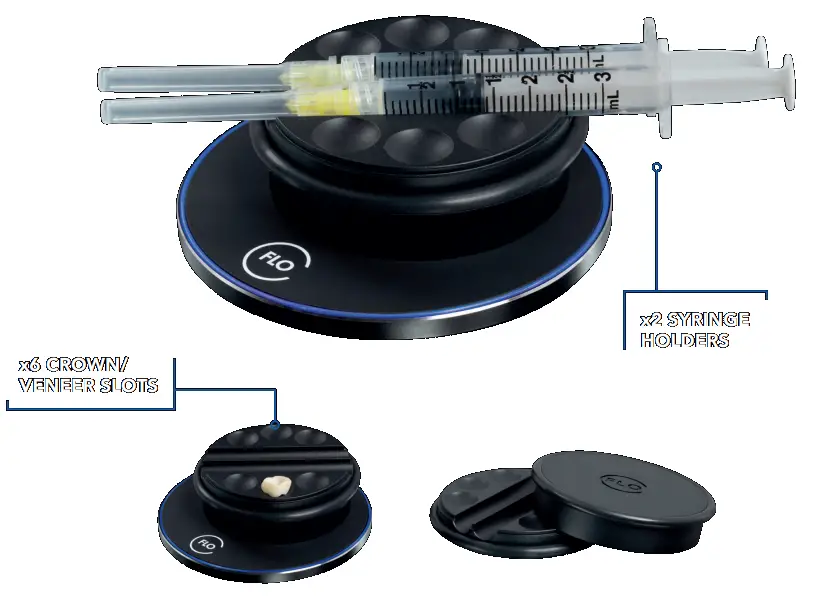

Ablative Plate

The Ablative Plate Smart attachment allows you to heat hypochlorite, which dissolves tissue more effectively from both deep and lateral root canal anatomy.

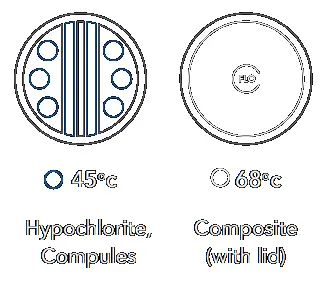

Temperature Guide

Please note: It is recommended to use your clinical judgment when heating composite to this temperature on vital teeth whereby the heat may provoke a pulpal response.

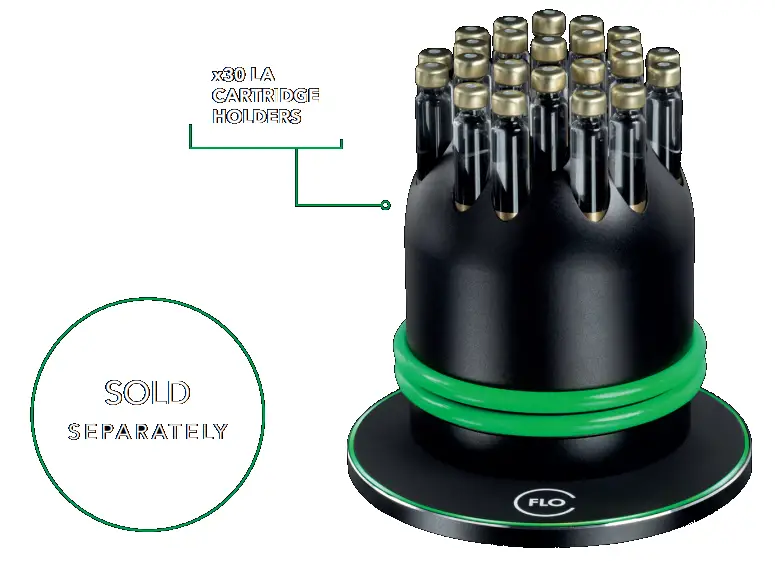

The Hive (optional)
Do you require more capacity? The Hive attachment can hold up to 30 LA Cartridges, making it the perfect addition to your C-Flo® accessories. Sold separately. Ask your product specialists for more details.

Temperature Guide

SmileFast Edition

Working in partnership with SmileFast, the SmileFast Edition includes the C-Flo®  SmartBase, the Vane, and Ablative Plate – with the added benefit of a dedicated SmileFast attachment.

With SmileFast, it is now possible to place perfectly designed composite veneers for 3-3 in just one application. C-Flo® heats to a precise and proprietary temperature to achieve
the correct composite consistency and deliver stunning results.
*Please note: Dentists must complete a SmileFast Activation Course before purchasing the SmileFast Edition.
For details and course, dates visit www.smilefast.com.

Power Supply

It’s important to use the official mains adaptor that has been provided, at all times. Using third-party adaptors can affect the product’s performance and its warranty.

1. Slide country specified plug attachment to the main adaptor.
2. Connect the power adaptor to the micro USB converter.
3. Insert the micro USB cord into the C-Flo® device.

Technical

Specification:

Heating time for each temperature	Shown left
Temperature fluctuation variance	+/- 1C
IPX	IPX (IPX 0 Rated)
Adverse reactions	None Known
Storage temperature	0-35°C
Operating temperature	10-70°C
Input power	12V 3A

Storage & Shipping Conditions

Environmental Operating Conditions

Only use supplied charging plug

Safety Instructions

CONDITIONS
Only use supplied wall plug as using another power supply may risk harm and invalidate the warranty.
Do not immerse the SmartBase in water.
If problems occur with the unit, return to Bryant Dental for repair, attempting to repair yourself with void the warranty.
Do not change or modify any of the existing components without authorization from Bryant Dental.
Do not leave the unit on without supervision.
Always follow manufacturer instructions when deciding to heat a material.
Take care when touching the surfaces after use as they may be hot.

Troubleshooting

Disposal Notice

When you plan to dispose of the device, please return it to Bryant Dental for recycling.

The European Union Waste Electrical and Electronic Equipment (WEEE) Directive forbids the disposal of waste electrical and electronic equipment as unsorted municipal waste, requiring that it be collected and recycled or disposed of separately. Hazardous substances are present in electrical and electronic equipment and present potential risks to human health and the environment if disposed of in municipal landfills, which are not designed to prevent the migration of substances into the soil and groundwater.

Compliant with RoHS Directive 2011/65/EU.

Warranty

LIMITED LIABILITY POLICY
Bryant Dental will repair any C-Flo® issue arising from a manufacturing defect for a period of 2 years, without charge. The liability will not exceed the amount you originally
paid for the product. The warranty does not cover defects arising from negligence, product modification, unauthorized repairs, accidental damage, theft, loss, or acts of God.

Parts List:

Applicable Standards:

EN 60601-1:2006+A1:2013+A12:2014
EU-MDR 2017/745

	AXKJ-6
	See SmartBase Reverse Side
	Follow instructions for use
	Do not use it if the package is damaged
	Fragile, handle with care
	This device is not sterile
	Do not dispose
	Keep dry
	Known Contraindications: None
	Temperature limit
	Meets requirements of the Medical Device Directive
	Advena Ltd. Tower Business Centre, 2nd Flr., Tower Street, Swatar, BKR 4013 Malta
	Bryant Dental, The Barns, Hilltop Farm, Lyne Lane, Chertsey, KT16 0AW

Bryant Dental, The Barns, Hilltop Farm, Lyne Lane, Chertsey, KT16 0AW C-Flo®, and Bryant Dental® have registered trademarks in the United Kingdom and Australia.
Registered in England & Wales No. 10396020. Registered in Australia No. 634 752 980

     +44 (0)1932 320064
+44 (0)7990 113723

www.bryant.dental
IFU/UK/0509/1.1
