INSTRUCTIONS
TWO Stereo touch control mini earphone user Manual
The parameters may be different between different models

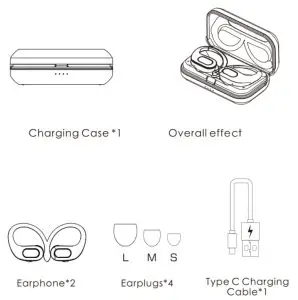

Package Contents

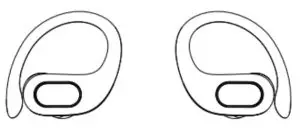

- 1* Wireless earphone

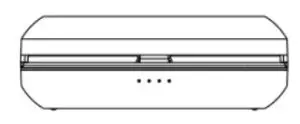

- 1* Charging Case
- 1* Type C Charging Cable
- 1* Pair of additional earplugs (Medium/Small)

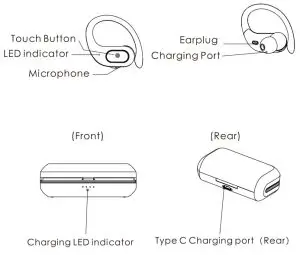

Overview
Earplugs selection
To choose the right size of earplugs in order to get get the best audio experience and comfort please choose the fight earplugs size of wearing.
Function
Status | Function | Operation | Audio interpret | LED flash pattern |
| Power On | Power On | Pickup earphone from casing | Power On | Blue light flashing |
| Touch mode power on | Press MFB button for 3S | |||
| Pairing | Left and right earphine ispairing | Paining or connected | Red and blue LED interval flashing when pairing (One done Right ear blue LED flashing leftLEDoff) | |
| Connection | Find Bluetooth device name in your smart Connected phone | Connection | Blue LED flash the OFF | |
| Disconnect | Disconnected | Red and blue LED interval flashing | ||
| Shutdown earphone | Put earphones in cha ging case to charge | Power off | Charring: Red LED on Charged: LED OFF | |
| Long press5s MFB | Power off | Red and on and OFF | ||
| Charging | For earphone | Type C/DC | 5V/0.5-1A | Red LED flashing |
| For Case | Red LED flashing | |||
| Lower Battery | Less than DC3.5V | Battery low | Red LED flashing | |
| Earphone Reset | Put earphones in charging case | Red LED flashing | ||
| Auto connection | Pickup earphone from casing | Pairing/Connected | Blue LED fast flashing then OFF forconnected | |
| Earphone Memory clear | Touch mode power on the earphones at Red and Blue LED interval flashing status, quickly click the MFB 5 times, and the earphone will auto shutdown, then put the earphones to case to do reset function (Left and Right earphone need single-completed.) | |||
| L earphone | R earphone | |
| Play/Pause | Touch or click once | Touch or click once |
| Previous | Touch Twice | |
| Next | Touch Twice | |
| Vol+ | Touch or click 3 times | |
| Vol- | Touch or click 3 times | |
| Pickup calling/Hold off | Touch or click once | Touch or click once |
| Reject calling | Long Press 1.5s | Long Press 1.5s |
| Siri | Long Press 1.5s | Long Press 1.5s |
| English/Chinese Language change | Click4 times continuous | Click4 times continuous |
SIZE
- Charging case size: L 92*W52*H32mm
- earbuds size: L 45*W39*H30mm
Specification
| Bluetooth Chipset | Ab5616 |
| Bluetooth Version | V5.0 |
| Frequency | 2.402∼2.480GHz |
| Protocol | HSP/HFP/A2DP/AVRCP |
| Wireless Range | 10M |
| Wireless Power | Class2 |
| S/N | 98dB |
| Frequency Band | 20∼20000Hz |
| Voltage input | DC5V/0.5-1A |
| Batter | Earphone:48mAh, Case:1200mAh |
| Charging time | Earphone:35Minutes, Case:1.5 Hours |
| Usage time | 8H |
Potential Problem
| Potential Problem | Solution |
| Appeared disconnected pairing delay signal disconnected etc problem | Please follow Earphone Memory clear to reset |
Thank you very much for purchasing our product. About the latest products, if you need support, you can also email us:[email protected]
