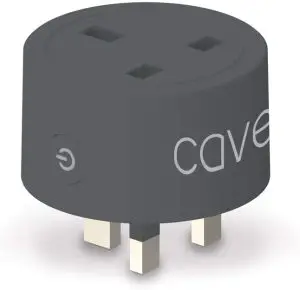

Cave Wireless Smart Plug VHS-008-SP
User Manual
Installation

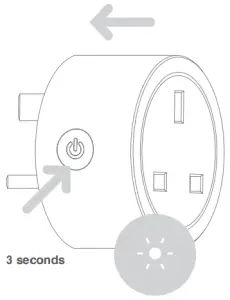

InstallationInstallation Plug the Cave Smart Plug into a compatible socket, ensure the socket is switched on. Press and hold the power button for 3 seconds until the LED indicator starts
flashing to indicate it is in pairing mode.
Pairing

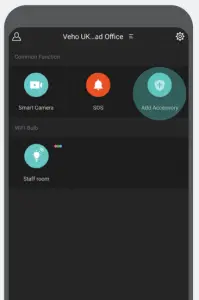

Open the Cave app On the home page select ‘Add Accessory’.

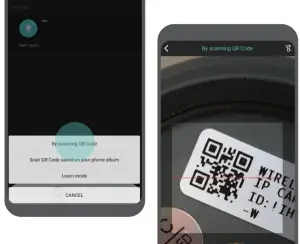

Scan QR Code Using ‘By Scanning QR Code’ scan the QR code on smart plug using the scan window in the app. The plug can also be paired using ‘Learn Mode’.

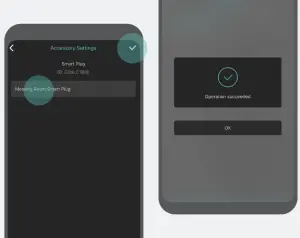

Complete setup To finalize the pairing process name the smart plug and click the tick icon. ‘Operation Succeeded’ will display to indicate the plug is ready to use. Click ‘OK’.
Controls

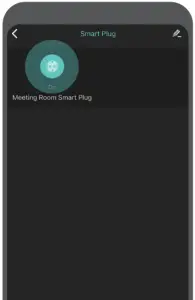

Take control Once installed, you will be able to control the plug through the app. Open ‘System Settings’ and tap the ‘Smart Plug’ option under ‘Accessory Management’. You can view your connected smart plug and switch ON/OFF.
Schedules
Schedules & Timed Tasks Once you have added your smart plug to your Cave system, you will be able to add it to new and existing schedules or timed tasks.
Cave Accessories

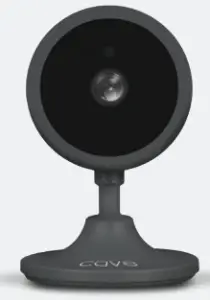

HD Wireless IP Camera
VHS-011-HDC

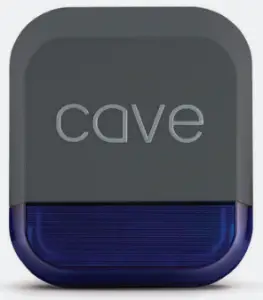

Cave Wireless Outdoor Siren
VHS-006-OS

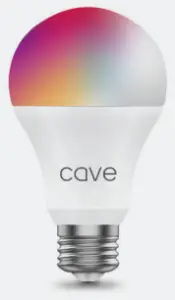

Cave Wireless Smart LED Bulb (E27)
VHS-007-E27
Cave Wireless Smart LED Bulb (E26)
VHS-014-E26
Specifications
| Power rating | MAX 2400W |
| Rated input | AC 110V-240V/50-60Hz/MAX10A |
| Rated output | AC 110V-240V/50-60Hz |
| Working distance | Up to 200m without obstacles |
| Working temp | -10°C~50°C |
| App | iOS & Android |
| Humidity | 90%rh (non-condensing) |
| Transmission | 433.92MHz |
| Dimensions | 58×56 mm |
| Weight | 70g |
Support
For information and support visit our website and use our pop-up chat box.
veho-world.com
EC DECLARATION OF CONFORMITY
Hereby, Veho UK LTD declares that the radio equipment type (VHS-008-SP) is in compliance with Directive 2014/53/EU.
The full text is available at https://veho-world.com/compliance/
Frequency band(s) – 433.92MHz
Maximum radio-frequency power – 13dBm
This symbol, affixed to the product or its packaging, indicates that the product must not be processed as household waste. This product should be correctly disposed of according to your local guidelines for electrical and battery-operated products. Correct disposal of the battery will avoid potential harm to the environment and human health.
For further information regarding the recycling of this product, please contact your local waste recycling center.
