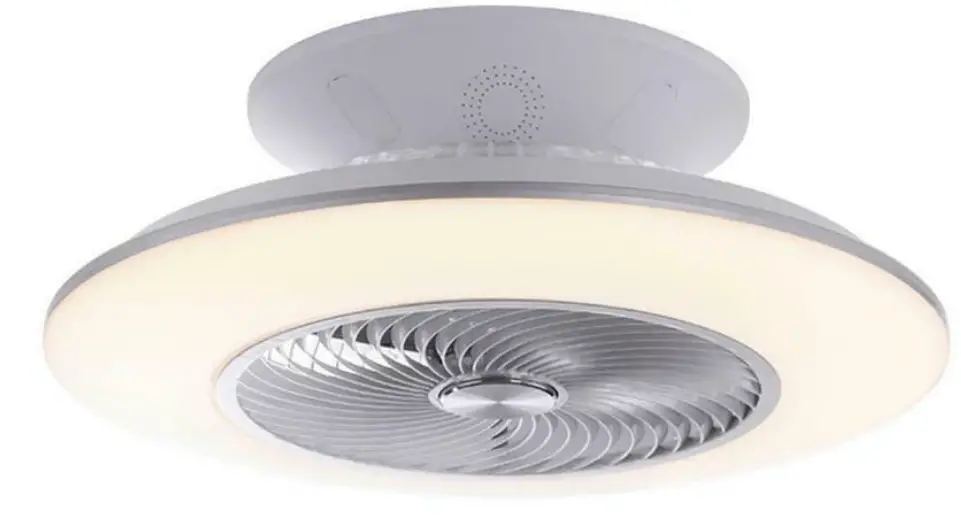

Paul Neuhaus 14445-55 LEONARD Ceiling Light
This product contains a light source of energy efficiency class <F>.

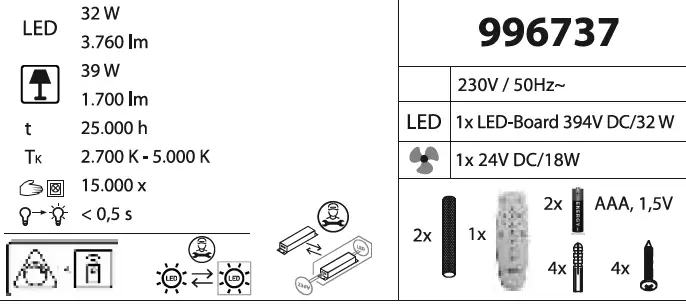

Technical Data

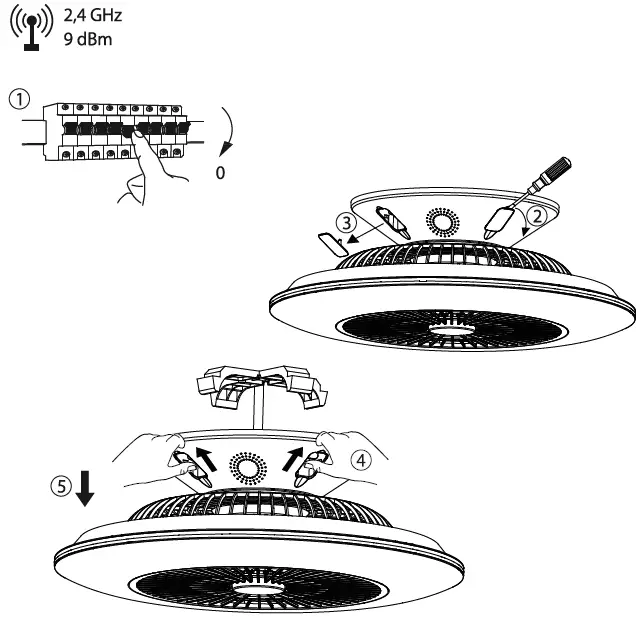

Mounting

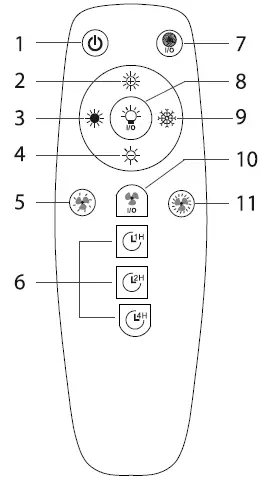

Remote Controls
- All off
- dimming up the brightness
- 5.000 K – 2.700 K
- reduce the brightness
- Fan: min. speed (5 levels)
- Timer
- Ventilator rotating cover: on / off (only when the fan is switched on)
- Light on/ off

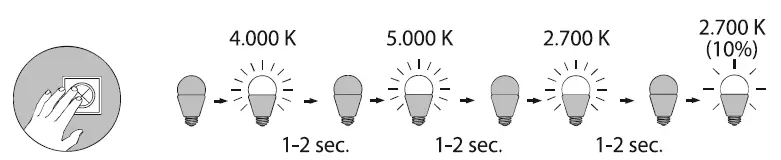

fast switching: 4.000 K / 5.000 K / 2.700 K / 2.700 K (10%) - 2.700 K – 5.000 K
- Fan on (max. speed) I off
- Fan: max. speed (5 levels)

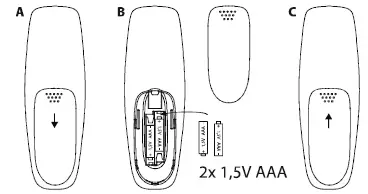

Remote Battery Replacement
Teach the remote control to the light
Switch off the light via the wall switch before teaching.
Press and hold the ON/OFF button, during you switch on the lamp via the wall switch. Within the next few seconds, a beep sounds (2x) and the lamp flashes.
The lamp is taught to the remote control now.
Reset
To reset the lamp, first switch of the lamp via the wall switch. Press and hold the OFF button ( C)) , during you switch on the lamp via the wall switch, The lamp is resented when it beeps (2x) and flashes.
Specifications:
- operation voltage: 3V
- operation current: 17 mA
- remote distance: 10 m
- transmission mode: radio {2,4GHz / 9dBm)
- battery: 2x 1,5V AAA
