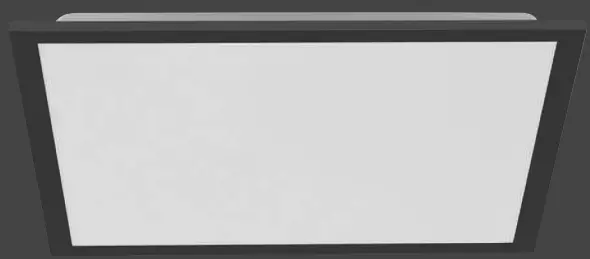

996805 – FLAT
This product contains a light source of energy efficiency class <E>.
| LED | 21 W 2.500 l m |
 | 23,5 W 2.100 lm |
| t | 20.000 h |
| TK | 2.700 – 5.000 K |
 | 15.000 x |
 | < 0,5 s |
   | |
99680 5 | |
| 230 V / 50Hz ~ | |
| LED | 1x LED-Board 85V DC/21 W |
1x  2x  AAA 1,5V 2x 2x  | |
I/O 2.700 K 4.000 K 5.000 K
Operation via wall switch
Memory function:
If you turn off the lamp via wall switch and turn on after >3 seconds the light lights up in the last mode (color temperatur & brightness).
CCT:
The color temperature can be changed in 3 steps by switching on/off several times quickly. (2.700 K / 4.000 K / 5.000 K)
5m
1
2
3
4

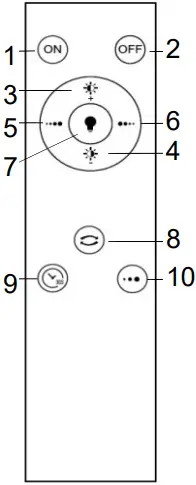

Operation via remote control
- On
- Off
- Increase the brightness from 10% to 100%. Long press for stepless dimming.
- Reduce the brightness from 100% to 10%. Long press for stepless dimming.
- Increase the color temperature
- Reduce the color temperature
- Night light (10% / 2.700 K)
- All lights in the infrared range of the remote control will be set to the same color temperature which was selected lastly with the remote control.
- Timer (light turns off after 30 sec.)
- 3-step color temperature(2.700 K / 4.000 K / 5.000 K)
Note:
An unlimited number of lights can be controlled with the remote control, as long as they are in the infrared range.
LeuchtenDirekt GmbH
Olakenweg 36 • D-59457 Werl
+49(0)2922 9721 9290
[email protected]
www.leuchtendirekt.de
