Jandy TC3 Flush Mount Pool/Spa Return Jet Installation Guide
TC3 Flush Mount Pool/Spa Return Jet
CAUTION
This product must be installed by a contractor who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed where such state or local requirements exists.

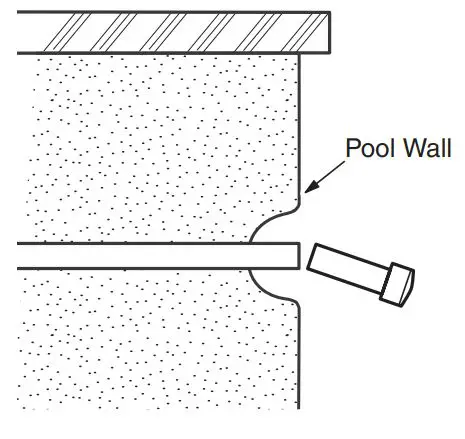

- After the 1½” return line is plumbed through shell and pressure tested, cut pipe flush with the pool wall.

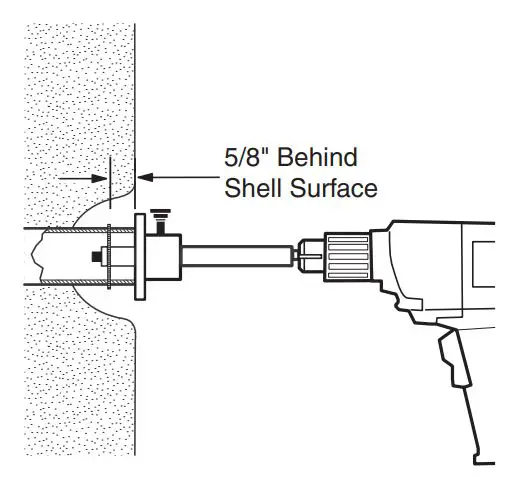

- . Use Inside Pipe Cutter (part #5-17-4) to cut pipe back 5/8″ behind shell surface.
- Prime pipe and fitting. With protective cap attached, glue fitting into pipe, positioning for thickness of finish material.
- After troweling the final finish, use needle-nose pliers (or ThreadCare Tool, part #4-17-4) to remove the protective cap turning clockwise until cap separates or breaks off.
- At startup, select and insert the applicable restrictor nozzle if required for the installation.
©2021 Zodiac Pool Systems LLC. All rights reserved. Zodiac® is a registered trademark of Zodiac International, S.A.S.U. used under license. All other trademarks referenced herein are the property of their respective owners. TL-1317 D
